8 Micro850 48 Point Programmable Controllers
Publication 2080-IN008C-EN-P - August 2017
Overview
The Micro850 48-point controller is an expandable brick style controller with embedded inputs
and outputs. It can accommodate up to five plug-in modules and accommodates any 24V DC
output power supply that meets minimum specifications such as the optional Micro800 power
supply, 2080-PS120-240VAC.

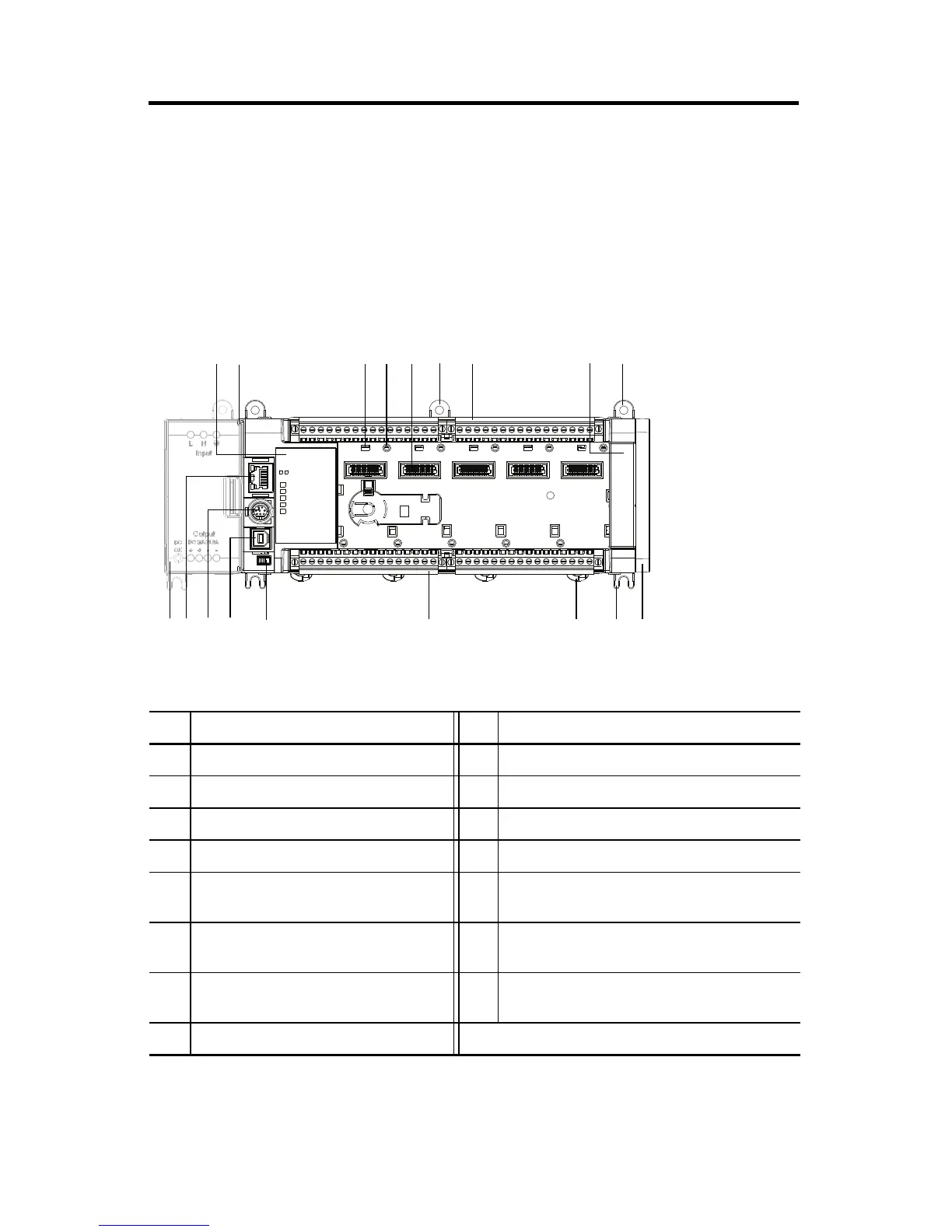

Controller Overview
Controller Description
Description Description
1 Status indicators 9 Expansion I/O slot cover
2 Optional power supply slot 10 DIN rail mounting latch
3 Plug-in latch 11 Mode switch
4 Plug-in screw hole 12 Type B connector USB port
5 40 pin high speed plug-in connector 13 RS232/RS485 non-isolated combo
serial port
6 Removable I/O terminal block 14 RJ-45 EtherNet/IP connector (with
embedded yellow and green LEDs)
7 Right-side cover 15 Optional AC power supply
(for example: 2080-PS120-240VAC)
8 Mounting screw hole / mounting foot
45915
1
2
3
4
5
8
6
8
7
9
8
10
611
12
13
14
15
