Allen-Bradley Micro850 User Manual

12 Micro850 24-Point Programmable Controllers
Publication 2080-IN007A-EN-P - September 2012

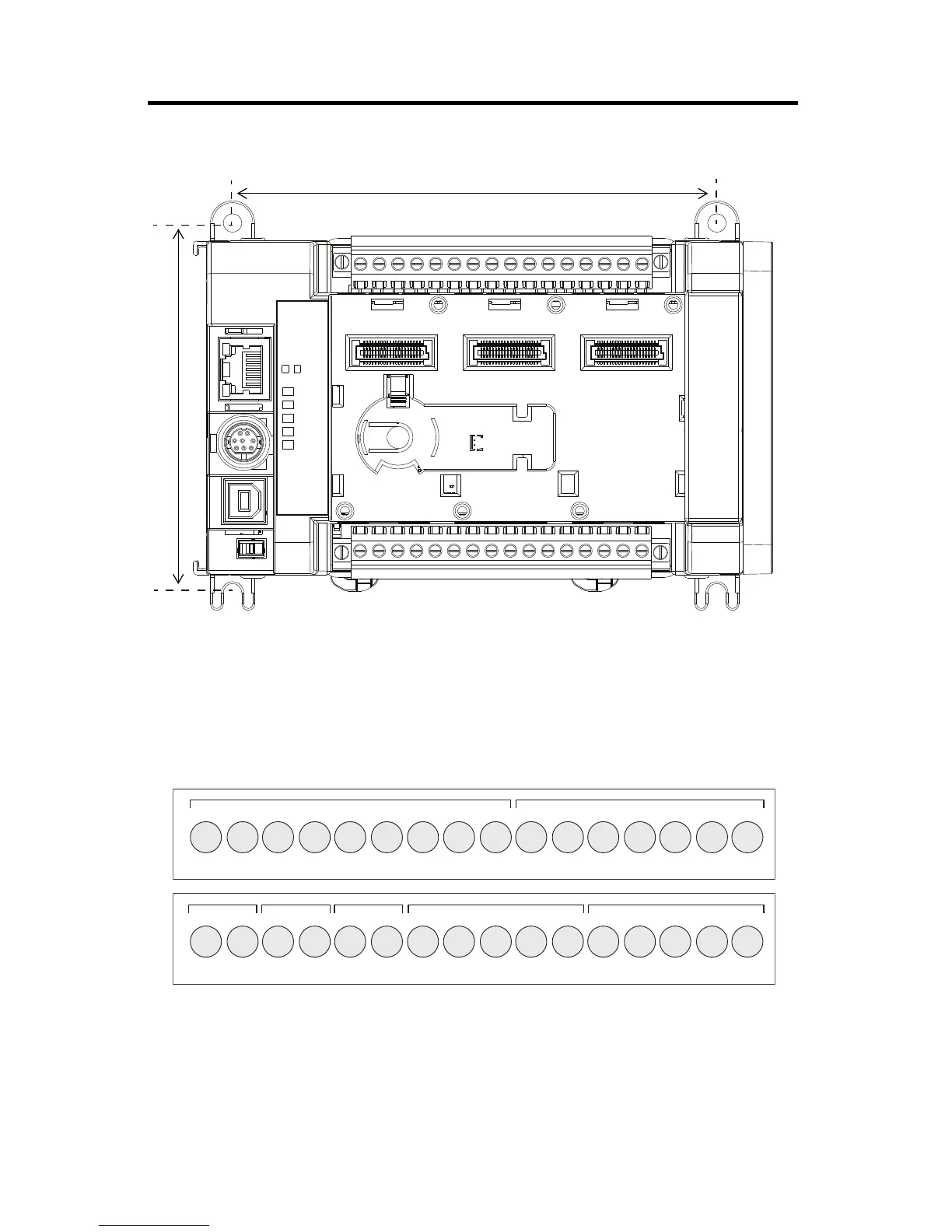

Panel Mounting Dimensions
Wire the Controller
2080-LC50-24AWB/2080-LC50-24QWB
45913
131 mm (5.16 in.)
100 mm (3.94 in.)
I-00
COM0 I-01
I-02
I-03
I-04
I-05
I-06 COM1
I-07
I-09
I-08
123456789101112
+DC24 CM0
O-00-DC24
CM1
O-01
CM2
O-02 O-04
O-03
CM3
O-05
123456789101112
I-11
I-10
I-13
I-12
13 14 15 16
O-07
O-06
O-09
O-08
13 14 15 16
45019
Input Terminal Block
Output Terminal Block
