Allen-Bradley PanelView Plus 1000 Technical Data

Rockwell Automation Publication 2711P-TD001D-EN-P - February 2011
10 Wiring and Grounding Guidelines for PanelView Plus Terminals

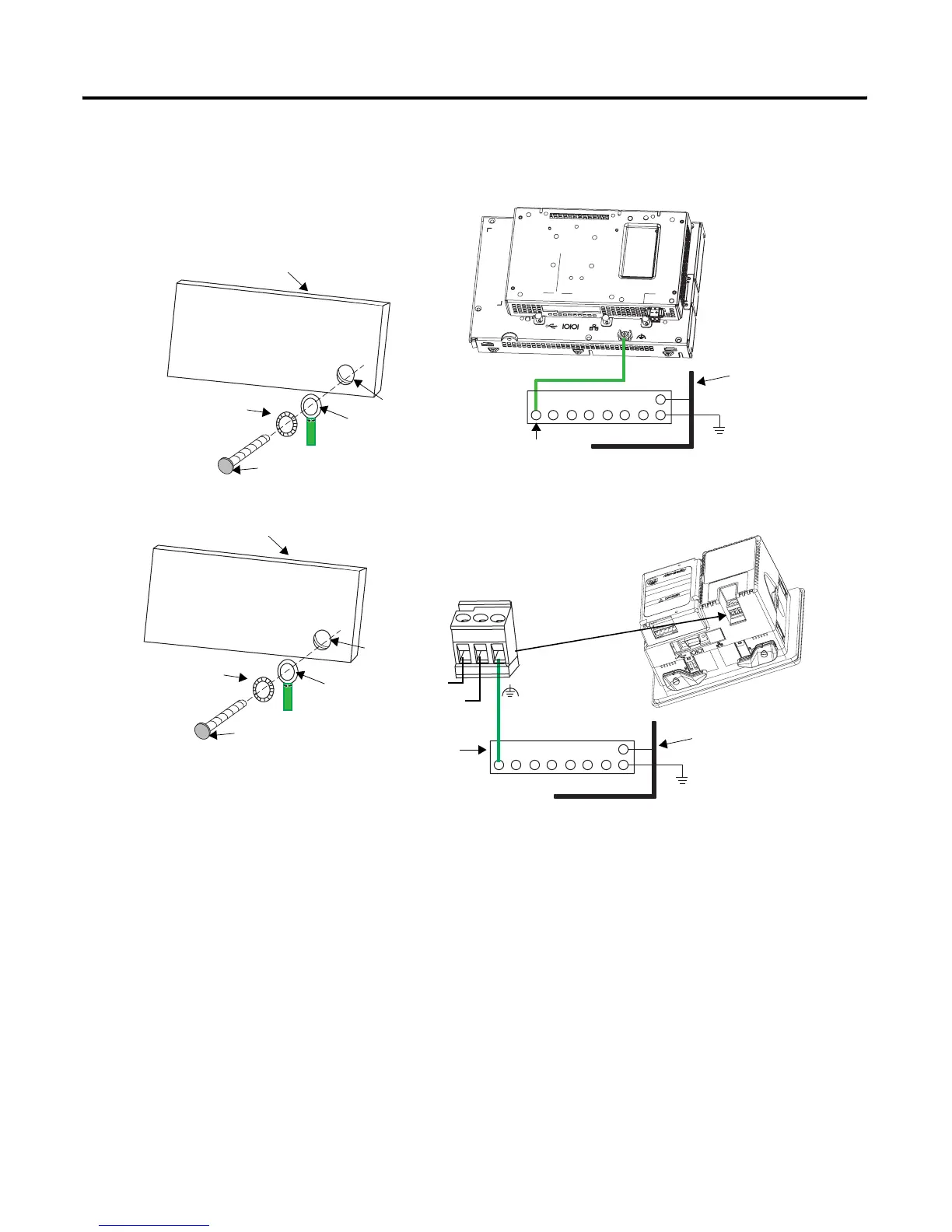

Figure 2 - Functional Earth Connection for 700 to 1500 Nonisolated DC Terminals
Figure 3 - Functional Earth Connection for 400 and 600 DC Terminals
Enclosure Wall
To Grounding Electrode System
Tapped Hole
Ground Lug
Bolt
Star Washer
Ground Bus
Ground Bus
Functional Earth/Ground to Ground Bus
Enclosure Wall
To Grounding Electrode System
Tapped Hole
Ground Lug
Bolt
Star Washer
DC +
DC -
Functional Earth
Ground Bus
Ground Bus

Allen-Bradley PanelView Plus 1000 Specifications

General

Display Size	10.4 inches
Resolution	640 x 480 pixels
Touchscreen	Analog resistive
Operating System	Windows CE
Memory	64 MB RAM
Storage	64 MB Flash
Communication Ports	Ethernet, RS-232, USB
Input Voltage	24V DC
Display Type	Color TFT
Processor	XScale
Enclosure	NEMA 4X
Operating Temperature	0°C to 50°C
