Allen-Bradley PanelView Plus 1000 Technical Data

Rockwell Automation Publication 2711P-TD001D-EN-P - February 2011
30 Wiring and Grounding Guidelines for PanelView Plus Terminals
Isolated DC PanelView Plus Terminals
The isolated DC PanelView Plus terminals can be used in a system with other
DC equipment, powered by a single DC power source.

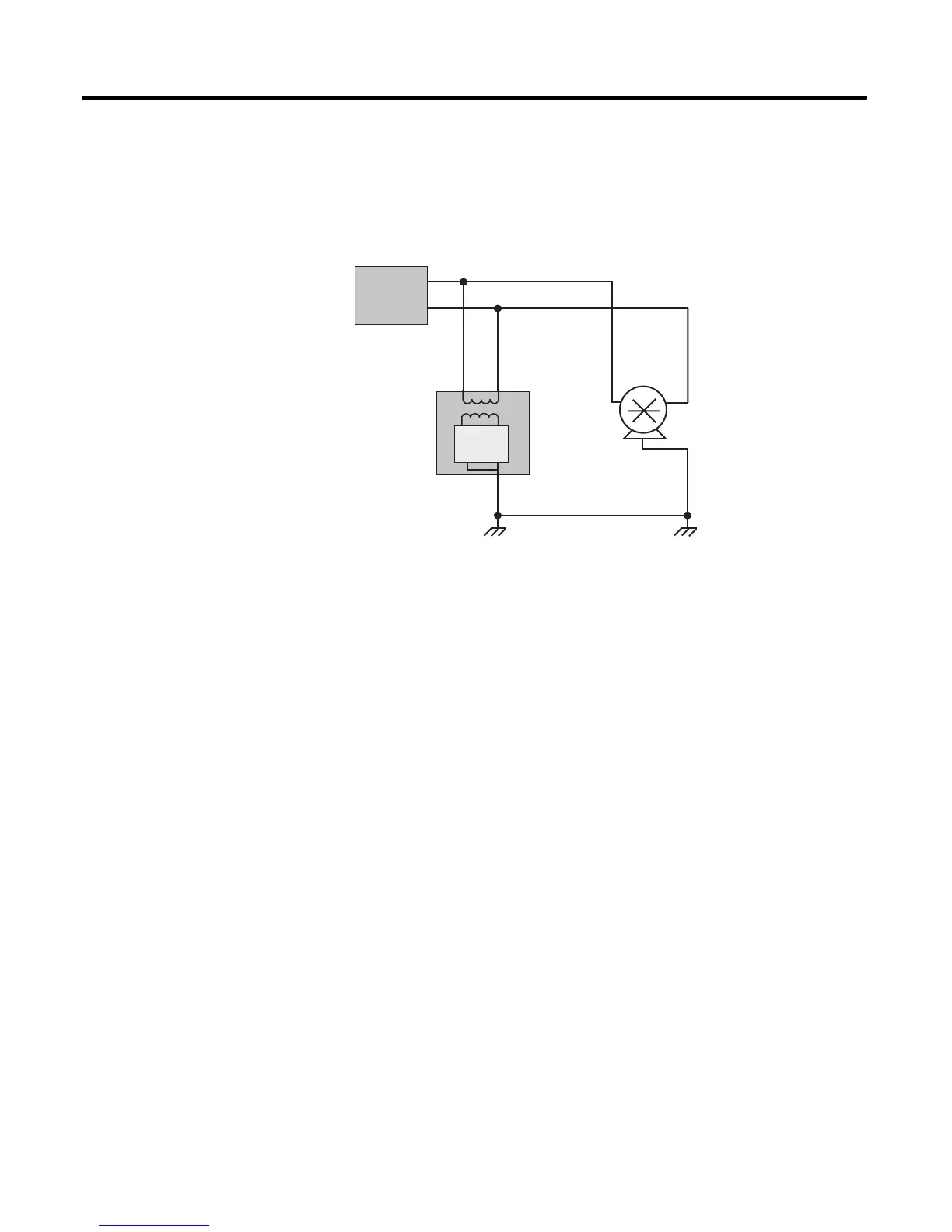

Single Power Supply with Isolated DC Terminal
AC/DC Power Supply
Circuitry
DC+ DC-
+24V DC
Power
Common
DC Motor,
Solenoid
Isolated
PanelView Plus Terminal
Common Tied
to Earth

Allen-Bradley PanelView Plus 1000 Specifications

General

Display Size	10.4 inches
Resolution	640 x 480 pixels
Touchscreen	Analog resistive
Operating System	Windows CE
Memory	64 MB RAM
Storage	64 MB Flash
Communication Ports	Ethernet, RS-232, USB
Input Voltage	24V DC
Display Type	Color TFT
Processor	XScale
Enclosure	NEMA 4X
Operating Temperature	0°C to 50°C
