2-22 Drawing a Circuit with Pico
Set “10 Seconds”
Connect Timing Relay Contact to New Output Relay

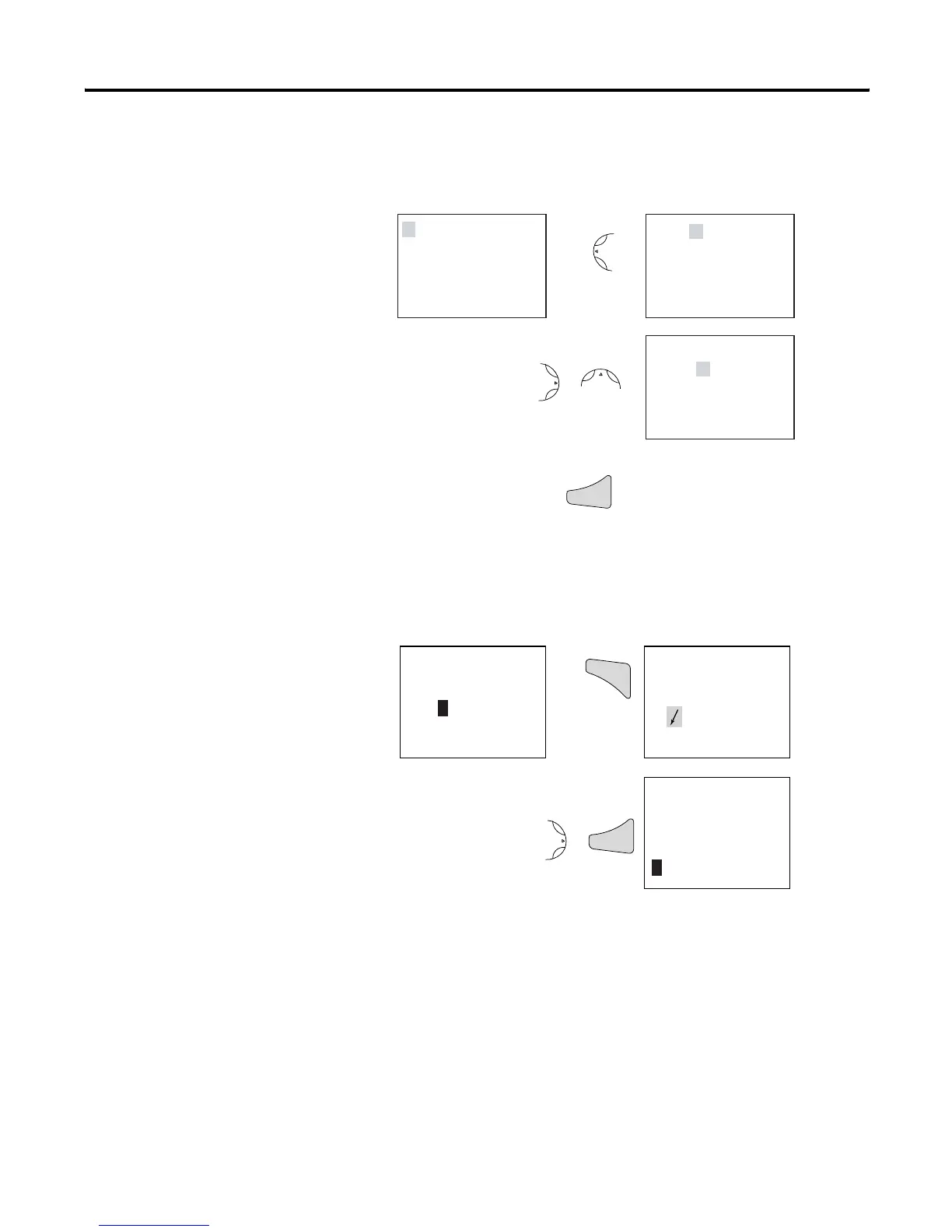

Change Pico to RUN to test the program. Test the circuit as shown for
the first example. To display and access the parameters for the timing
relay and change the time value in RUN mode, position the cursor in
the circuit diagram on the “T” of “T1” and press Ok.
T1 X
S 00.00
TRG
RES
Ok
+
T1 X
S 00.00
TRG
RES
+
T1 X
S 10.00
TRG
RES
+
2 X
2 X
back to circuit diagram
I1-I2----{M1
I1-I2----{M1
I1-I2----{M1
M1-------TT1
M1-------TT1
M1-------TT1
T1
T1
T1-------{Q1
Alt
Ok
3 X
3 X
