Rockwell Automation Publication 750-IN001O-EN-P - October 2014 215
Power Wiring Chapter 4

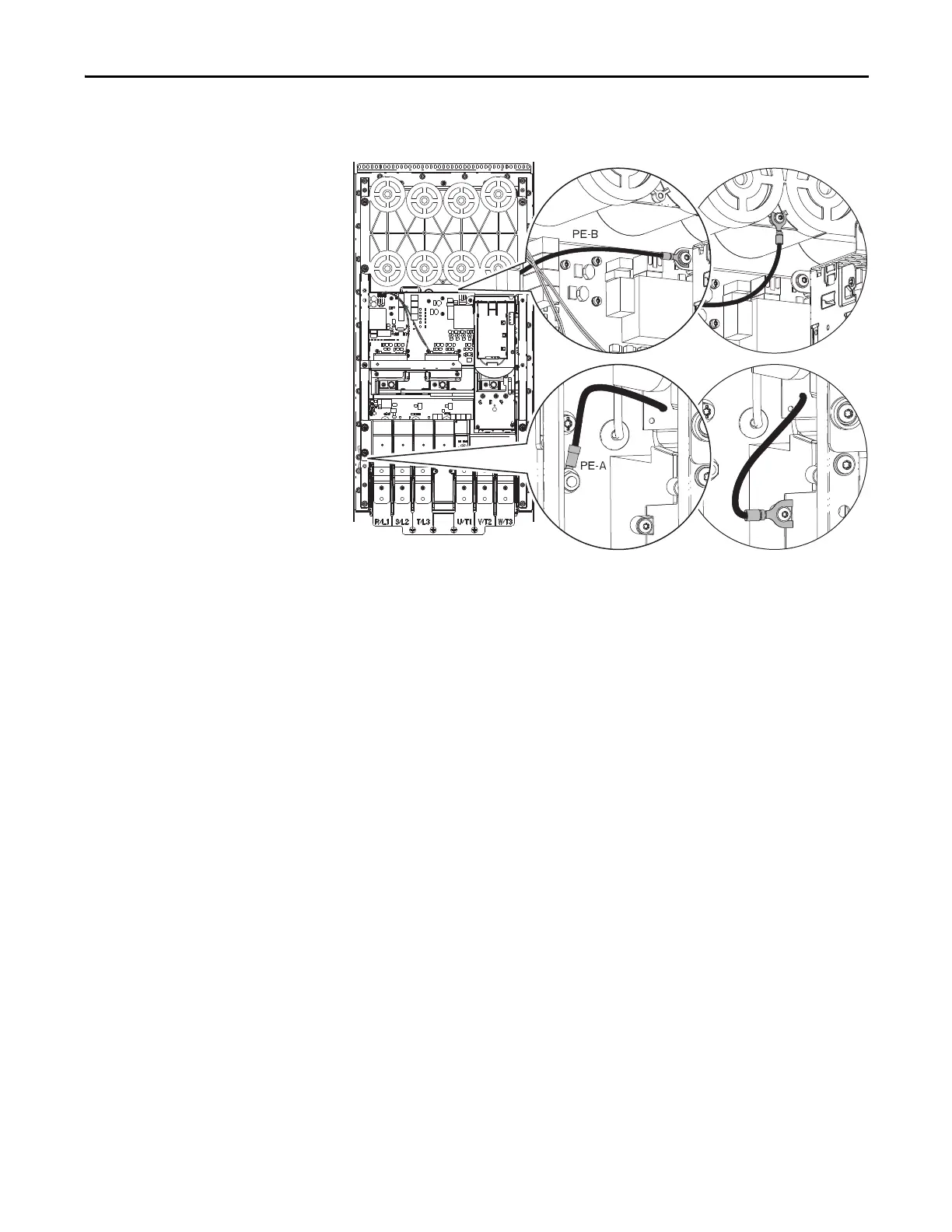

Figure 118 - Wall Mount Frame 7 Jumper Wire Locations
When jumper wires are connected:
Recommended torque (screws and nuts) = 1.36 N•m (12.0 lb•in)
Recommended hex socket = 7 mm
Recommended screwdriver = T20 Hexalobular
Disconnected
Connected
MOV
Common Mode
