I/O Wiring Chapter 5

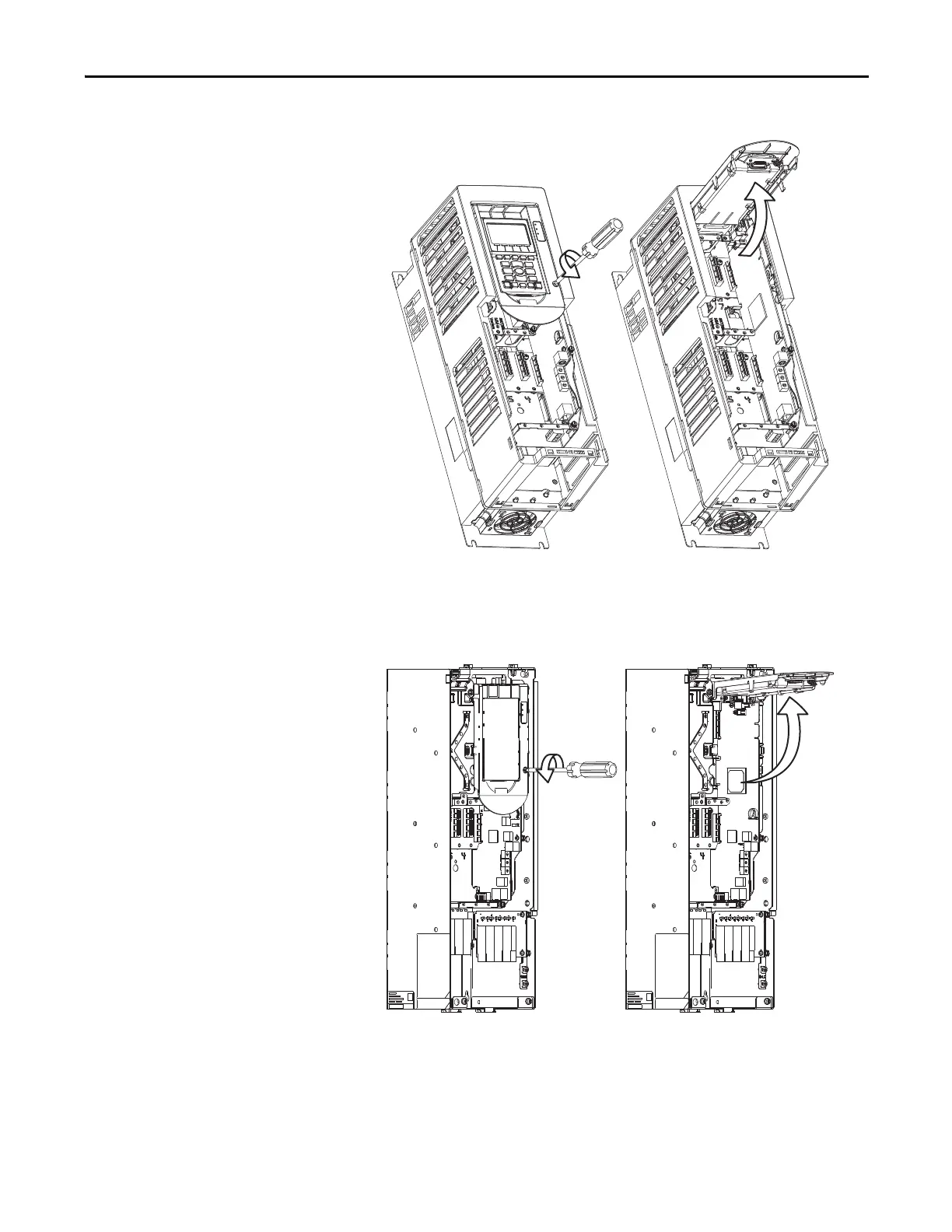

Wall Mount Frames 2…7
– Loosen the retention screw.
– Lift the cradle until the latch engages.
Floor Mount Frames 8…10
– Loosen the retention screw.
– Lift the cradle until the latch engages.
