Chapter 5 I/O Wiring
Wiring Examples - Dual Incremental Encoder Option Module Connections

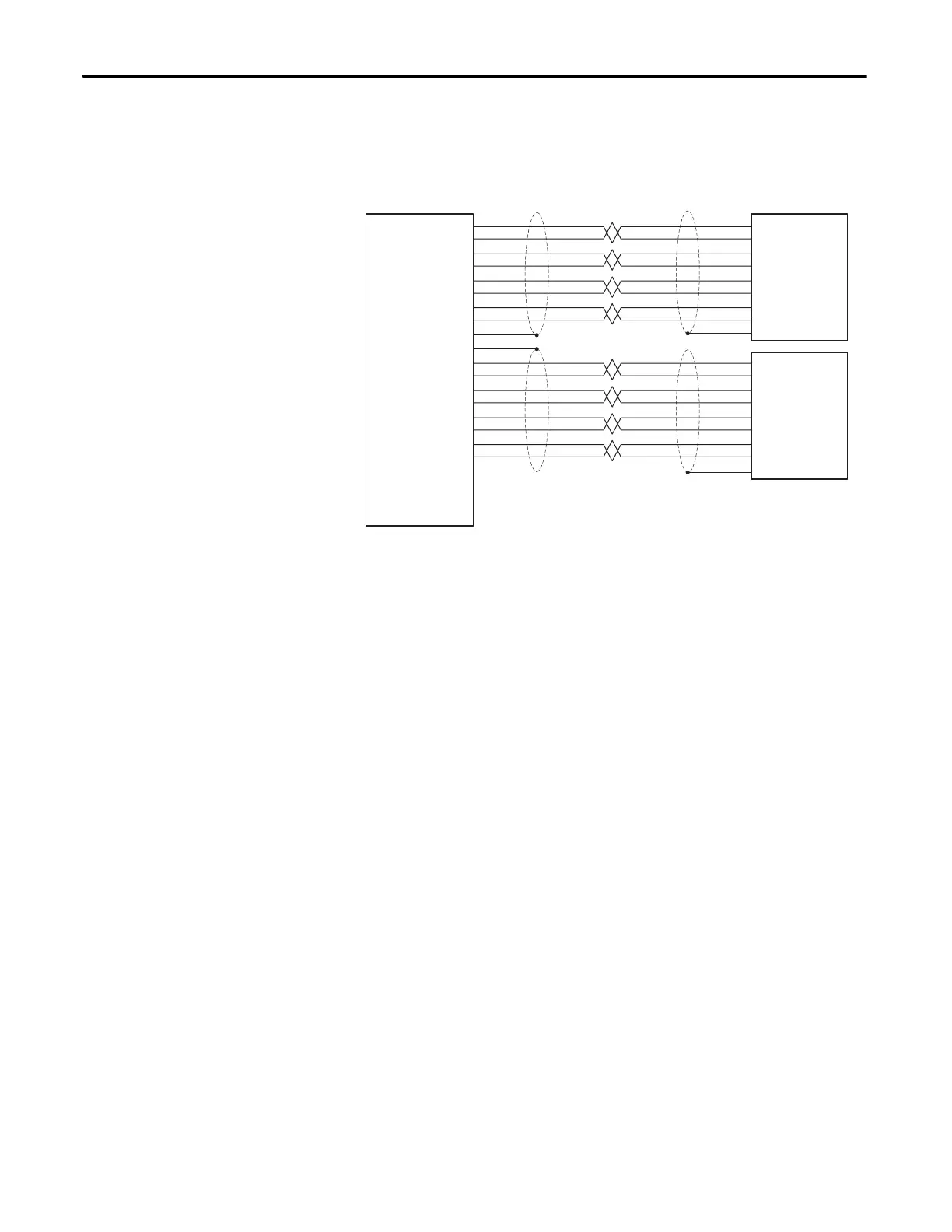

Figure 139 - Differential Dual Channel with Z Channel
Dual Incremental Encoder
Option Module TB
Primary
Encoder TB
Enc +12V
ES
EC
0A
0A-
0B
0B-
0Z
Sd
Sd
ES
EC
1A
1A-
0Z-
1B
1B-
Secondary
Encoder TB
1Z
1Z-
24
24C
Hm
HmC
Enc Ret
Enc A
/Enc A
Enc B
/Enc B
Enc Z
/Enc Z
Shield
Enc +12V
Enc Ret
Enc A
/Enc A
Enc B
/Enc B
Enc Z
/Enc Z
Shield

Allen-Bradley PowerFlex 20-750-20COMM Specifications

General

Category	Controller
MPN	20-750-20COMM
Communication Protocol	EtherNet/IP
Model	20-750-20COMM
Control Method	V/Hz, Sensorless Vector Control
Enclosure Type	Open
Operating Temperature	-20…50 °C (-4…122 °F)
Storage Temperature	-40…70 °C (-40…158 °F)
Humidity	5% to 95% (non-condensing)
