46 Rockwell Automation Publication 750-IN001O-EN-P - October 2014
Chapter 3 Lift and Mount the Drive
Position the Wiring Bay

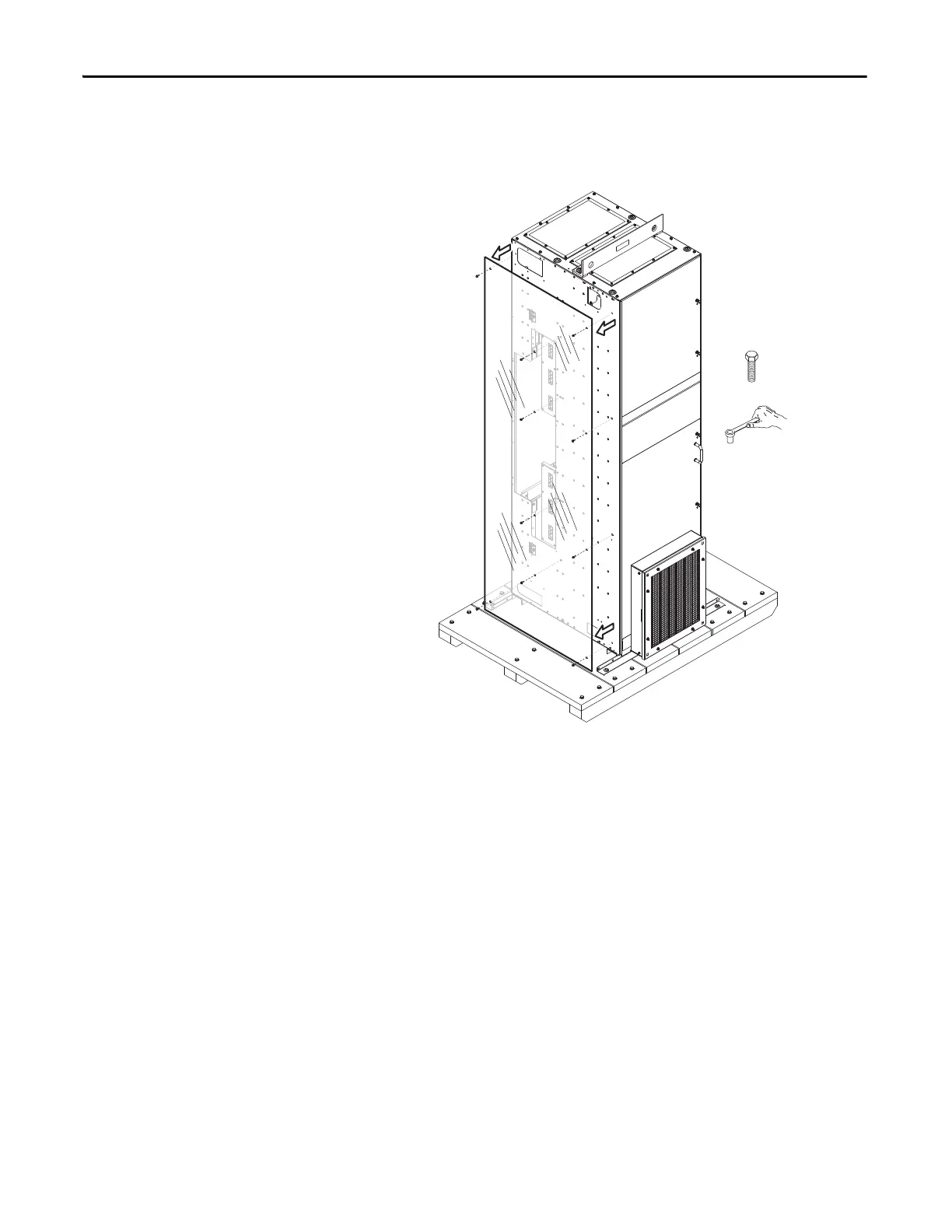

6. Remove and discard the screws holding the protective panel against the
left side of the wiring bay.
7. Remove and discard the protective panel.
M6 x 13
10 mm
IP54, NEMA 12 Enclosure Rating Shown
