Rockwell Automation Publication 750-IN001O-EN-P - October 2014 103
Lift and Mount the Drive Chapter 3

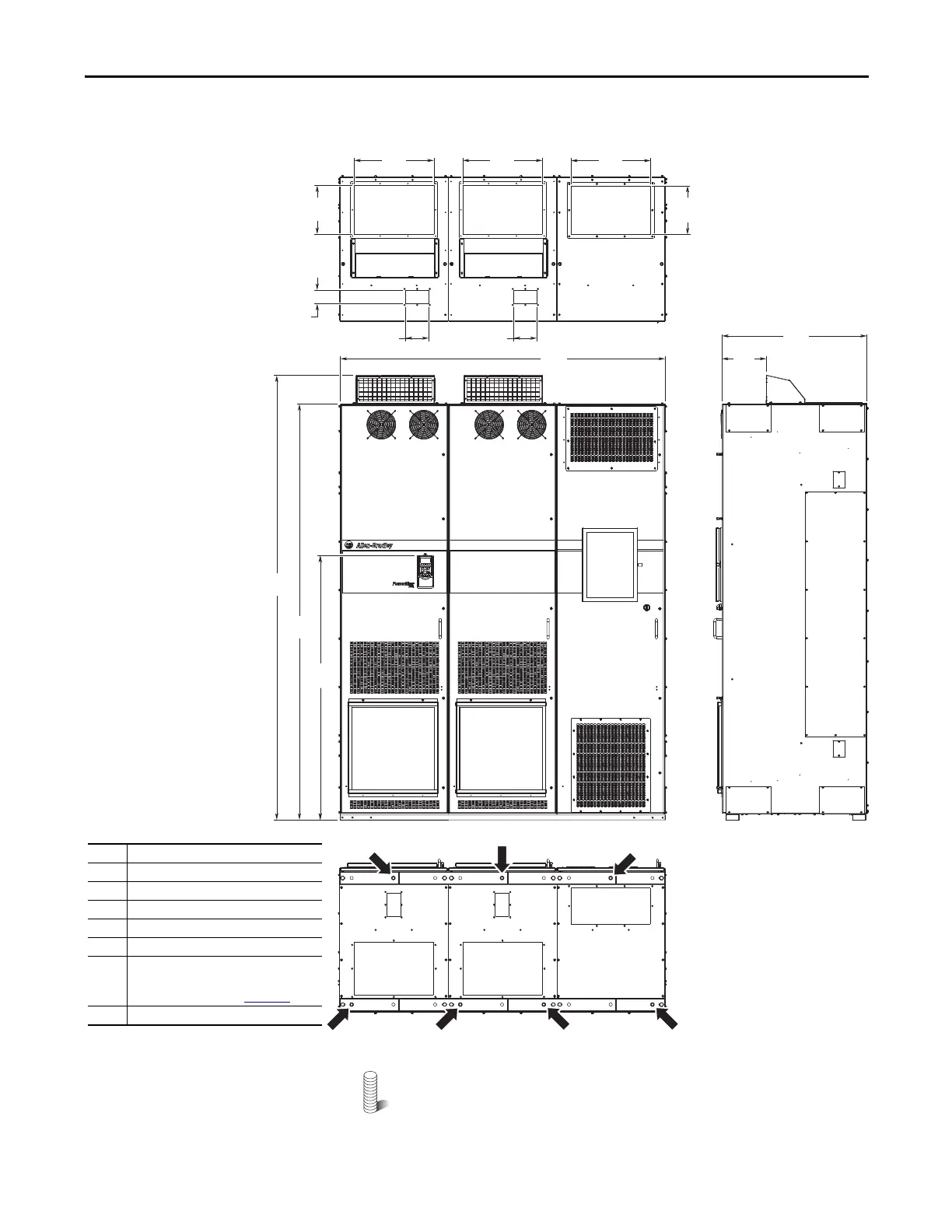

Figure 64 - IP20, NEMA/UL Type 1, MCC Style Cabinet, Floor Mount Frame 9
Enclosure Code L, P, W - 800 mm Deep Drive with Cabinet Options Bay.
M12 (1/2 in.) Property Class 8.8 anchoring hardware recommended to
fasten the drive cabinet through its internal mounting angle to the
foundation. Anchor bolts may be pre-located and embedded in the
foundation prior to instillation.
1800
(70.9)
440
(17.3)
440
(17.3)
2453
(96.6)
2300
(90.6)
800
(31.5)
240
(9.4)
➊➊
440
(17.3)
➊
➐
270
(10.6)
270
(10.6)
1464
(57.6)
➌
➍
➏
➋
127
(5.0)
➋
127
(5.0)
76
(3.0)
➎
No. Description
➊ Power wiring conduit plates.
➋ Control wiring conduit plates.
➌ Optional exhaust hood.
➍ Optional HIM.
➎ Option bay disconnect switch access door.
➏ Interlock override switch.
For instructions and precautions refer to the
Hardware Service Manual, 750-TG001
.
➐ Recommended seven-hole anchoring.
BOTTOM
TOP
