130 Rockwell Automation Publication 750-IN001O-EN-P - October 2014
Chapter 3 Lift and Mount the Drive
The Roll-out Cart can be adjusted for both reach and height.

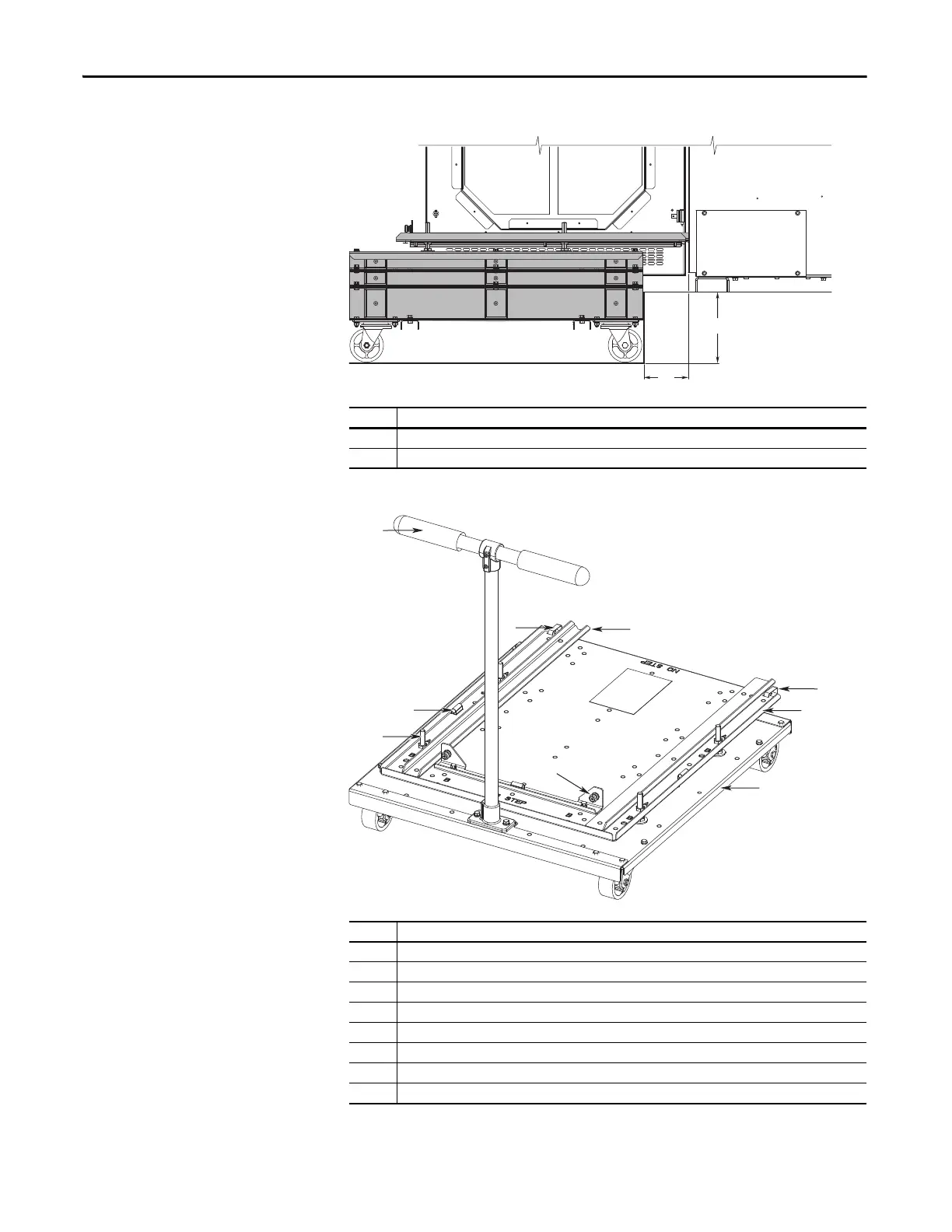

Figure 84 - Roll-out Cart Features
No. Description
➊ Adjustment for Curb Offset/Reach: 0…114 mm (0…4.5 in.)
➋ Adjustable Curb Height: 0…182 mm (0…7.2 in.)
No. Description
➊ Threaded studs and nuts allow precision height and leveling adjustments (four positions)
➋ Bubble levels help with fine adjustment of the cart deck (three positions)
➌ Handle
➍ Retaining clips positively engage the cart with the drive cabinet (two positions)
➎ Alignment track keeps the drive in the correct position
➏ Cart deck
➐ Cart chassis
➑ Drive stop and capture screws
➏
➎
➑
➋
➍
➌
➊
➐
➍
