Rockwell Automation Publication 750-IN001O-EN-P - October 2014 131
Lift and Mount the Drive Chapter 3

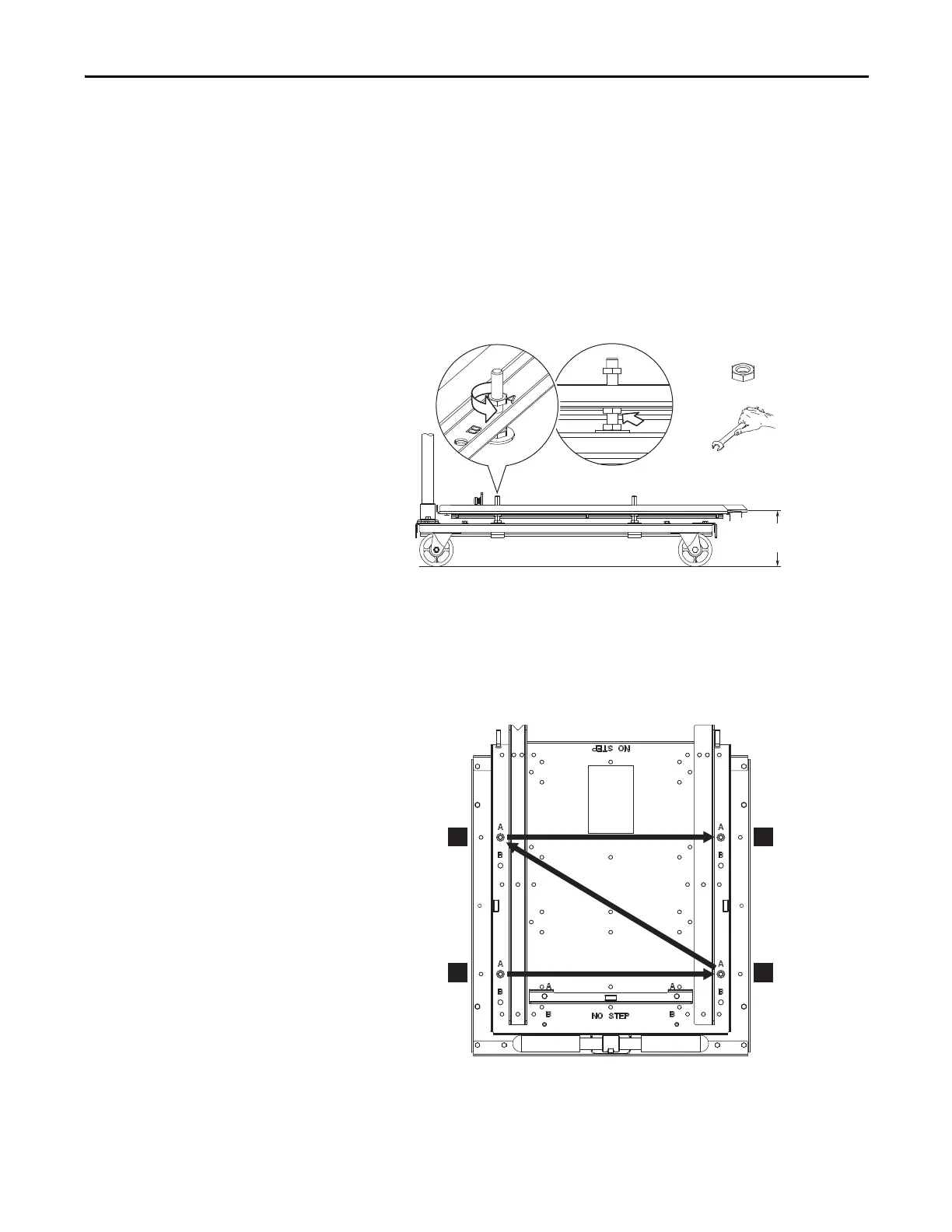

Adjust Roll-Out Cart Height Using Threaded Studs and Nuts
The height of the Roll-out Cart deck can be adjusted using the threaded leveling
studs and nuts.
• Maximum height = 155.5 mm (6.1 in.)
• Minimum height = 116 mm (4.6 in.)
• Adjustment range = 30 mm (1.2 in.) up, 9.5 mm (0.4 in.) down from the
factory setting of 125.5 mm (4.9 in.)
1. Loosen and back off the top nuts on the four threaded leveling studs ➊.
2. Turn the bottom supporting nuts to raise or lower the cart deck ➋. Right
hand nut rotation lowers the deck. Left hand rotation raises the deck.
Make uniform half-turn adjustments to each of the four threaded studs in
an alternating pattern to help prevent binding and maintain a level
orientation.
3. At the desired height, verify the deck is level using the three bubble levels.
4. Tighten the top nuts.
125.5 +30.0/-9.5
(4.9 +1.2/-0.4)
➊
➋
M10 x 1.5
17 mm
1
3
2
4
