Power Wiring Chapter 4

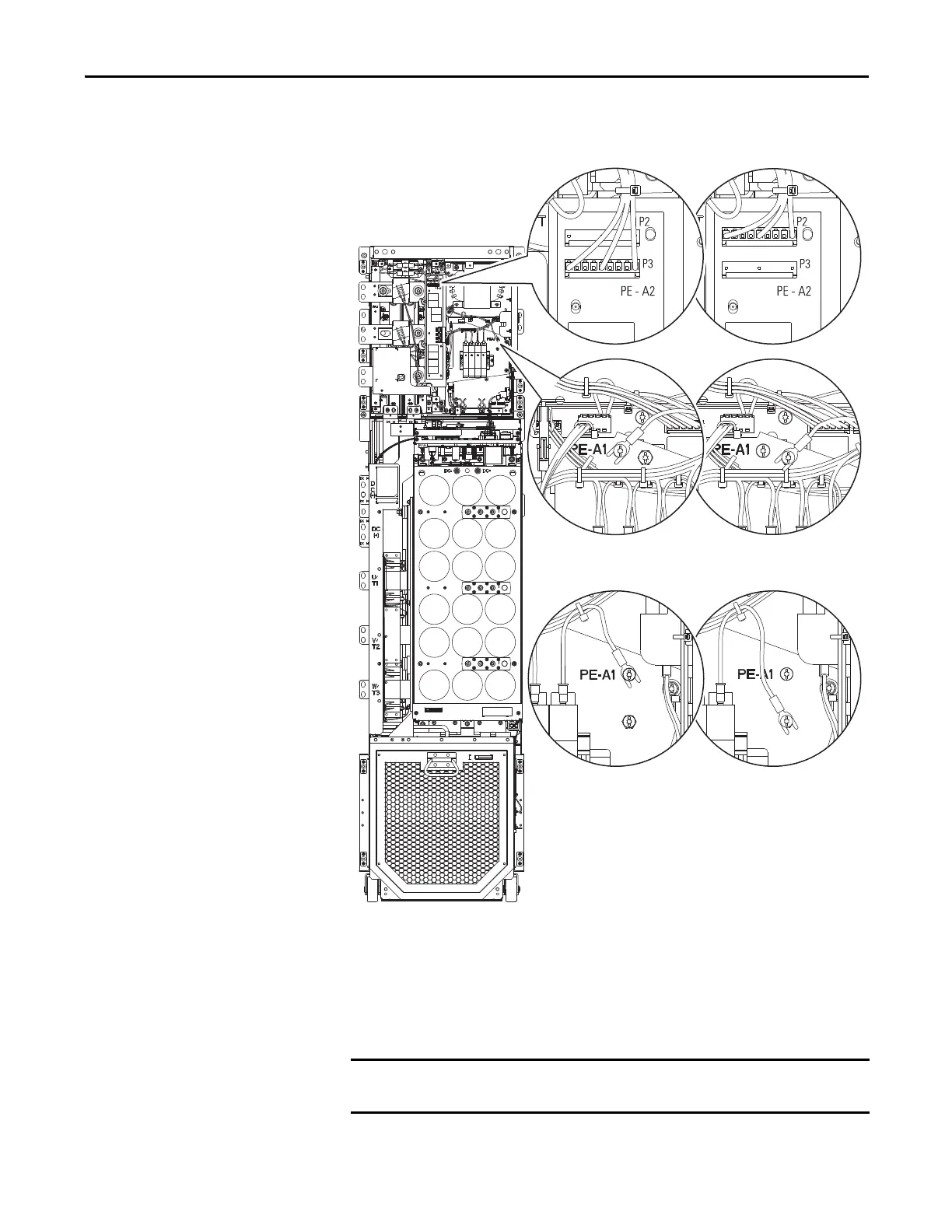

Figure 120 - Drive Assembly PE-A1 MOV and PE-A2 Input Filter Caps Jumper Location
When the PE-A1 jumper wire is connected:
• Recommended torque = 1.8 N•m (16.0 lb•in)
• Recommended screwdriver = T20 Hexalobular
IMPORTANT
PE-A1 and PE-A2 jumper are only used by three-phase input drive assemblies
and are not applicable to Common DC Input drives assemblies.
DisconnectedConnected
PE-A1 and GND positions on early production drives.
DisconnectedConnected
