Rockwell Automation Publication 750-IN001O-EN-P - October 2014 51
Lift and Mount the Drive Chapter 3

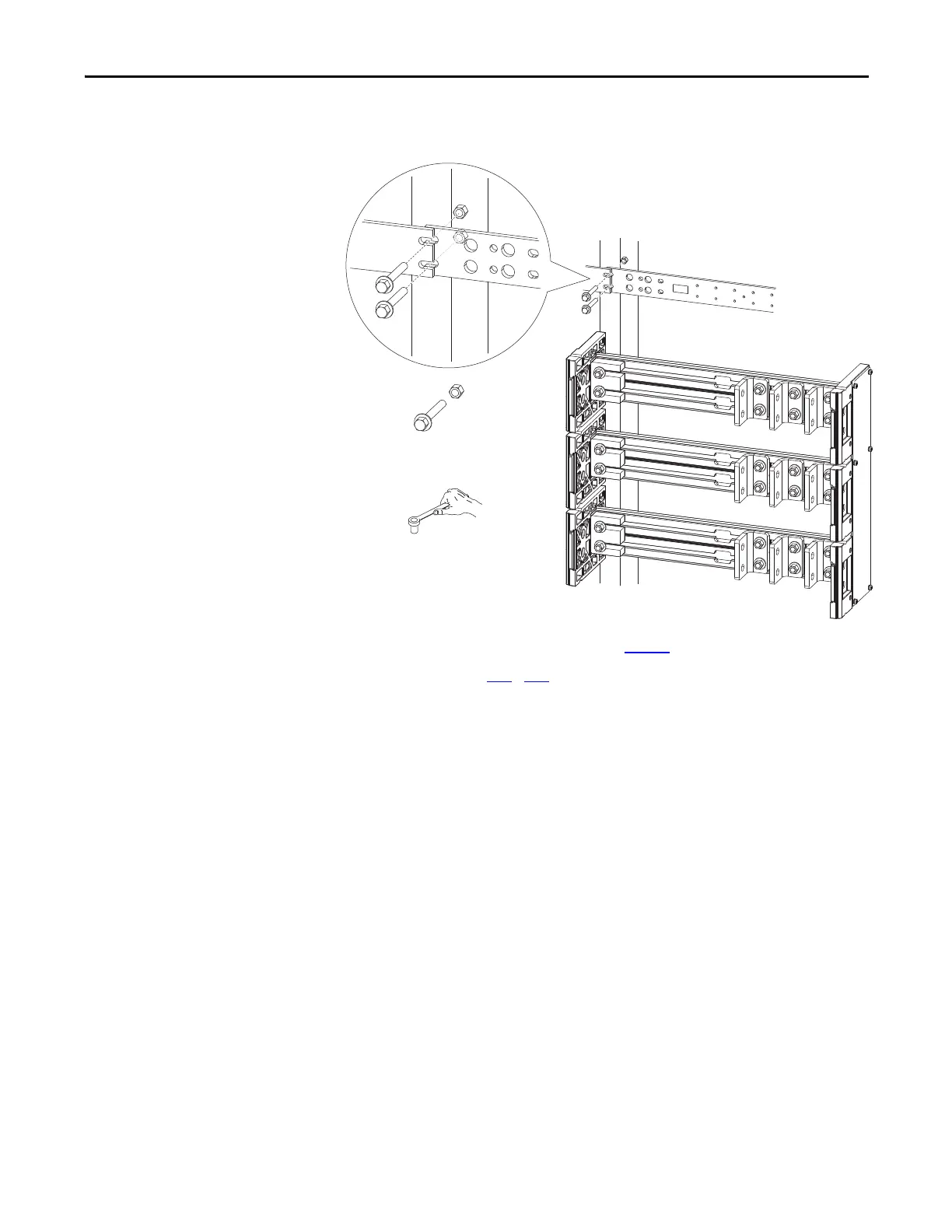

17. Use the M6 x 40 bolts and flange nuts to secure the upper and lower PE
bus bars to the cabinet bracket.
18. Reinstall the L-brackets removed in step 14
.
Refer to pages 162
166 for torque requirements and addition L-bracket
and wiring details.
M6-40
7.3 N•m (65 lb•in)
10 mm
