Lift and Mount the Drive Chapter 3

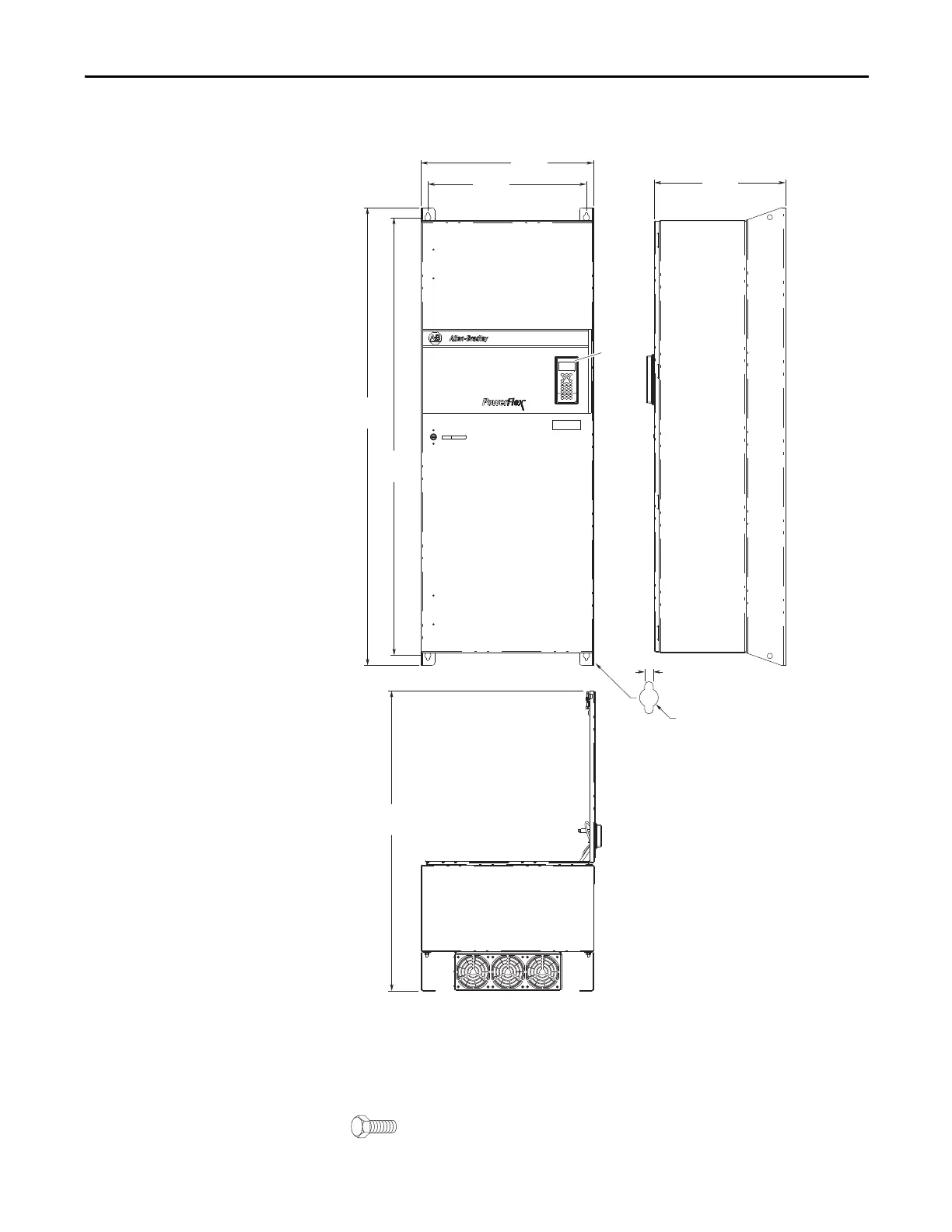

Figure 29 - IP54, NEMA/UL Type 12, Wall Mount Frame 7

➊ Human Interface Module, Catalog Number 20-HIM-C6S, required to meet

enclosure rating.

Dimensions are in millimeters and (inches).

M10 (7/16 in.) mounting hardware recommended.

558.8

(22.00)

609.6

(24.00)

464.8

(18.30)

1614.0

(63.54)

1543.1

(60.75)

10.5 (0.41)

ø22.0 (0.87)

1058.4

(41.67)

➊
