74 Rockwell Automation Publication 750-IN001O-EN-P - October 2014
Chapter 3 Lift and Mount the Drive

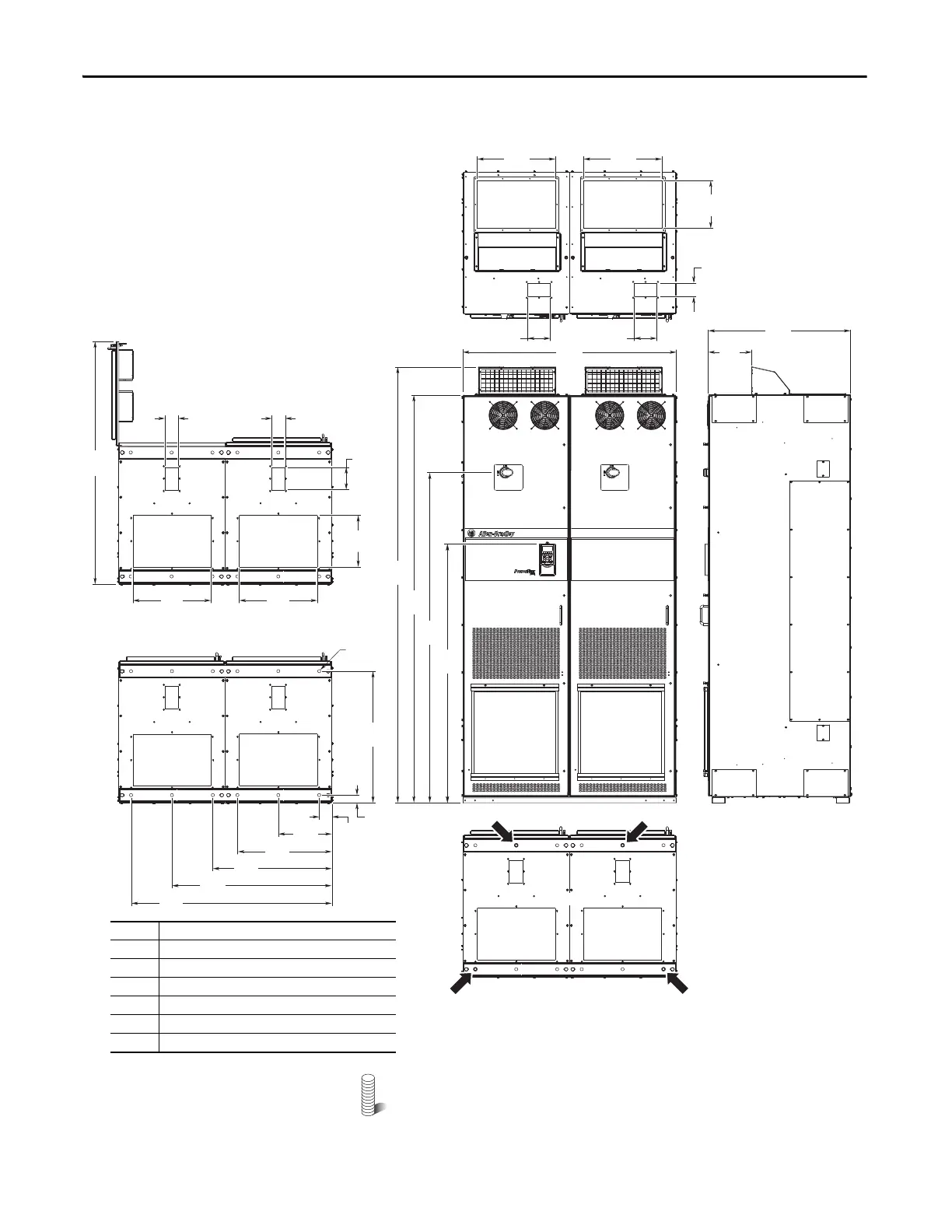

Figure 36 - IP20, NEMA/UL Type 1, MCC Style Cabinet, Floor Mount Frame 9
(Enclosure Codes L, P, W)
M12 (1/2 in.) Property Class 8.8 anchoring hardware recommended to
fasten the drive cabinet through its internal mounting angle to the
foundation. Anchor bolts may be pre-located and embedded in the
foundation prior to instillation.
1200
(47.2)
800
(31.5)
240
(9.4)
1374
(54.1)
300
(11.8)
531
(20.9)
669
(26.3)
ø18.0
(0.71)
742
(29.2)
43
(1.7)
69
(2.7)
76
(3.0)
76
(3.0)
127
(5.0)
➊
➋
➊
➋
900
(35.4)
1131
(44.5)
440
(17.3)
270
(10.6)
➊
440
(17.3)
➊
➍
➍
2453
(96.6)
2300
(90.6)
1862
(73.3)
➏
➎
1464
(57.6)
➌
292
(11.5)
292
(11.5)
440
(17.3)
440
(17.3)
127
(5.0)
76
(3.0)
➋
127
(5.0)
➋
No. Description
➊ Power wiring conduit plates.
➋ Control wiring conduit plates.
➌ Optional exhaust hood.
➍ Disconnect switches (SW2). Common DC Input drives.
➎ Optional HIM.
➏ Recommended four-hole anchoring.
BOTTOM
BOTTOM
TOP
To Next Page
