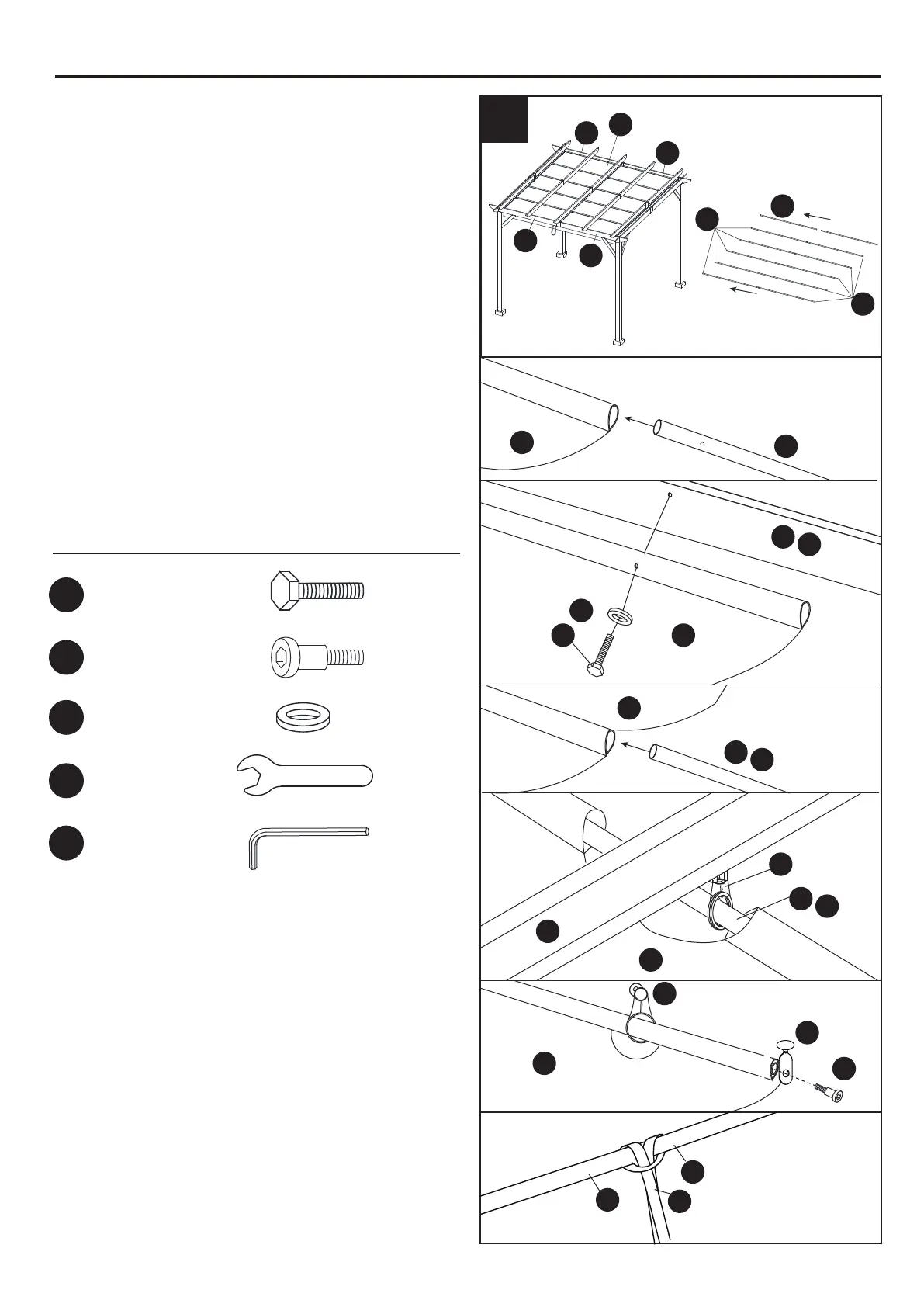

19. Insert the Fixed Tube (I1) into the Roof (P),
then connect them to the Crossbeam (B3/B4) with
Bolt (EE) and Flat Washer (FF).Insert the Cloth
piercing pipe (I2) and the Right Cloth-inserted
(I3) into the Roof (P). Connect the Pulley (O1) to
the Cloth piercing pipe (I2/I3) with the Bolt (HH)
respectively. Connect the remaining Cloth piercing
pipe (I2/I3) in the same way. Connect the Rope
Loop (R) to the Cloth piercing pipe (I2) and the
Right Cloth Tube (I3). Tighten together with the
Wrench (NN) and Allen Wrench (OO) .
Hardware Used
Note: The Cloth piercing pipe (I2/I3) must go
through the middle of the Pulley (O2).
M6 × 30 mm Bolt
X4
X4
Washer
EE
FF
X1
Wrench
NN
X1
Allen Wrench
OO
M6 × 15 mm Bolt
X10
HH
18
ASSEMBLY INSTRUCTIONS
I1
P
P
P
I2
R
I3
P
p
EE
FF
B3
B4
I2
I3
I2
I3
O2
O1
HH
O2
E
I1
P
B3
B2
B1
B4
I3
I2
19
