Read the user
instructions carefully
to make sure that
you understand all
of the controls and
what they do.
Always keep the
lawnmower on
the ground when
mowing. Lifting
or tilting the
lawnmower may
cause objects to be
thrown out.
Disconnect spark
plug, before replacing
any spare parts and
when unit is put
away for storage.
Keep bystanders at a
safe distance. Do not
mow whilst people,
children or pets are
in the mowing area.
The wearing of
protective footwear
is required
Ear defenders
should be worn.
Warning
Safety goggles
should be worn.
p5
Opening the box:
• Place box with the title “Allen” upright. Slit the tape see fig 1
• Remove staples with a screwdriver see fig 2
• Open out box fully see fig 3
• Lift out top packing assembly see fig 4
• Check box contents see fig 5
Assembling the unit:
• Fit the LOWER HANDLE first, and position the
white bushes as shown see fig 6
• Place lower handle between bushes, with
KICK STOP assembly on correct side see fig 7b
• Attach lower handle using fixings see fig 6
• Position UPPER HANDLE assembly and line up holes see fig 7
• Fix top and bottom handle assemblies using U-bolts
and handwheels see fig 7c
• Attach throttle assembly see fig 7a
• Secure throttle cable, using ties supplied see fig 7d

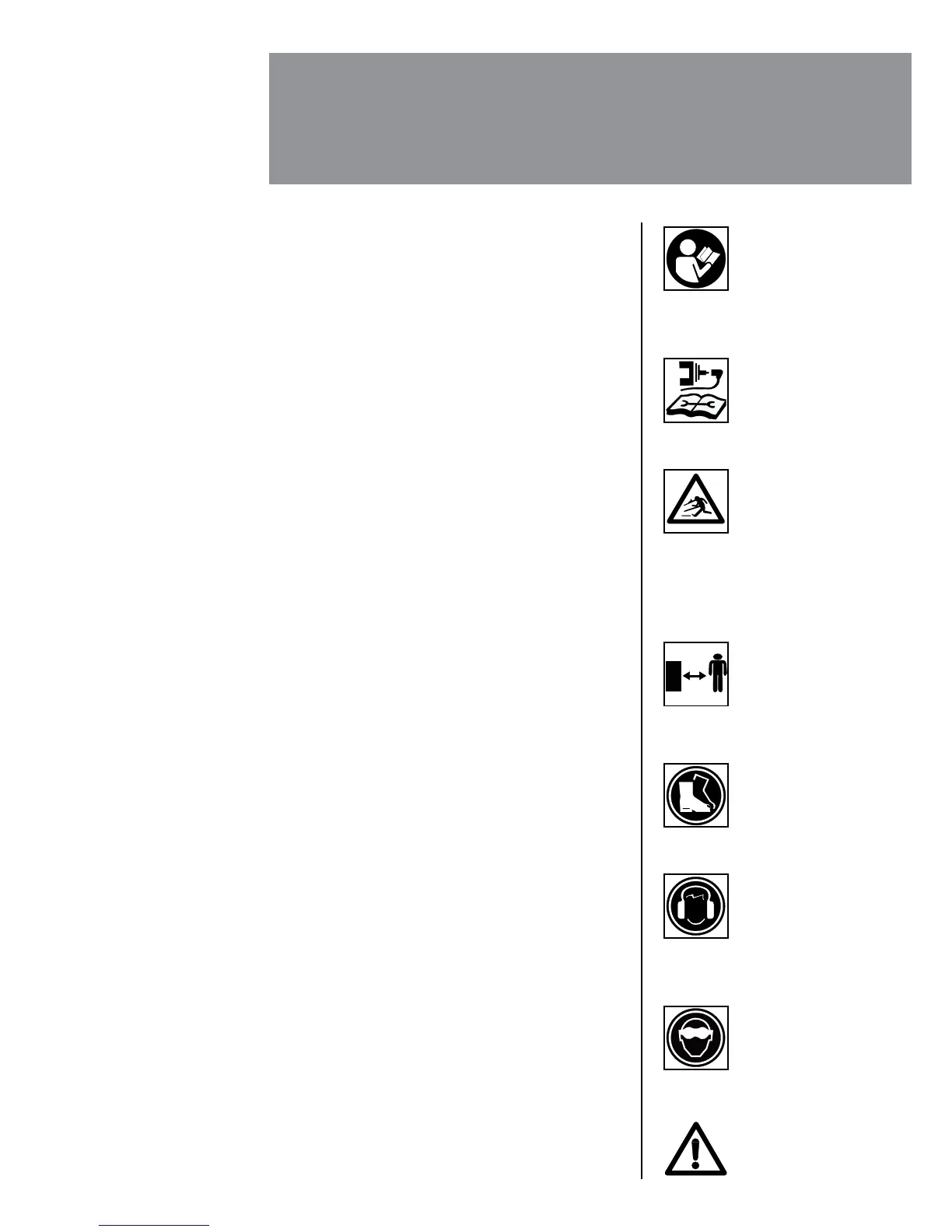

ASSEMBLING THE UNIT and
EXPLANATION OF WARNING SIGNS
Guide to General features of the unit [fig 8]:
A Throttle assembly
B Handwheel
C Recoil handle
D Fuel tank cap
E Fuel ON/OFF tap
F Upper handle assembly
G Lower handle assembly
H Oil filler cap
I Cover
