Allfett ALL-1 PS - PHYSICAL DIMENSIONS; ALL-1 PUMP DIMENSIONS

PAGE 4
www.allfett.net
PRODUCT DIMENSIONS

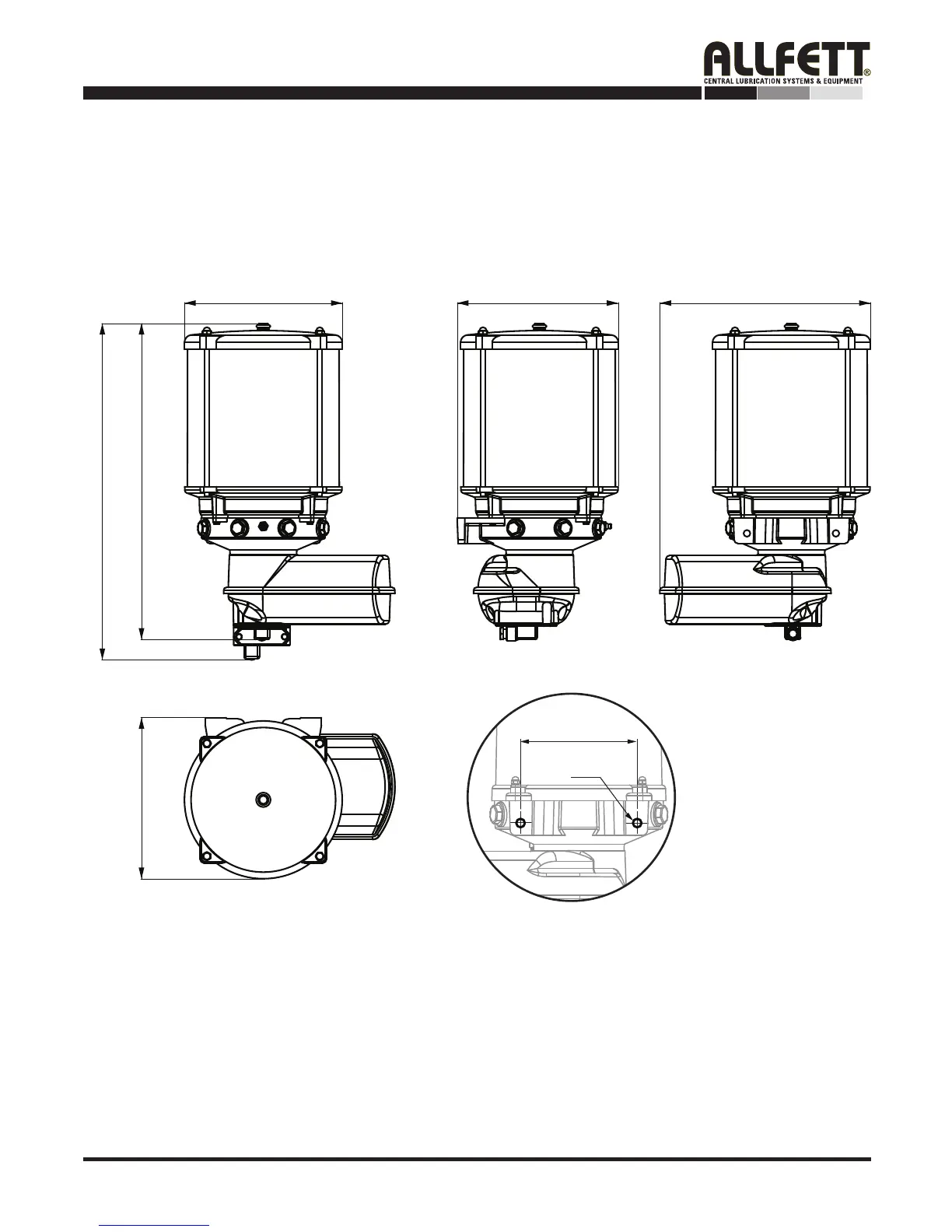

Technical drawings below represents the ALL-1 PS pump models which has integrated controller
and standard type. Dimension unit is milimeter.
Mounting holes
120 mm
Ø9.1
215,5mm
Ø211mm 281.5mm215,5mm
450mm (Pump with controller)
423mm (standard pump)
