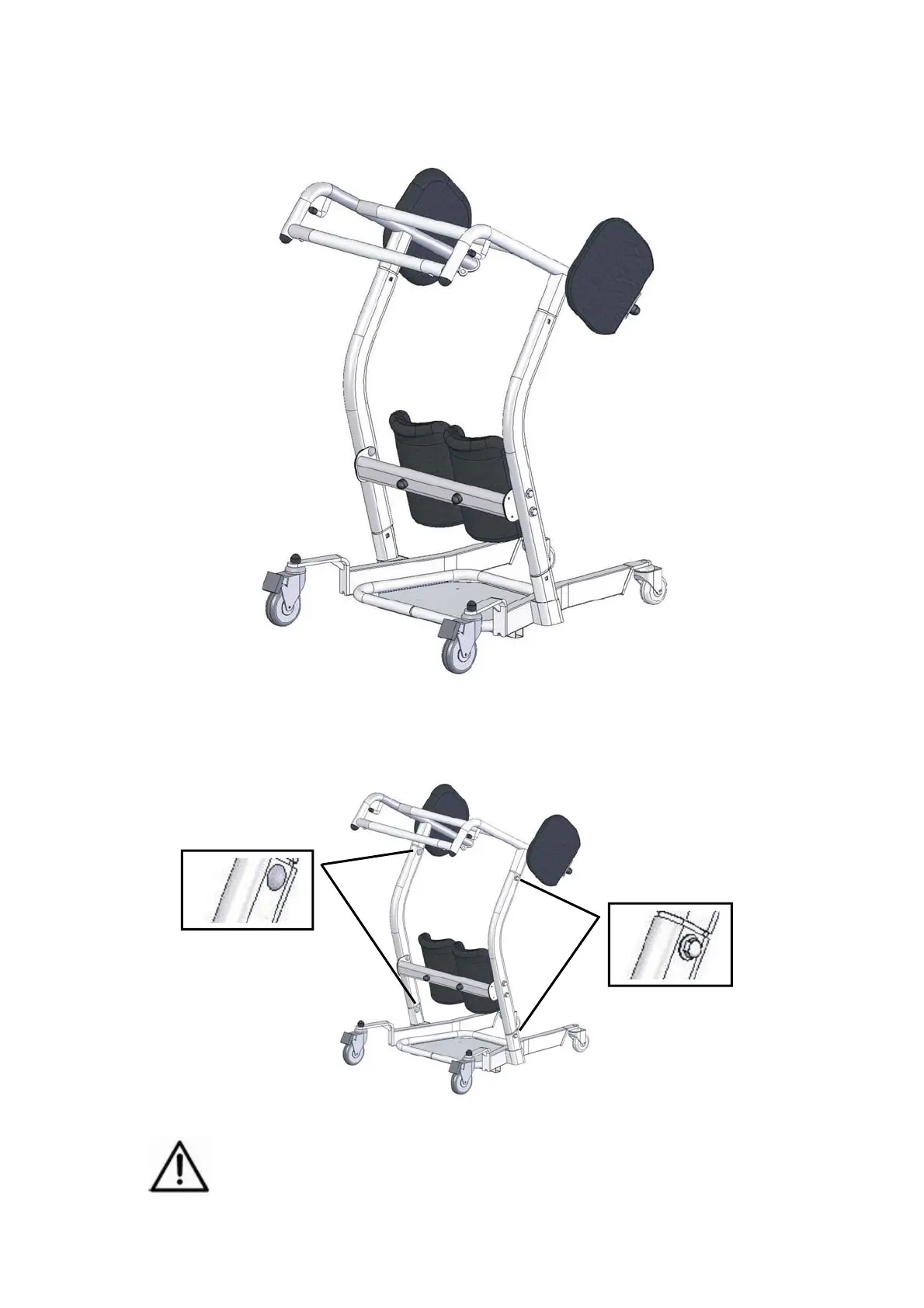

6. Insert the seat and cross bar assembly into the slots at the top of the
kneepad assembly as shown above.
7. Use the remaining 4 hex bolt assemblies<A1+A4+A5+A6> to securely
fasten the two sub assemblies to the base unit. All of the square shoulders
of the bolts should be on the inside and the washers and lock nuts on the
outside. Use the wrench<T1> to tighten all bolt assemblies.
DOUBLE CHECK ALL ASSEMBLIES FOR TIGHTNESS AND
READ OPERATING INSTRUCTIONS CAREFULLY PRIOR TO USE
