Allied 295 - Assembly

30
Assembly
Assembly - 295 Loader

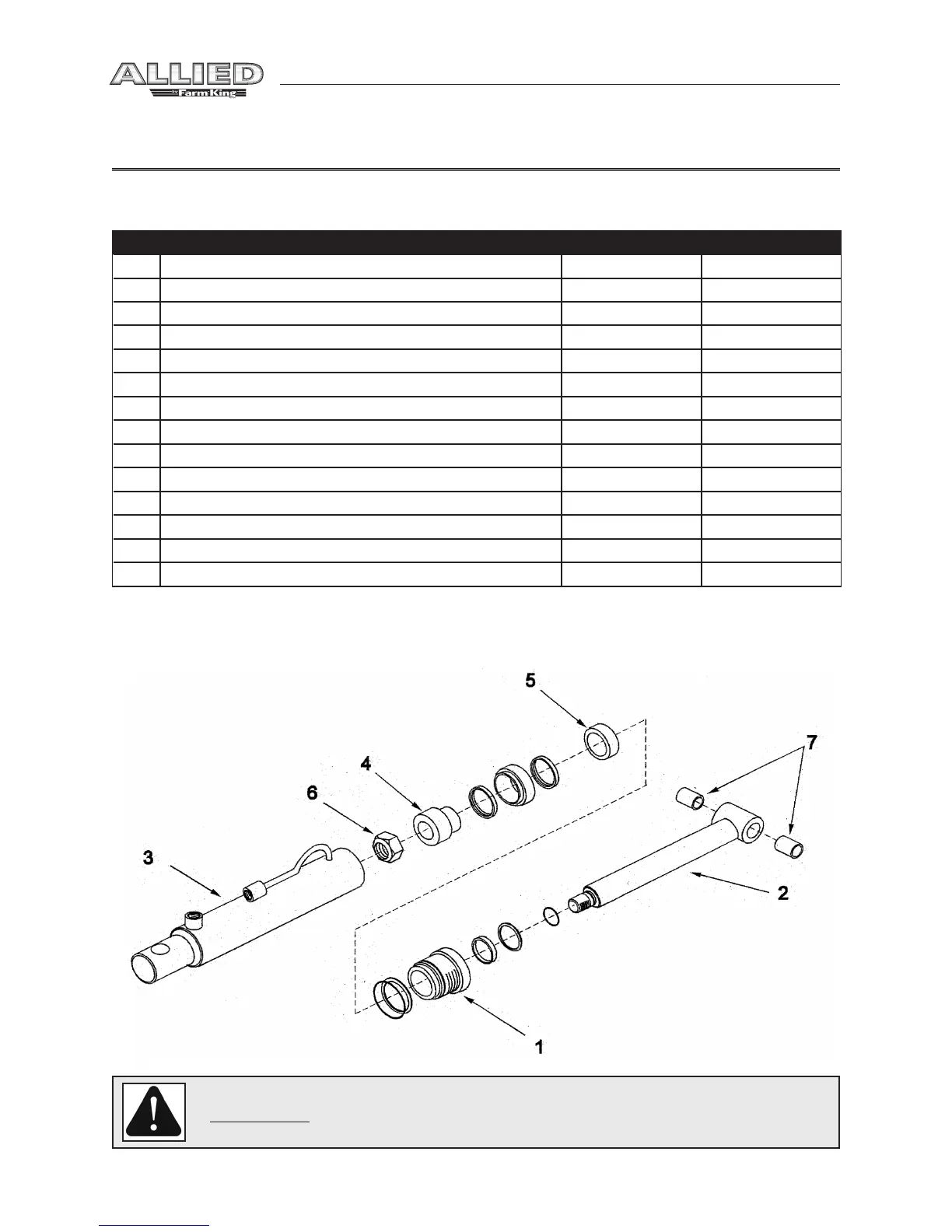

Hydraulic Cylinder Assembly
Item Description Bucket Cylinders Lift Cylinders
Diameter 2.00" 2.50"
Length of Stroke 20.63" 20.63"
Retracted Length 32.00" 33.00"
Extended Length 52.63" 53.63"
Cylinder Assembly No. 25381 25419
Seal Kit No. X1348 X1110
Shaft Diameter 1.25" 1.50"
1 Head Plate No. 24516 24540
2 Shaft Weldment No. 113799 113120
3 Cylinder Tube Weld't No. 25380 25418
4 Piston Half (wide) No. 114520 113217
5 Piston Half (narrow) No. 114521 113216
6 Self-Locking Nut No. 812655 810457
7 Shaft Bushing No. 113577 113766
1. Bucket cylinder shown.
2. All cylinder seals are contained in corresponding seal kit.
CAUTION
Maximum pressure - 3000 psi
