Allied A80UH1EX - Page 23

508031-02 Issue 2135 Page 23 of 29
Gas Valve
A
ir Intake Assembly
(leave intact)
Heat Exchanger
Air Gas Plenum
Gasket
Burner
Burner Box Liner
(leave intact)

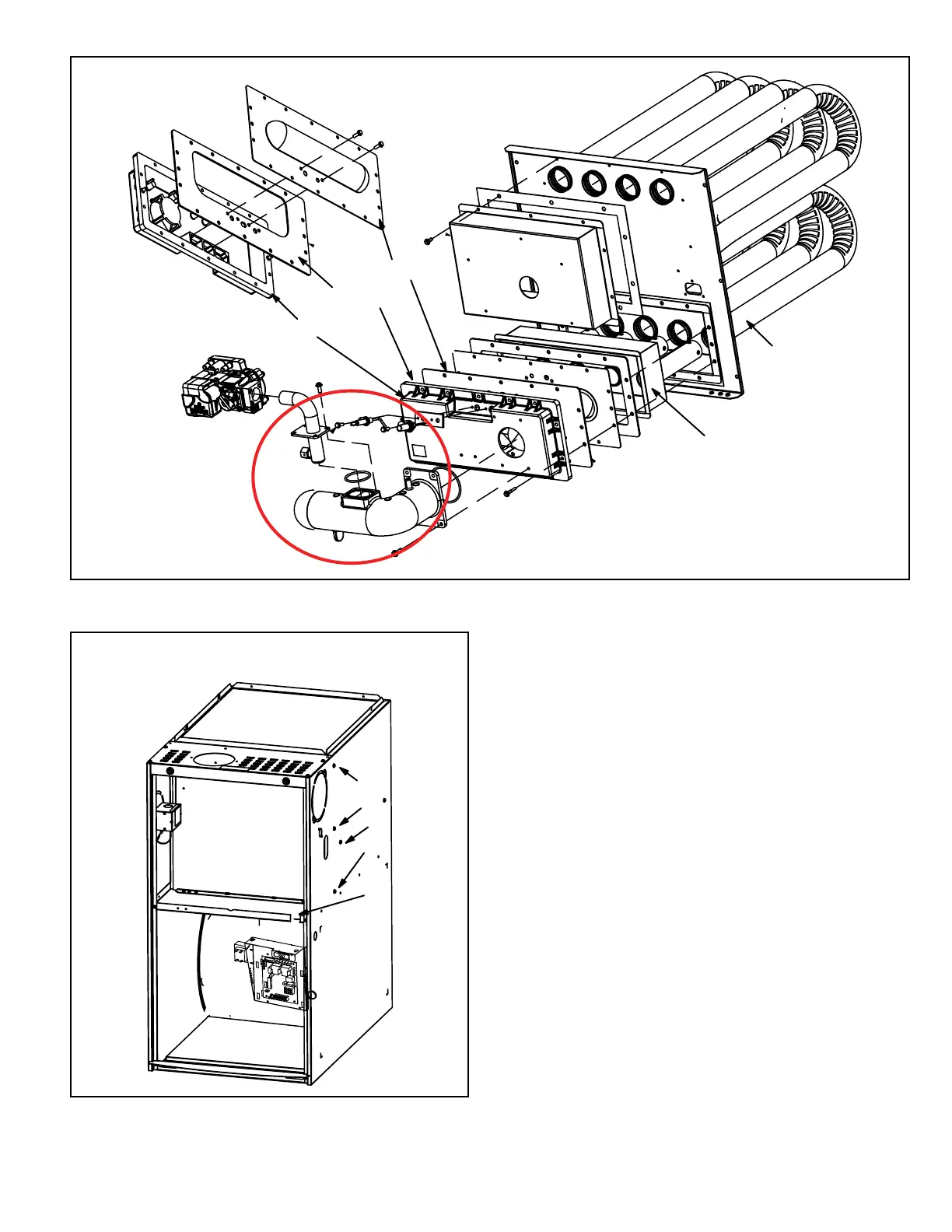

Figure 22. Burner, C.A.I. Assembly & Heat Exchanger Removal
Remove 5 screws if necessary
(either side of cabinet)
1
2
3
4
5
Figure 23.
