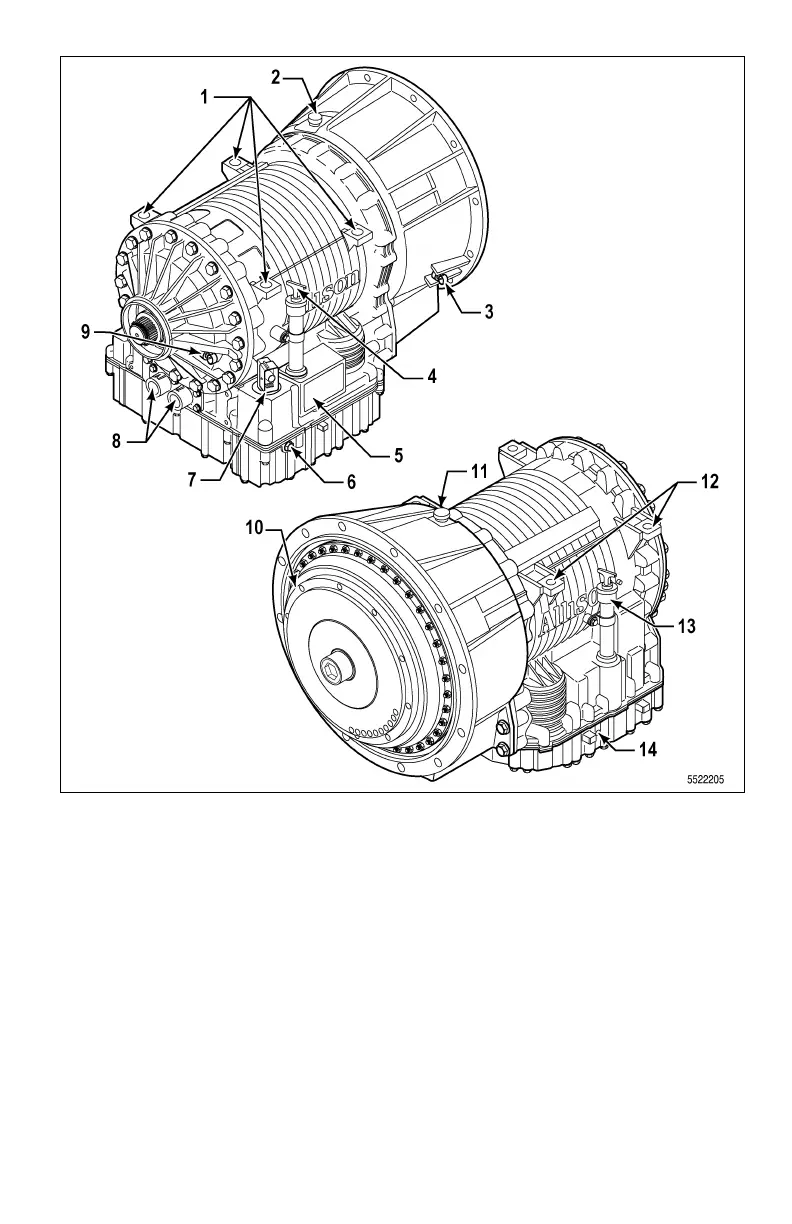

(1)–AssemblyPads
(2)–Breather
(3)–InputSpeedSensor
(4)–FillTubeandDipstick(Available
onBothSides)
(5)–Nameplate
(6)–Main-PressureT ap
(7)–FeedthroughHarness
Connector
(8)–CoolerPorts
(9)–OutputSpeedSensor
(10)–TorqueConverterwithLockup
ClutchandTorsionalDamper
(11)–Breather
(12)–AssemblyPads(BothSides)
(13)–FillTubeandDipstick(Available
onBothSides)
(14)–Main-PressureT ap
Figure2–1.3000/3200/3500Series
