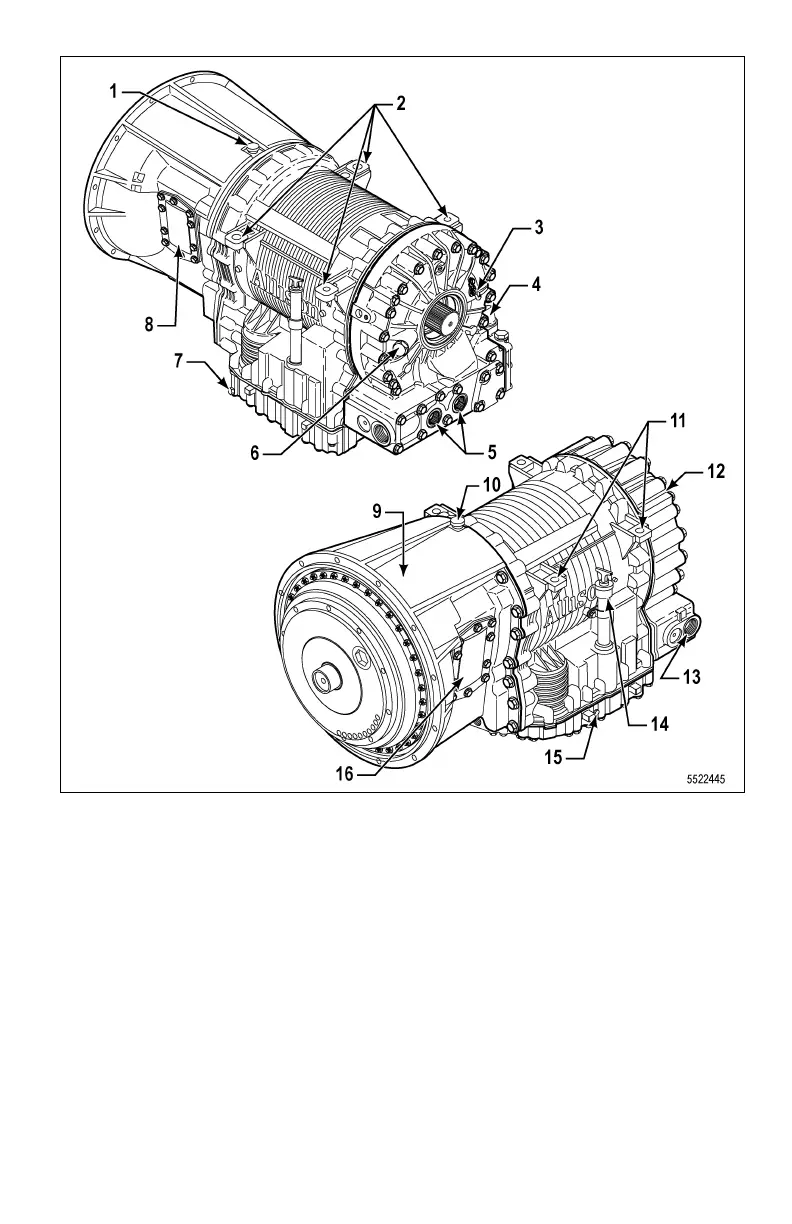

(1)–Breather

(2)–AssemblyPads

(3)–OutputSpeedSensor

(4)–RetarderValveBodyConnector

(5)–CoolerPorts

(6)–TachographProvision

(7)–Main-PressureT ap

(8)–PTOProvision

(9)–TorqueConverterwithLockup

ClutchandTorsionalDamper

(10)–Breather

(11)–AssemblyPads(BothSides)

(12)–OutputRetarder

(13)–ToRetarderAccumulator

(14)–OilFillTubeandDipstick

(AvaiableonBothSides)

(15)–Main-PressureT ap

(16)–PTOProvision

Figure2–3.3000/3200/3500SerieswithPTOandRetarder
