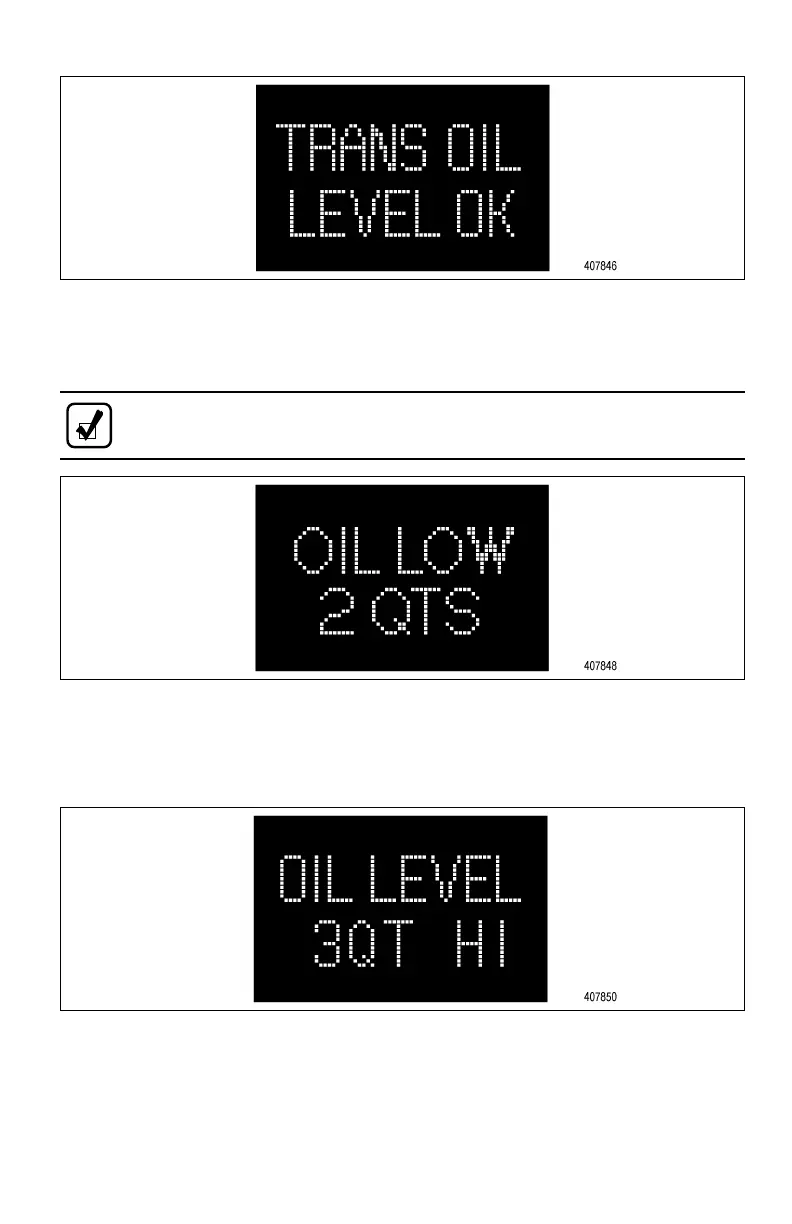

Figure5–2.CorrectFluidLevelDisplay

7.Lowuidlevelisdisplayedandthenumberindicatesthenumberof

quartsofuidthetransmissionrequires(refertoFigure5–3).

NOTE:Conrmalowuidlevelconditionbymakingamanualuid

levelcheck.

Figure5–3.LowFluidLevelDisplay

8.Highuidlevelisdisplayedfollowedbyanumberandthenumber

indicatesthenumberofquartsthetransmissionisoverlled(referto

Figure5–4).

Figure5–4.HighFluidLevelDisplay

9.Toexittheuidleveldisplaymode,pressanyrangebuttononthepush

buttonshiftselectororpresstheDISPLAYMODE/DIAGNOSTIC(DMD)

buttontwiceonthebump-shiftleverselector.
