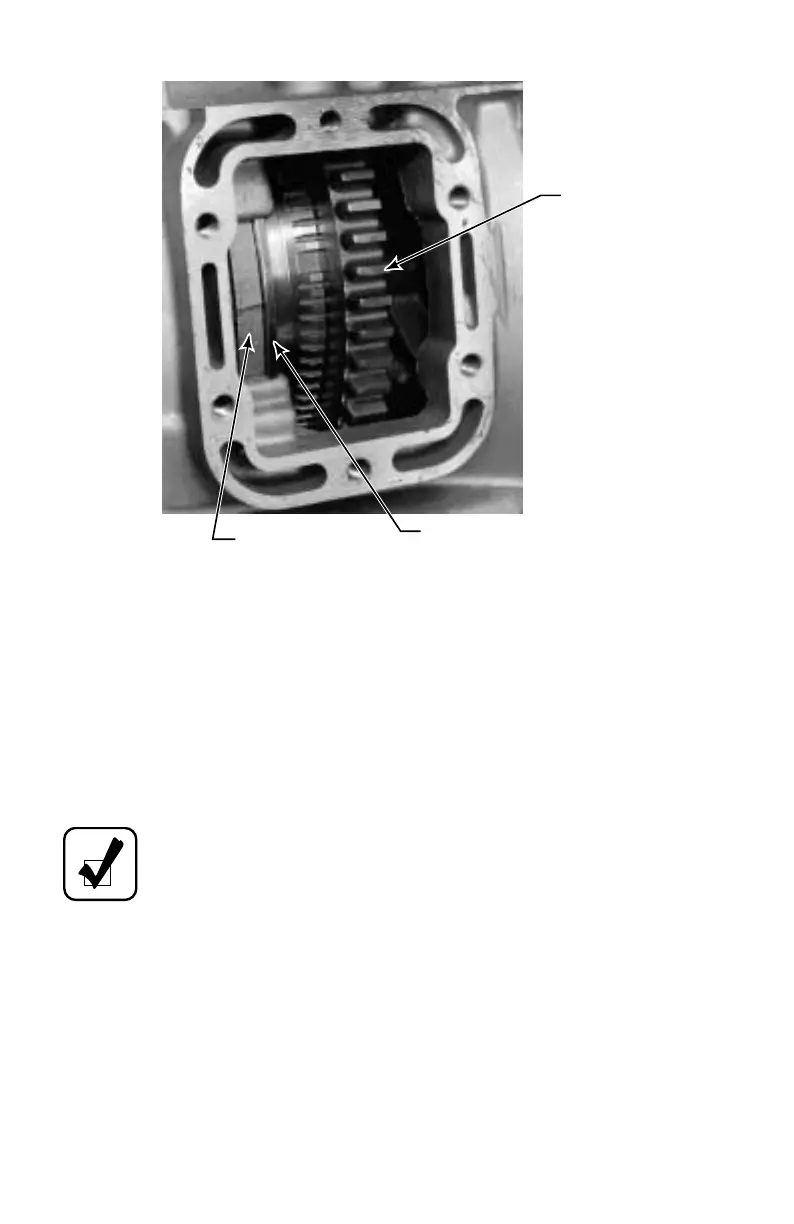

Figure 3–4. View at PTO Opening
3–7. INSTALLING FILL TUBE AND DRAIN PLUG
The fill tube may be installed before the transmission is put into the vehicle, unless
its presence will interfere with transmission installation.
Install the fill tube and tighten the fitting in the pan boss to
65–75 lb ft (88–102 N·m).
Fasten the upper end of the fill tube to the engine or transmission with
brackets and bolts as required. Do not attach the fill tube to the vehicle cab or
frame.
Ensure the drain plug is in place and tightened to 15–20 lb ft (20–27 N·m).
NOTE: Torque was increased to 90–100 lb ft (122–136 N·m)
beginning with S/N 3210685574 where the oil pan boss length was
changed from 0.575 to 0.675 inch. Reference SIL 30-TR-94.
PTO DRIVE
GEAR
SNAPRING
3RD RANGE CLUTCH
BACKPLATE
H00388.01
