V07309.00.02
RIGHT-FRONT VIEW
LEFT-REAR VIEW
PTO (TOP RIGHT POSITION)
RETARDER
FEEDTHROUGH
HARNESS
CONNECTOR
COOLER PORTS
PTO (TOP RIGHT POSITION)
MOUNTING PADS
(BOTH SIDES)
MOUNTING PADS
(BOTH SIDES)
FILL TUBE
TURBINE
SPEED
SENSOR
ENGINE SPEED SENSOR
PTO (BOTTOM LEFT
POSITION)
MAIN-PRESSURE TAP
NAMEPLATE
FEEDTHROUGH
HARNESS
CONNECTOR
RETARDER

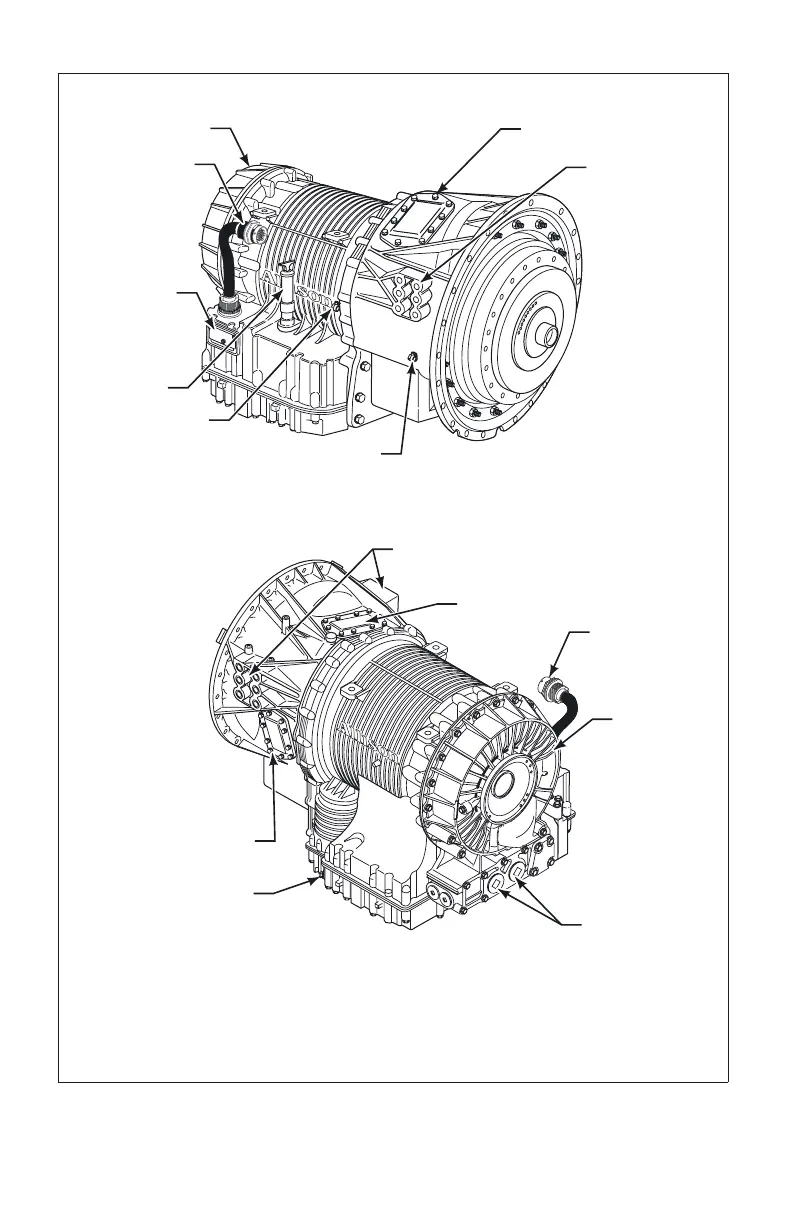

Figure 5. 4000/4500 EVS With PTO And Retarder
(WTEC III Controls)
13
