2. Pushbutton shift selector—If equipped with an oil level sensor,
simultaneously press the ↑ (Up) and ↓ (Down) arrow buttons.
3. Lever shift selector—If equipped with an oil level sensor, press the
display mode button one time.
NOTE: The fluid level check may be delayed until the following
conditions are met:
• The fluid temperature is above 60°C (140°F) and below
104°C (220°F).
• The transmission is in N (Neutral).
• The engine is at idle.
• The transmission output shaft is stopped.
• The vehicle has been stationary for approximately two minutes to
allow the fluid to settle.
1
2
3
4
5
6
D
N
R
MODE
R
N
D
5
4
3
2
1
MODE
R
N
D
MODE
1
2
3
4
5
D
N
R
MODE
R
N
D
MODE
V07343.02.02
SIX-SPEED,
LEFT-HAND
LEVER SELECTOR
WITH REVERSE
IN REAR
SEVEN-SPEED,
RIGHT-HAND
LEVER SELECTOR
WITH REVERSE
TO FRONT
HOLD OVERRIDE BUTTON
DISPLAY MODE/
DIAGNOSTIC BUTTON
MODE ID
DIGITAL DISPLAY
*
MODE BUTTON
MODE INDICATOR
(LED)
MODE ID
MODE
INDICATOR (LED)
Push simultaneously
to enter diagnostic
mode and fluid
level check
NOTE: Number displayed is highest forward range available in selected position.
Visually check to confirm range selected. If display is flashing, shift is inhibited.
*
DIGITAL DISPLAY
*
PUSHBUTTON SELECTORS
HOLD OVERRIDE
BUTTON
DISPLAY MODE/
DIAGNOSTIC BUTTON
DIGITAL DISPLAY
*
MODE BUTTON
MODE ID
MODE INDICATOR
(LED)
CONTOURED
BEZEL

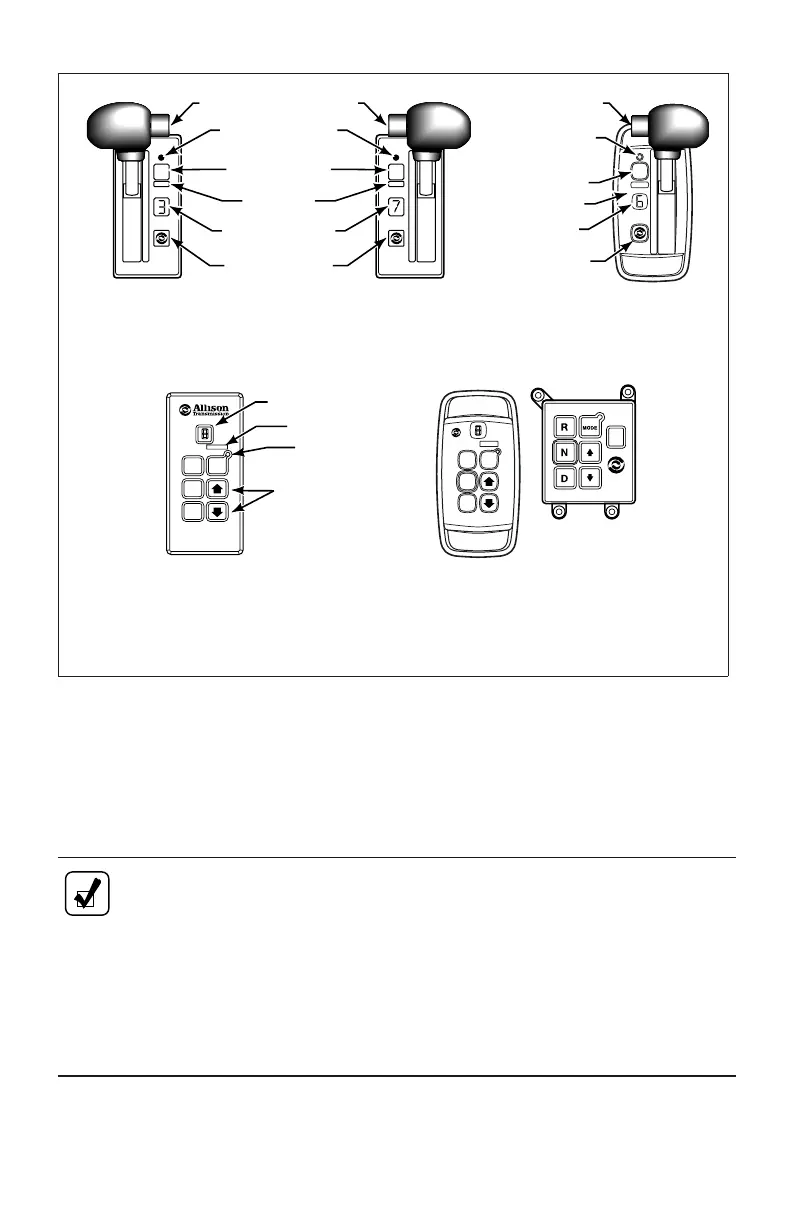

Figure 13. WTEC III Controls Shift Selectors and Pushbutton Selectors
51
