Allison Transmission Emergency Vehicle Series User Manual

A delayed fluid level check for transmissions with WTEC III Controls is indicated
by a “—” in the display window followed by a numerical countdown. The
countdowns, starting at 8, indicates the time remaining in the two minutes setting
period.
The indication of a delayed fluid level check for Allison 4
th
Generation Controls is
a flashing display under SELECT and a digit countdown from 8 to 1 under
MONITOR.
• Correct Fluid Level—“oL” is displayed (“oL” represents “Fluid (Oil)
Level Check Mode”), followed by “oK”. The “oK” display indicates the
fluid is within the correct fluid level zone. The sensor display and the
transmission dipstick may not agree exactly because the oil level sensor
compensates for fluid temperature.
6
1
7
1
6
1
MODE
6
1
R
N
D
6
5
4
3
2
1
1
2
3
4
5
D
N
R
7 1
V07343.04.00
SIX-SPEED,
LEFT-HAND
LEVER SELECTOR
WITH REVERSE
IN REAR
SEVEN-SPEED,
RIGHT-HAND
LEVER SELECTOR
WITH REVERSE
TO FRONT
HOLD OVERRIDE
BUTTON
HOLD OVERRIDE
BUTTON
MODE ID
MODE ID
*
MODE INDICATOR
(LED)
MODE INDICATOR
(LED)
MODE ID
MODE
INDICATOR (LED)
Push simultaneously
to enter diagnostic
mode and fluid
level check
NOTE:
The first number displayed is highest forward range available and second number is range
attained in selected position.
Visually check to confirm range selected. If display is flashing, shift is inhibited.
*
DIGITAL DISPLAY
*
PUSHBUTTON SELECTORS
*
CONTOURED
BEZEL
MODE BUTTON
MODE BUTTON
DIGITAL DISPLAY
DIGITAL DISPLAY
DISPLAY MODE
DIAGNOSTIC BUTTON
DISPLAY MODE
DIAGNOSTIC BUTTON

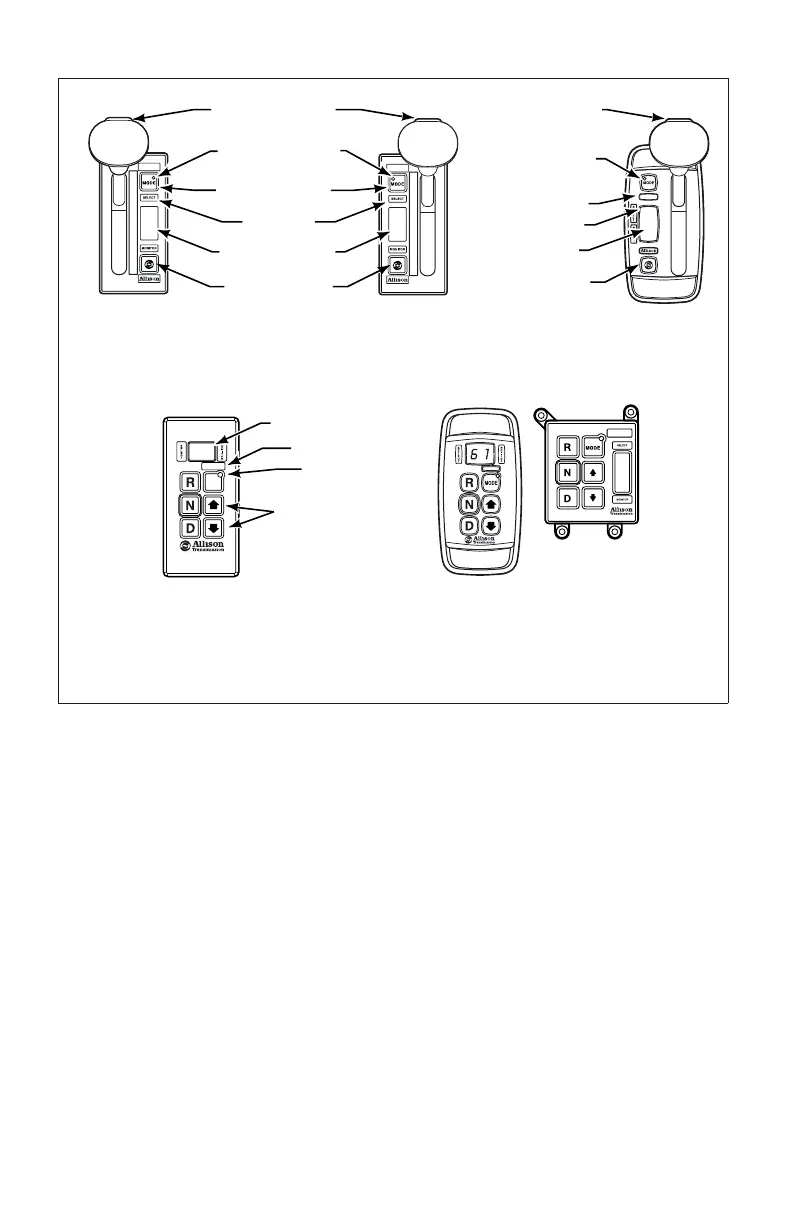

Figure 14. Allison 4
th
Generation Controls Shift Selectors and
Pushbutton Selectors
