WTEC II ELECTRONIC CONTROLS TROUBLESHOOTING MANUAL
E–26 Copyright © 1998 General Motors Corp.
APPENDIX E — CONNECTOR PART NUMBERS, TERMINAL PART
NUMBERS, TOOL PART NUMBERS, AND REPAIR INSTRUCTIONS

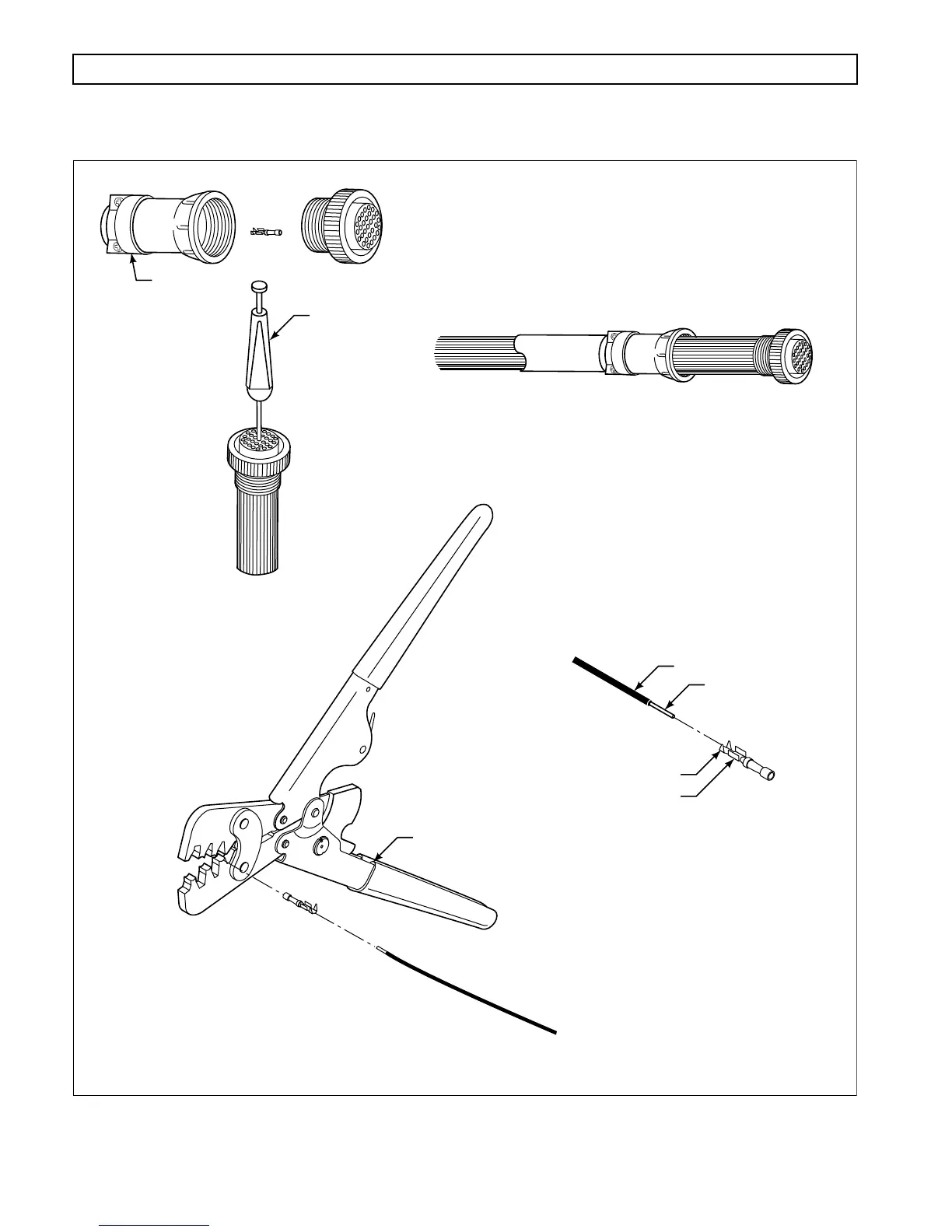

Figure E–8. Amp Products Connectors (16-Way VIW; 8-Way RMR Device (Hand Lever))
A
C
E
B
D
V01690
VIEW A
VIEW B
VIEW C
VIEW D
J 34823
J 38125-7
INSULATION
STRIPPED WIRE
INSULATION CRIMP
CORE CRIMP
CABLE CLAMP
