6-1622192 rev. 14 21/09/2012 6/9
FC 1 FC 2
FC 1 FC 2
An ta B An ta A
Esemp io di funzio namento simmet rico:
Tempo di apertura anta A = Tempo di apertura anta B
Anta B Anta A
Esempio di fu nzionamen to asim met rico:
Tem po di apertura an ta B > Tempo d i apertura a nta A
Tem po di apertura an ta A > Tempo d i apertura a nta B

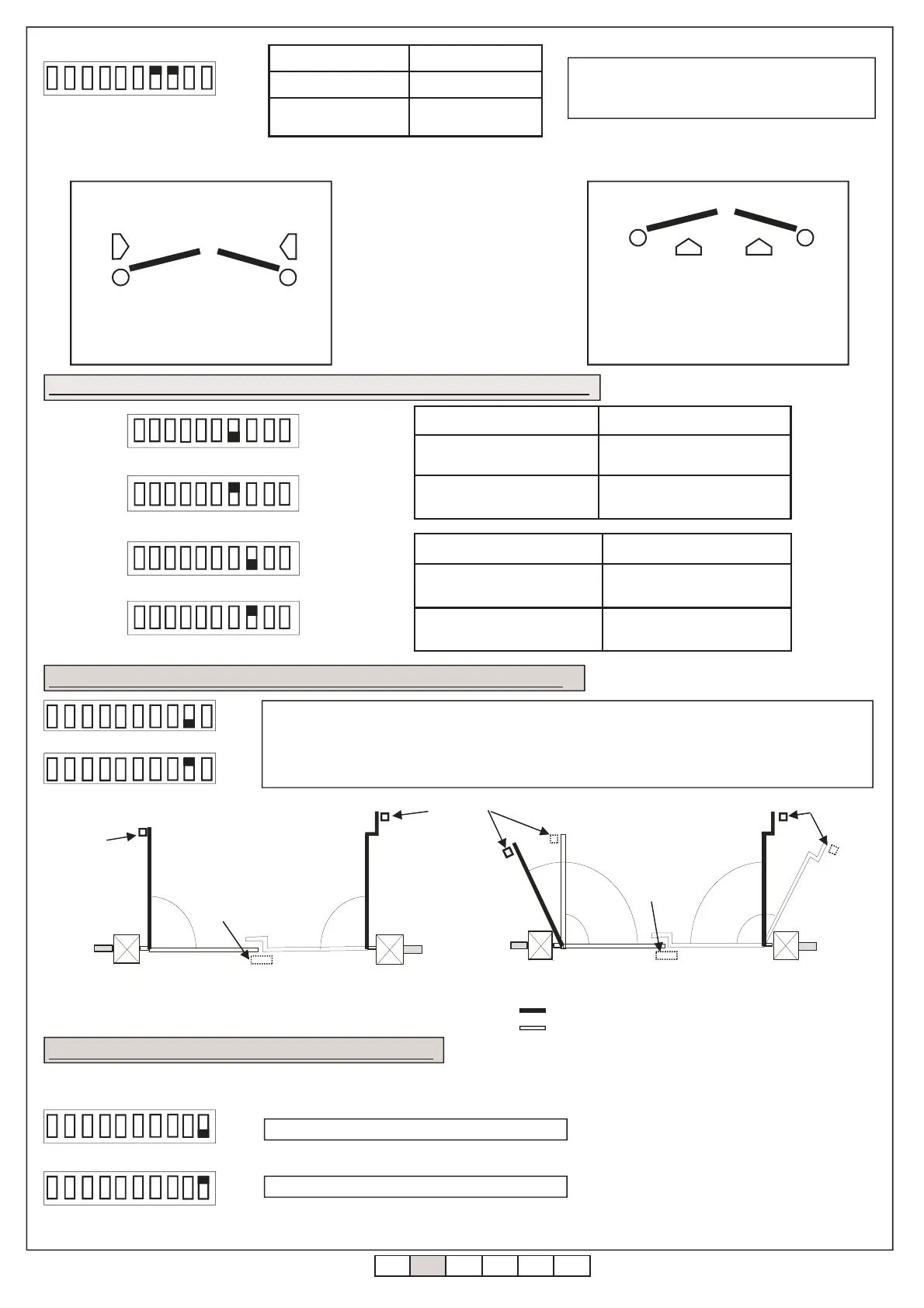

7.8 Symmetrical / asymmetrical opening (ONLY FOR ARGO 2 MOTORS ).
With dip-switch in this position, the gate opens/closes symmetrically (one operational time for both wings to
set using the “WORKING time” trimmer).
With dip-switch in this position, the gate opens/closes asymmetrically (different operational time for the two
wings to set respectively with the “WORKING TIME“ e “2nd: WING D“ trimmers).
1 2 3 4 5 6 7 8 9 10
ON
OFF
1 2 3 4 5 6 7 8 9 10
ON
OFF
ON
OFF
1 2 3 4 5 6 7 8 9 10
ON
OFF
1 2 3 4 5 6 7 8 9 10
This selection provides to closing the gate after an interruption of photocells beam. If a break time was estimated, the countdown is stopped and the
gate closes.
7.9. Immediately re-closing after photocells intervention.
Re-closing after a break in photocells beam enabled.
Re-closing after a stop in photocells beam disabled.
7.7.2 Model ARGO1: If limit switches are installed, these operate in the following ways:
ON
OFF
1 2 3 4 5 6 7 8 9 10
ON
OFF
1 2 3 4 5 6 7 8 9 10
ON
OFF
1 2 3 4 5 6 7 8 9 10
ON
OFF
1 2 3 4 5 6 7 8 9 10
Start of slowdown only in closing: the start of slo-
wdown phase in closing is set off by the intervention of
both limit switches (one for each wing), while it is only
timed in opening (see diagram below).
ON
OFF
1 2 3 4 5 6 7 8 9 10
Mechanical stop
opening
Mechanical stop
closing
Mechanical stops
opening
Mechanical stop
closing
Mechanical stops
opening
Type of limit switch
Function
Opening limit switch End opening operation
Opening limit switch Start of slowdown in opening
Type of limit switch Function
Closing limit switch
End closing operation
Closing limit switch
Start of slowdown in closing
Limit switch 1 and 2 placed
for slowdown in opening
Limit switch 1 and 2 placed
for slowdown in closing
Conceptual diagram of
limit switch functions
Type of limit switch Function
Opening limit switch No operation
Limit switch 1 and 2
positioned in closing
Start of slowdown
In closing
Symmetrical opening.
Opening time door A = opening time door B
Asymmetrical situation
Opening time door B > opening time door A
Opening time door A > opening time door B
