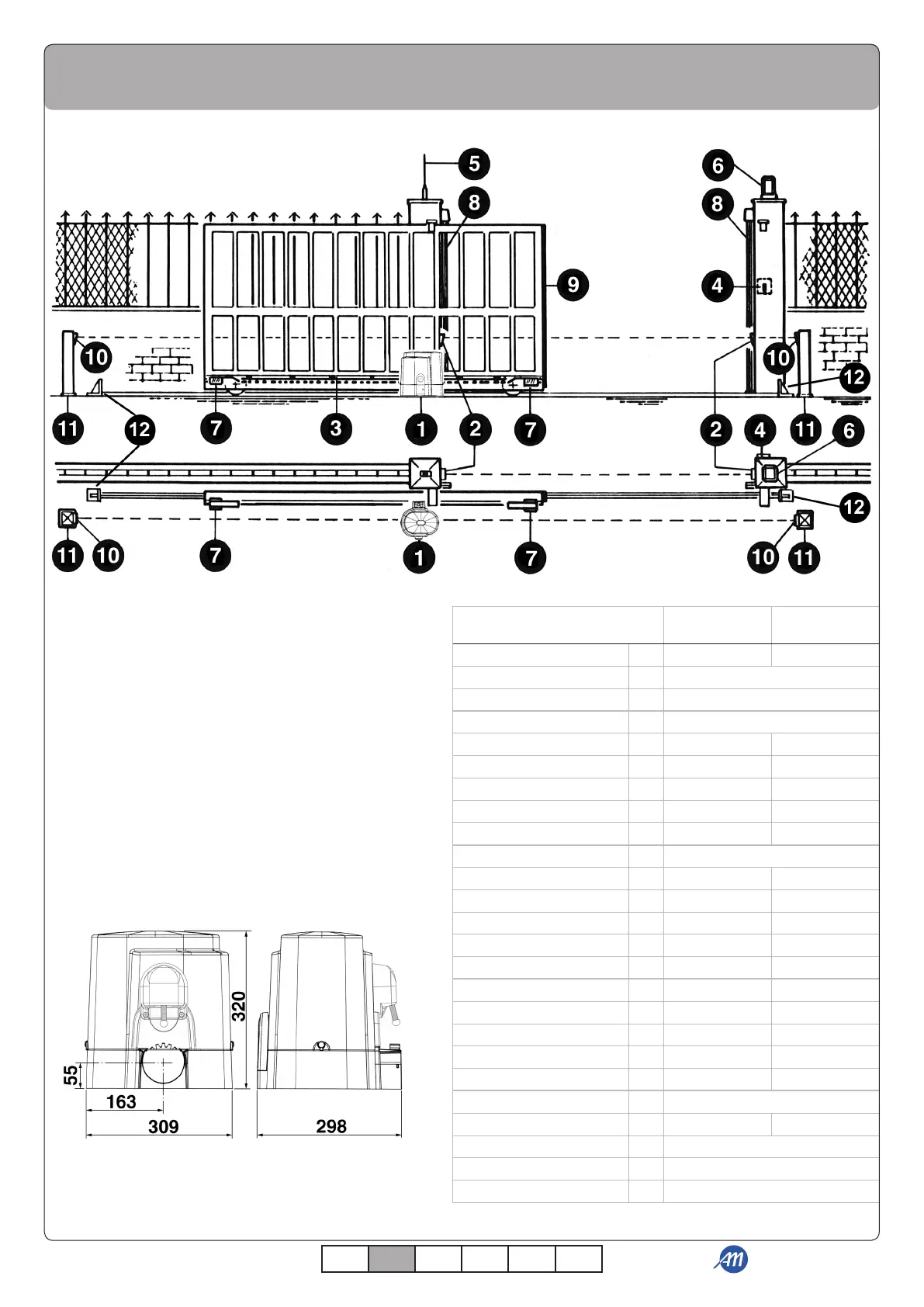

SYSTEM LAY-OUT
1 - BIG operating device
2 - External photocells
3 - Rack of Module 4
4 - Key selector
5 - Radio antenna
6 - Blinker
7 - Limit switch plate (cams)
8 - Mechanical strip
9 - Pneumatic strip or Fotocosta
10 - Internal Photocells
11 - Photocell columns
12 - Mechanical stops
TECHNICAL FEATURES
Irreversible operating devices for sliding gates with a maximum weight of 2.200
kg / 4900 lbs.
The irreversibility of this operating device allows you to avoid using any electric lock for
an effective closing of the gate. The motor is protected by an heat probe, that temporary
interrupts the operating cycle in case of prolonged use.
Measurements in mm
TECHNICAL
DATA
BIG 0.8 BIG 2.2
Max. leaf weight kg 800 2200
Operating speed m/s 0,155/0,18
Rack M 4
EEC Power supply 230V~ 50/60Hz
Thrust force to constant turns N 600 1150
Max. torque Nm 20,4 39
Motor capacity W 533/510 774/747
Power absorbed A 2,28/2,25 3,45/3,30
Capacitor µF 12,5 16
Power supply 120V~ 60Hz
Thrust force to constant turns N 514 1175
Max. torque Nm 17,5 40
Motor capacity W 536 999
Power absorbed A 4,71 8,65
Capacitor µF 80 60
Normative cycles 230V n° 7 - 38s/2s
12/7 - 64s/2s
Normative cycles 120V n° 10 - 38s/2s 12 - 64s/2s
Daily operations suggested n° 300 500
Service % 50% 70%
Guaranteed consecutive cycles n° 8/6m 15/10m
Grease COMLUBE LHITGREASE EP/GR.2
Weight of electroreducer kg 10,5 14
Noise db <70
Working temperature °C -10 ÷ +55
Protection IP 44
