6-1622241 rev.6 04/12/2018
Compatible from firmware version BIOS1BT04

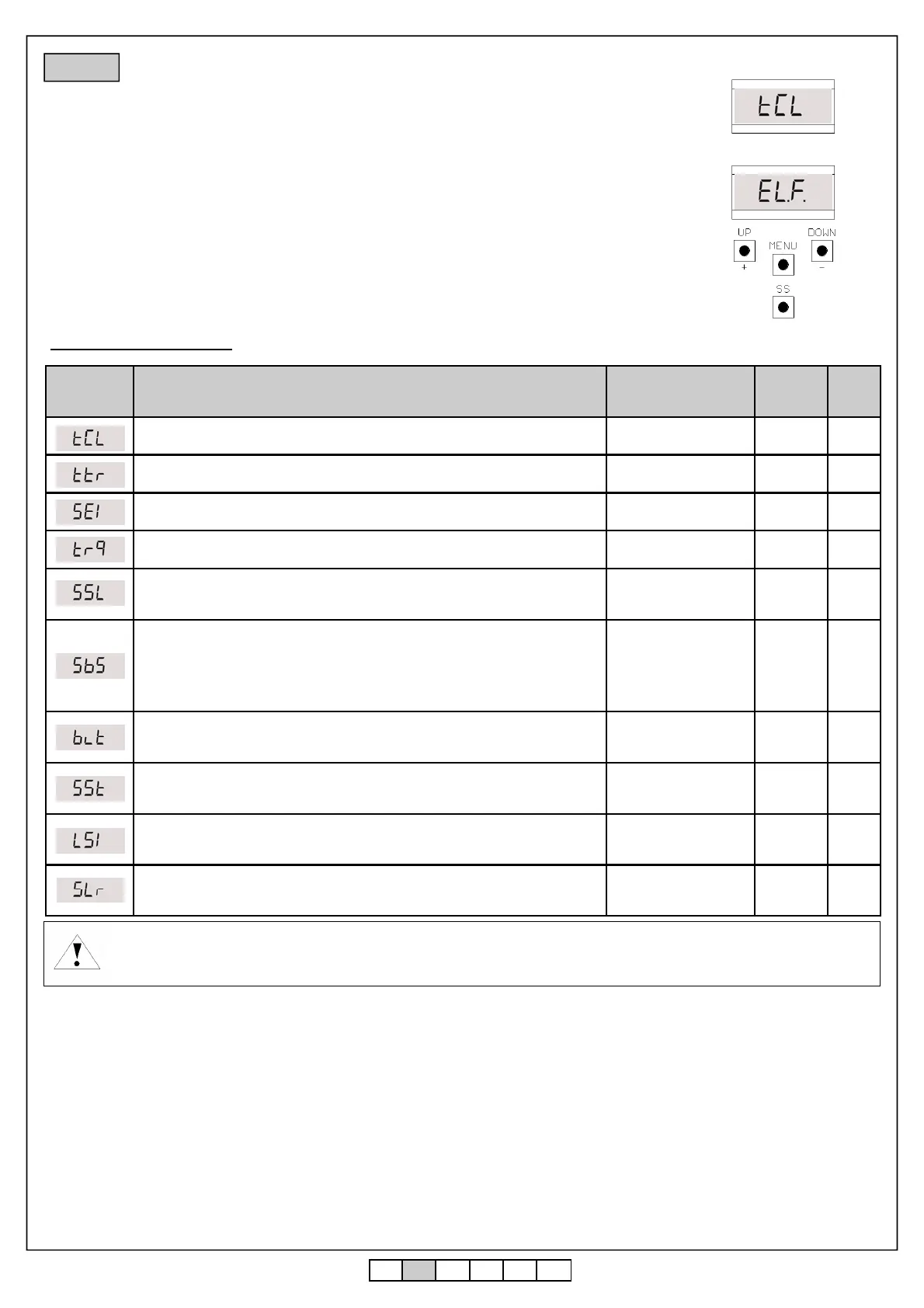

6.1 Base settings menu:
MENU DESCRIPTION
SELECTABLE
VALUES
min-max
DEFAULT UNITS
tCL
tCLtCL
tCL
Auto reclosing time (0 = disabled) 0-900 0 s
ttr
ttrttr
ttr
Auto reclosing time after transit(0 = disabled) 0-30 0 s
SEI
SEISEI
SEI
Obstacle sensitivity (0 = disabled 100 = maximum sensitivity) 0-100 0 %
Trq
Trq Trq
Trq
Motor torque (running torque) 10-100 100 %
SSL
SSLSSL
SSL
Slowing down mode
0 = normal
1 = fast with more torque
0-1
0
SbS
SbSSbS
SbS
Step by step configuration
0 = normal (OP-ST-CL-ST-OP-ST…)
1 = alternated STOP (OP-ST-CL-OP-ST-CL…)
2 = alternated (OP-CL-OP-CL…)
3 = condominium – timer
4 = condominium with immediate auto reclosing
0-4 0
Blt
BltBlt
Blt
After black-out
0 = no action
1 = closing
0-1 0
SSt
SStSSt
SSt
Soft start
0 = disabled
1 = enabled
0-1 0
LsI
LsILsI
LsI
Amplitude of slowing down
P = personalized during learning
0…100% = percentage of stroke
0-100 15 %
Deceleration ramp amplitude
0 = disabled
1:9 = ramp duration
0-9 5
6. Menu
Entering the menu:
To enter the base menu settings keep pressed the MENU button for at least one second
To enter the advanced menu settings keep pressed the MENU button for at least five seconds
Navigation into the menu:
It is possible to move from an entry to another one using UP[+] e DOWN[-] buttons,
To change a parameter keep pressed the MENU button for at least 1 second until the parameter begins blinking,
so release the button.
Use UP[+] and DOWN[-] buttons to change the parameter
At the end keep pressed MENU for al least 1 second until the parameter stops blinking to save the change.
A quick pressure of the menu button is enough to leave a menu
Ex. Base menu
Ex. Advanced menu
*ATTENTION!
It is not advisable the disabling of the slowing downs and, if possible, use the "soft start" function.
*
*
