QUICK INSTALLATION GUIDE
NPX Series Non-Programmable
Motor Controller
Our NPX Series motor controllers are designed to
be stock replacement controllers for stock cars only.
With a peak current rating they are not designed
for lifted or high performance vehicles. For a high
performance controller order our AXE Series motor
controllers. NPX controllers are not program-
mable and must be ordered for the exact car
you are installing them in.
Safety Notes:
Alltrax recommends that all motor controller
applications must have a fuse in the battery
circuit. Failure to utilize a fuse will result in in-
jury, property damage, and void all warranties.
Approved fuses manufactured by Bussman or
Littelfuse: Controllers rated at 400 amps (or
less) use ANN250 Fuse. On controllers rated at
450 amps (or more) use ANN400. [See:
Doc100-016-A_OP-Fuse-Install-Guide.doc]
Alltrax also recommends a diode across the coil
of the solenoid (Cathode to Positive, Anode to
Negative) if it is not already installed. A mini-
mum of a 100V 1A diode (a 1N4004 is suitable)
is required. See complete wiring diagrams for
orientation.
Working on electric vehicles, sudden unex-
pected events can occur, it is recommended to:
• Place the drive axle on jack stands—
wheels off the floor
• When working on wiring or batteries, al-
ways remove rings and watches and use
the proper safety equipment, eye protec-
tion, and insulated tools
• Disconnect batteries before installing or
working on the controller
Club Car Diagrams

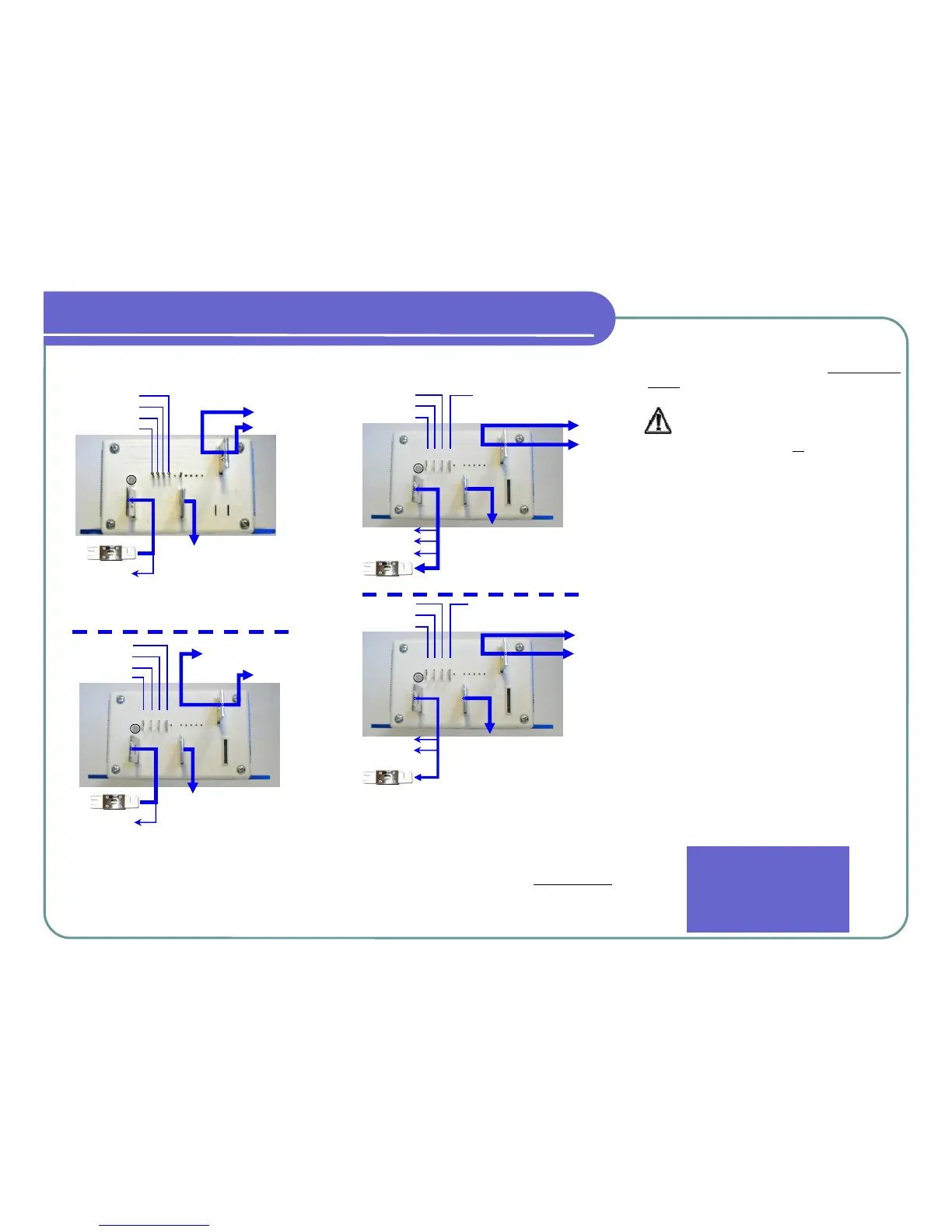

E-Z-Go 5-Pin Diagram
NPX4834EZ & NPX4844EZ for EZ instal-
lation, 5-PIN with ITS Throttle.
E-Z-Go Diagram
NPX4834 & NPX4844 for 1994 and
older cars with 0-5K Ω Throttle
NPX4834 & NPX4844 for
1996 and Newer cars with
5K-0 Ω , 3 wire Throttle
Not all controllers use the A2 terminal. If not,
bolt the two wires together, insulate with tape
or heat shrink, then secure in safe location.
1 2 3 4
RED
BLK
WHT
ORG
M-
B+
Motor A1 (1204/1205 Replacement)
Switch “A” (1206 Replacement)
BATTERY +
* F-N-R Terminal “C” (1204/1205 Replacement)
* Motor A1 (1206 Replacement)
BATTERY +
M-
Motor A1
B+
1 2 3 4
RED
GRN
YEL
NOT USED
B-
M-
B+
YELLOW
GREEN
BLUE
PUR
RED/WHT
BLK
Switch “A”
WHT
BLK
ORN
RED
Alltrax, Inc.
1111 Cheney Creek Rd
Grants Pass, OR. 97527
Phone: 541-476-3565
Fax: 541-476-3566
LED
LED
LED
BATT
(-)
BLK
B-
BATT
(-)
BLK
SOLENOID BLK
FUSE
B-
BATT
(-)
BLK
SOLENOID BLK
FUSE
THROTTLE
1/2 SPD RVRS
KEY SWITCH
THROTTLE
THROTTLE
THROTTLE
1/2 SPD RVRS
KEY SWITCH
THROTTLE
THROTTLE
KEY SWITCH
NPX4834 & NPX4844 for
1995 and Older cars with 0-
5K Ω , 3 wire Throttle
1 2 3 4
RED
BLK
WHT
NOT USED
B-
M-
B+
YELLOW
GREEN
YEL
BLK
LED
BATT
(-)
BLK
THROTTLE
THROTTLE
KEY SWITCH
FUSE
FUSE
BLUE
