4. Installation
4.1 Connecting Utility and Load
The UPS outlets provide battery backup and surge protection for the equipment when the utility voltage is
out of range.
1. Make sure the utility voltage is within the UPS voltage limits.
2. Plug the UPS into a utility power receptacle.
3. Illumination of the green Utility LED
and the amber Bypass LED indicate that utility and
bypass are normal.

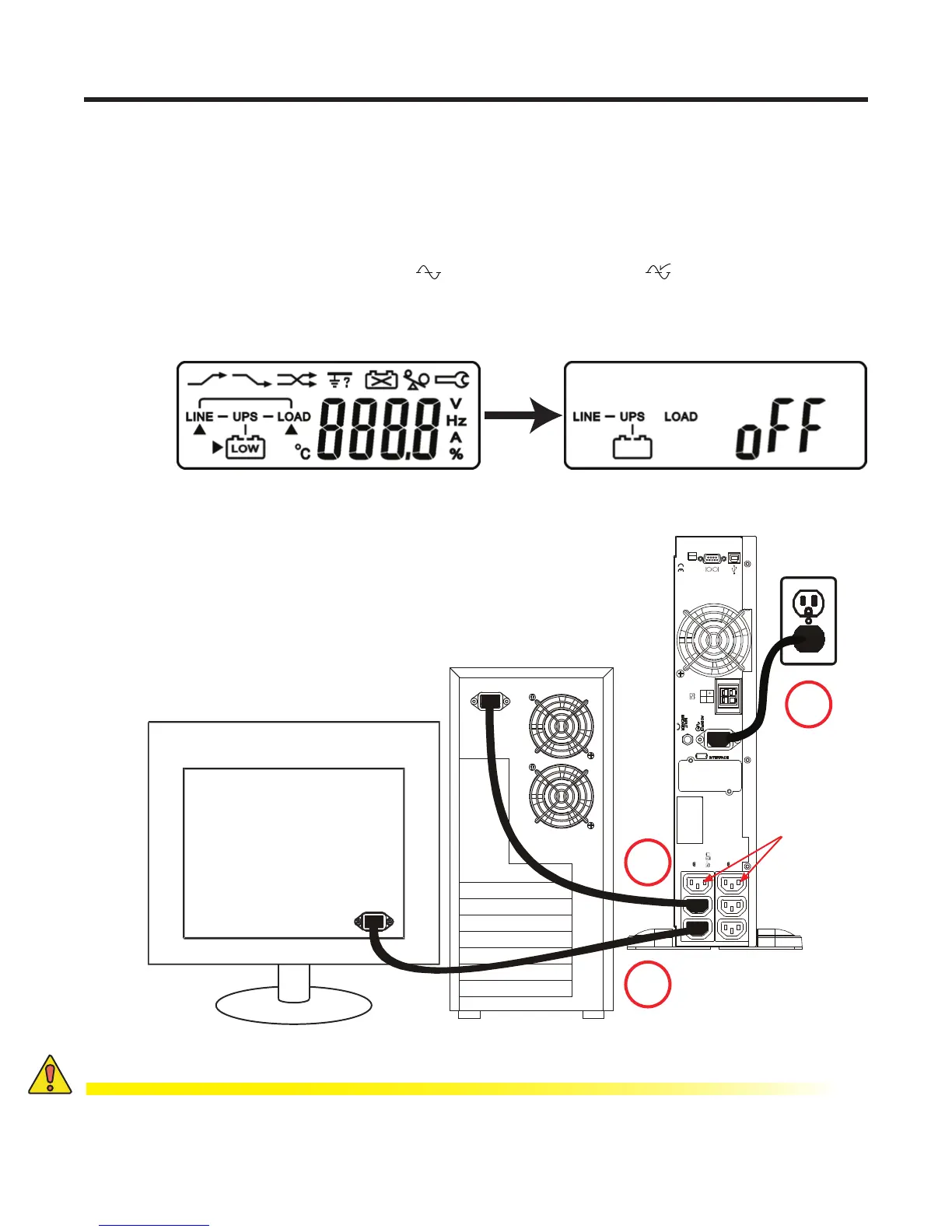

4. The LCD screen updates as shown:
Do not connect a laser printer to the UPS outlets! The printer may overload the UPS and
shut it down.
CAUTION!
5. Plug a computer and monitor into two of the non-programmable outlets.
EPO
G
DC 36V
AC O UTPUT
2
1
A
B
C
Programmable
outlets
To Next Page
