Configuring the Programmable Outlet 1/ Programmable Outlet 2
The UPS is equipped with 2 programmable outlets to supply less critical loads. These outlets can be
configured to disconnect the less critical loads during back-up modes or overload conditions to preserve
power to the more critical loads connected to the UPS.

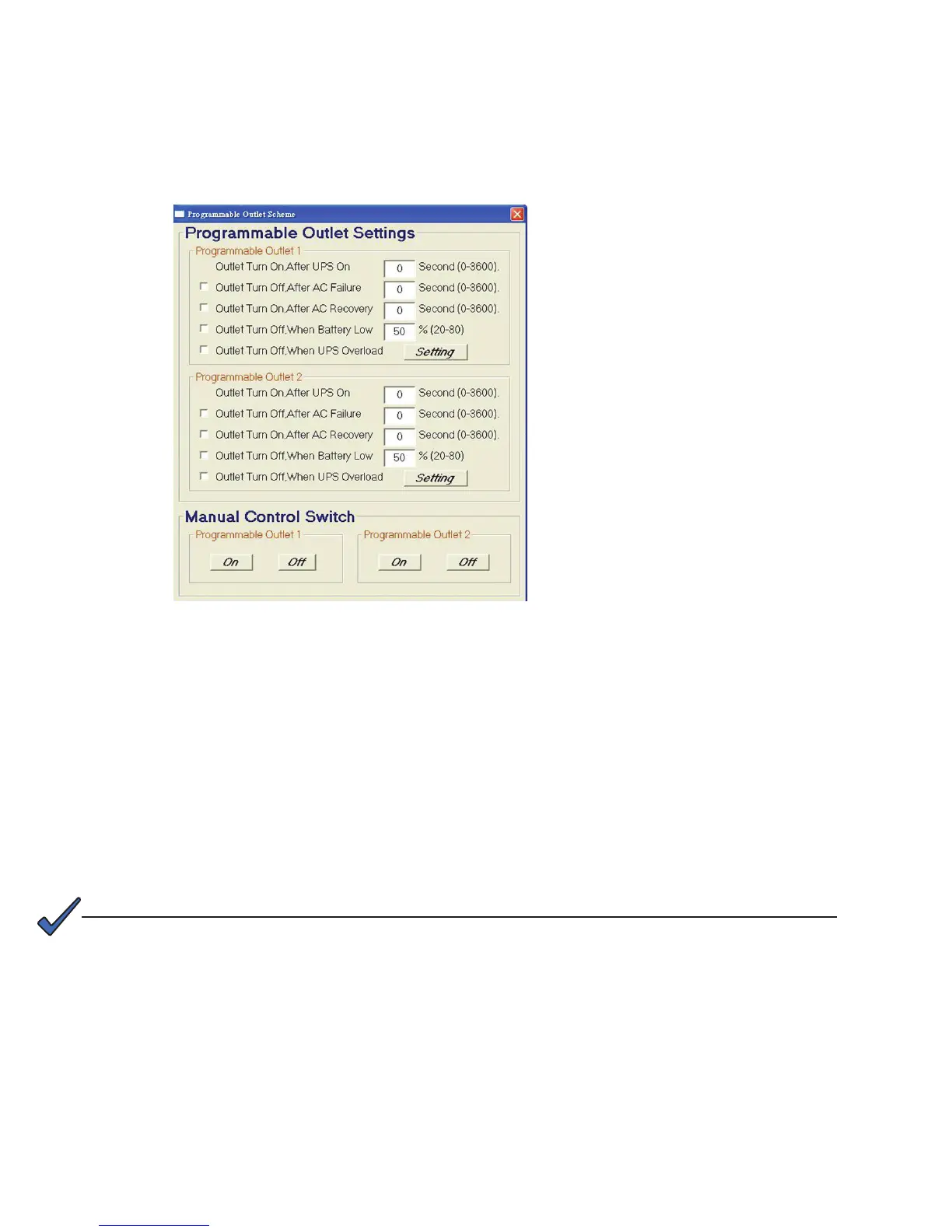

6. Click Programmable outlet setting in the UPS Setting Tool window. The Programmable Outlet
Setting screen appears.
7. Use the following guidelines to set the parameters for the operation of the programmable outlets.
• Outlet Turn On After UPS On – enable the outlet within the time specified when the UPS is powered
on. A value of 0 enables the outlet once the UPS is powered on.
• Outlet Turn Off After AC Failure – disable the outlet within the specified time after utility outage.
• Outlet Turn On After AC Recovered – enable the outlet within the specified time after the utility is
restored.
• Outlet Turn Off When Battery Low - disable the outlet at the specified remaining battery power
capacity(%) during battery mode to disconnect the less critical loads.
• Outlet Turn Off When UPS Overload – disable the outlet during overload condition (bypass mode)
to possibly allow the more critical loads to be continually supplied via Bypass without shut down.
8. Click Setting to save the new parameters. The UPS beeps twice if the new settings are saved
successfully. The setting do not take effect until the system is powered off and on.
Use the On or Off buttons under Manual Control Switch to manually enable or disable the program-
mable outlets, overriding all previous settings.
NOTE:
Restarting the UPS
9. Press the OFF button for 5 seconds. The buzzer sounds twice and the "off" screen displays.
10. Unplug the power cord form the AC power utility receptacle.
11. After three seconds, reconnect the power cord and restart the computer (See Section "5.2.1 Start Up
In Normal Mode" on page 22.)
12. Plug the UPS into the wall receptacle to charge the UPS for at least 4 hours after the initial installation.
