Dipswitch
Functions
Jumper
Positions

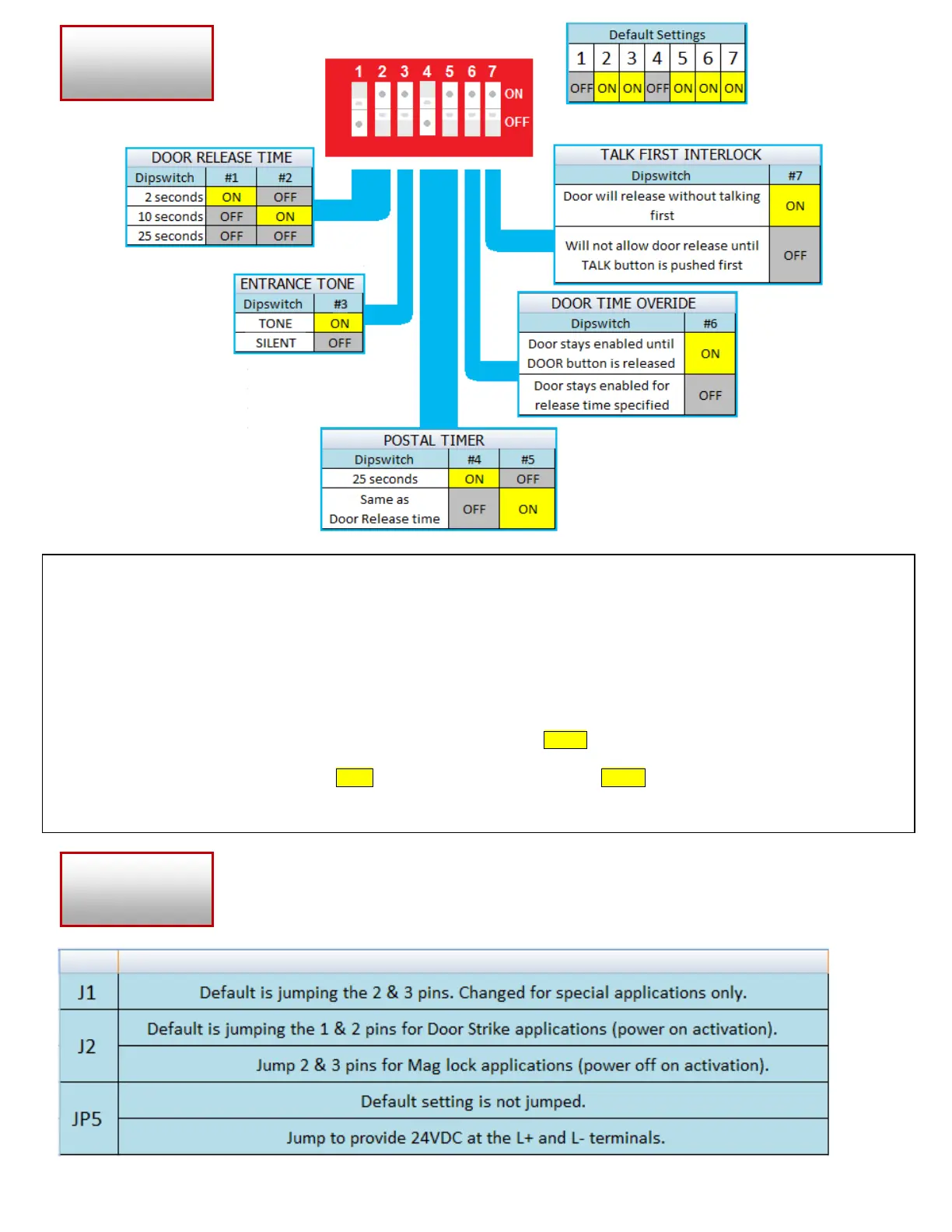

Dipswitches #1 & #2 set the length of door release time for approx. 2, 10, or 25 seconds (See chart above).
Dipswitch #3 will provide a tone at the entrance panel when the call button is pressed.
(you must use ZW as your tone wire to the entry panel).
Dipswitches #4 & #5 allow the Postal Lock to release the door for 25 seconds independent of the #1 & #2 setting.
(works only with 4 wire stations).
Dipswitch #6, when OFF, will only allow the door to release for the time determined by the position of #1 & #2.
If ON, it will continue to stay on past the normal time delay until the DOOR Button is released.
Dipswitch #7 when OFF, will require the TALK button to be pressed before the DOOR Button will release the door.
If ON, the Door release can be activated without talking first.
