Alpha InTec 30C - Page 11

11

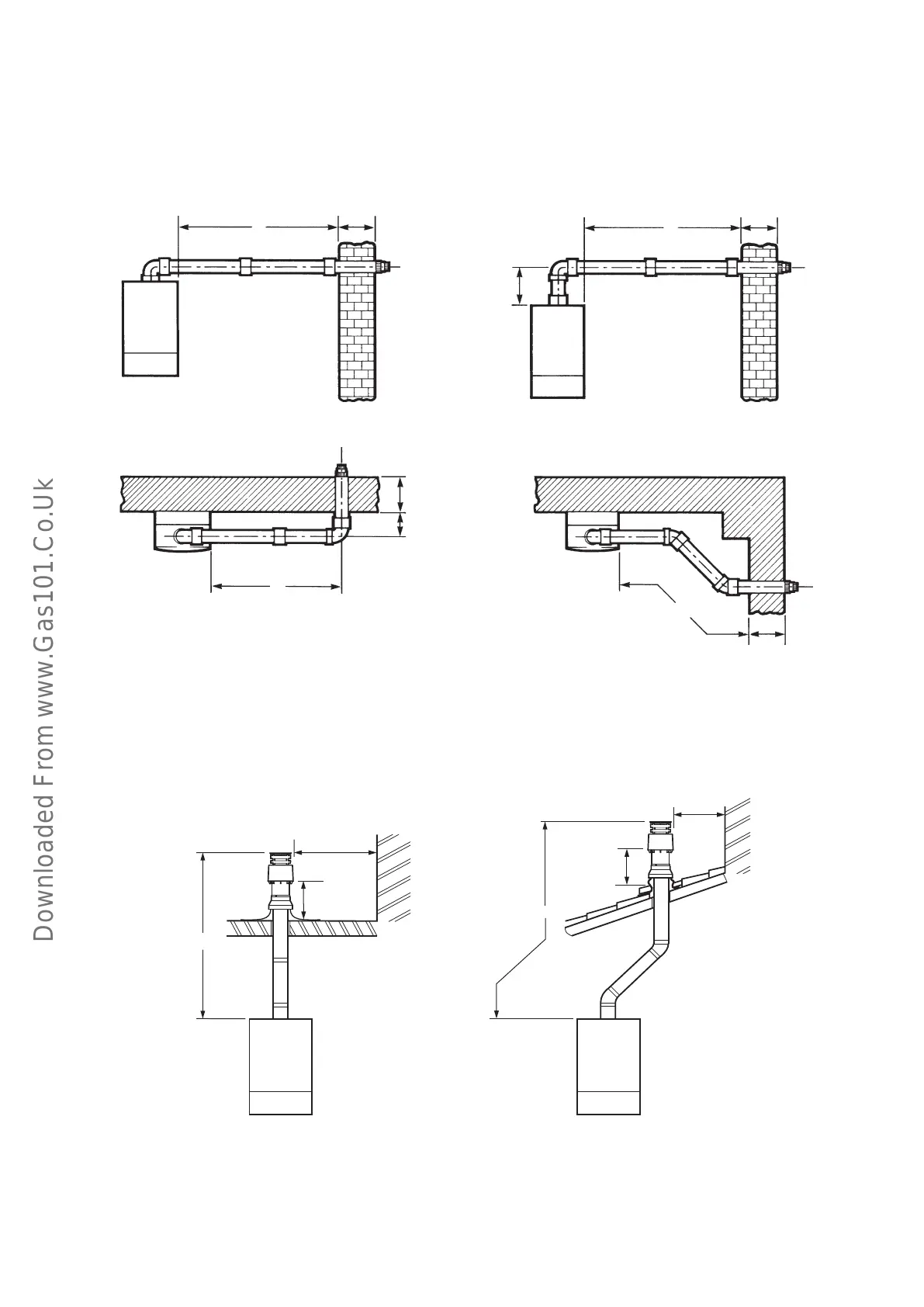

HORIZONTAL FLUE OPTIONS - L
max
= 12 metres
L = B + C + E + 245 mm
Alpha InTec 30C and 34C - General Boiler Information
L = B + C + 245 mm
C
B
E
C
B
E
B
F
B
C
L = B + E + F + 245 mm + (90° bend = 1.3 metre)
(add 45 mm to 'F' if a jig is used)
L = B + C + 245 mm + (2 x 45° bends = 1.8 metre)
Fig. 3.1
VERTICAL FLUE OPTIONS
(245 mm length includes terminal)
Hmax = 15 m Hmax = 13.2 m
Not less than
300 mm
H
Not less than
300 mm
Not less than
300 mm
H
Not less than
300 mm
