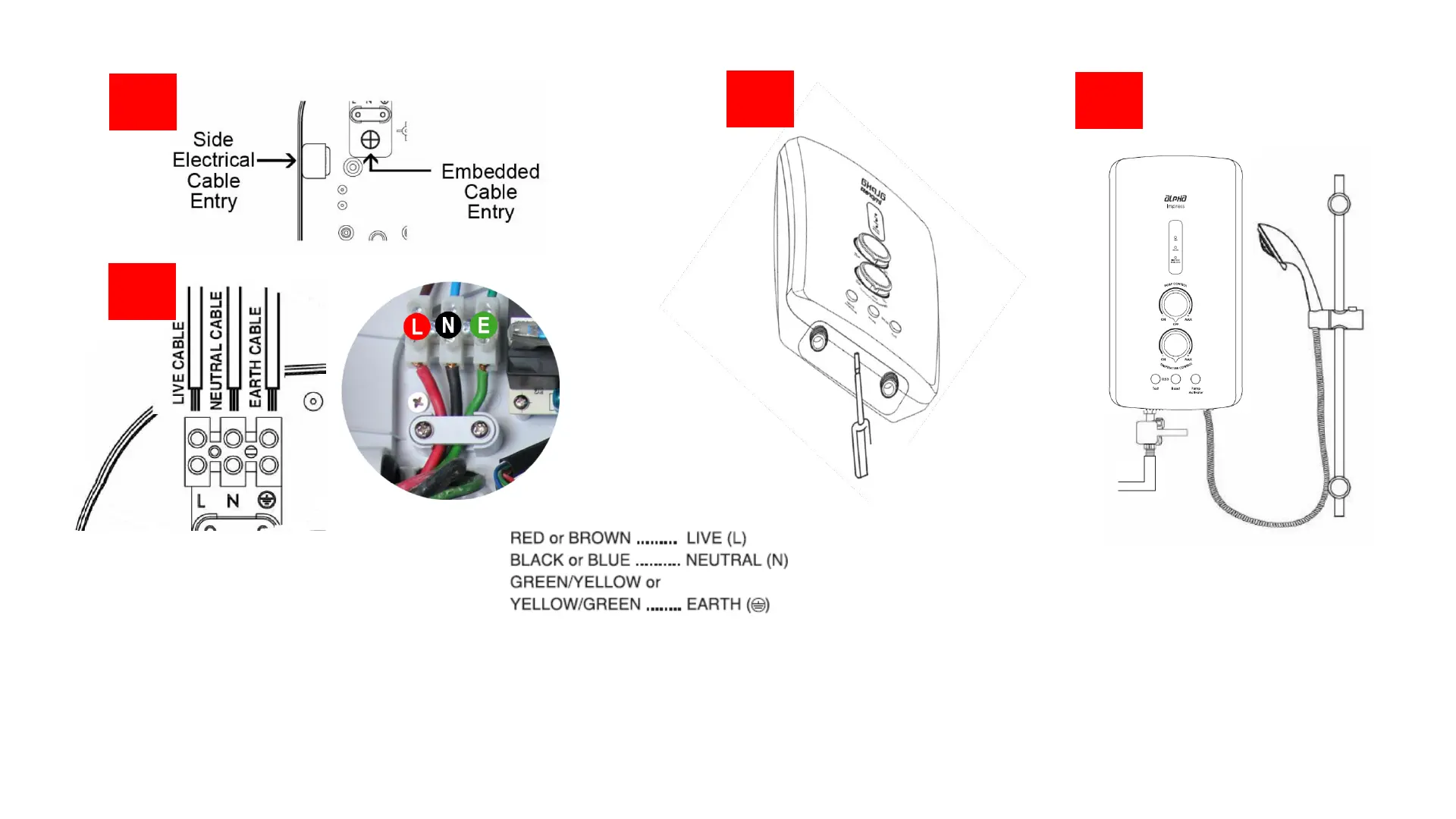

Alpha MULTIPOINT Series - Electrical Wiring and Final Assembly; Cable Entry, Wiring, and Cover Installation

1. You can choose to insert the wires from the side or wall (embedded entry)
2. Make sure the wires are fully tightened and installed as per indicated (Live, Neutral, and Earth)
3. Install the heater cover and fasten the screw.
4. This is how the completed installation looks like.
L
N
E
– Live
– Neutral
– Earth
1
4
2
3
