Drill 3 pilot holes using a 5/32″ (4mm)
diameter drill bit. Make sure the depth
is not less than 2 3/4″ (70mm).
3A-4
3A-3

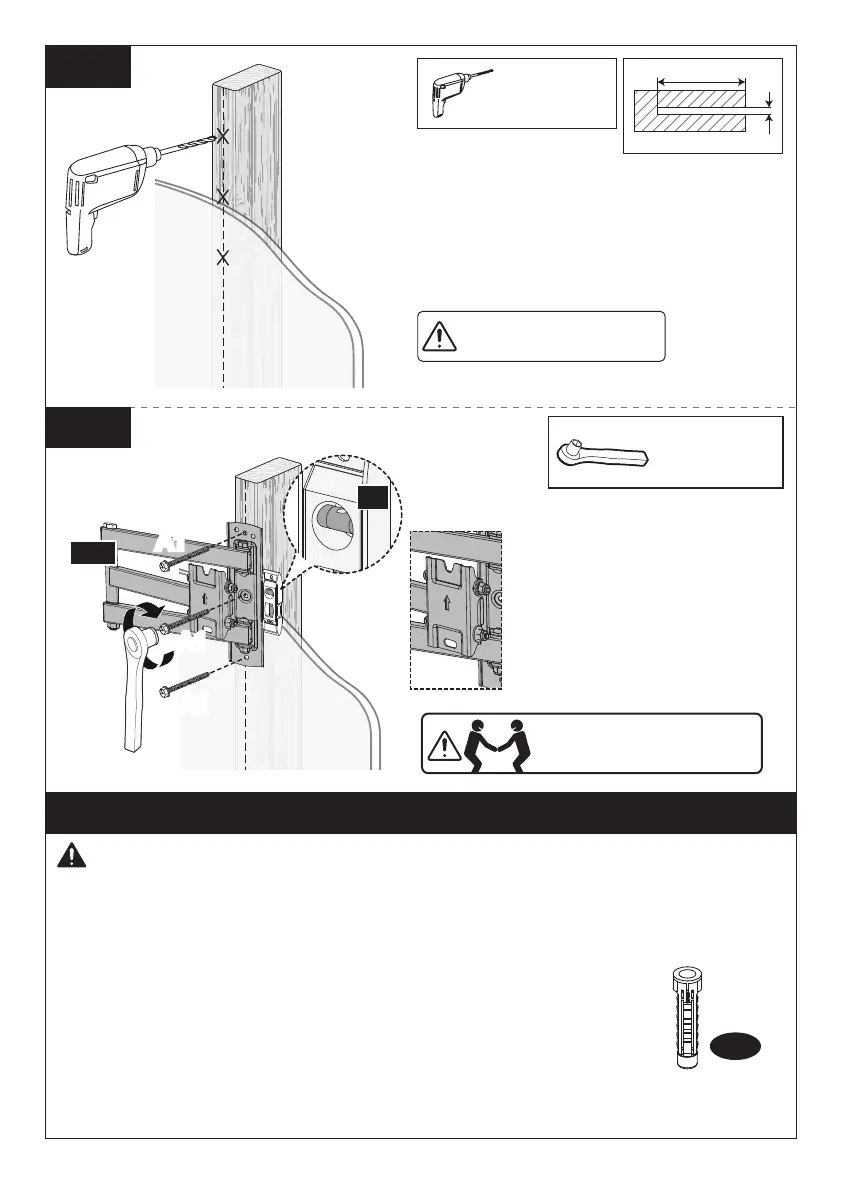

Install the arm assembly /
wall plate [01B] using lag
screws [A1]. Tighten the lag
screws [A1] only until they
are pulled firmly against the
wall plate. DO NOT
over-tighten the lag screws.
5/32″ (4mm)
2 3/4″ (70mm)
7/16″ (11mm)
Socket Wrench
(Not lncluded)
Drill
(Not lncluded)
● Any material covering the wall must not exceed 5/8″ (16mm).
● Mount the wall plate directly onto the concrete surface.
● Minimum solid concrete thickness: 8″ (203mm)
● Never drill into the mortar between bricks.
WARNING:
● Ensure the arm assembly / wall plate [01B] is securely fastened
to the wall before continuing to the next step.
● Avoid personal injury or property damage! DO NOT use a drill for tightening the lag
screws [A1]. Only use a socket wrench. DO NOT over-tighten the lag screws [A1].
Tighten the lag screws [A1] only until they are pulled firmly against the wall plate.
Step 3B Solid Concrete or Brick Walls Installation
Wall
Anchor
A2
HEAVY! You may need
assistance with this step.
NOTE: Be sure to drill into
the center of the studs.
A1A1
A1
A1
A1
A1
01B
07
02 03 04
05 06 07 08 09
10
11 12 13 14
15 16
