3/8″ (10mm)
3″ (75mm)

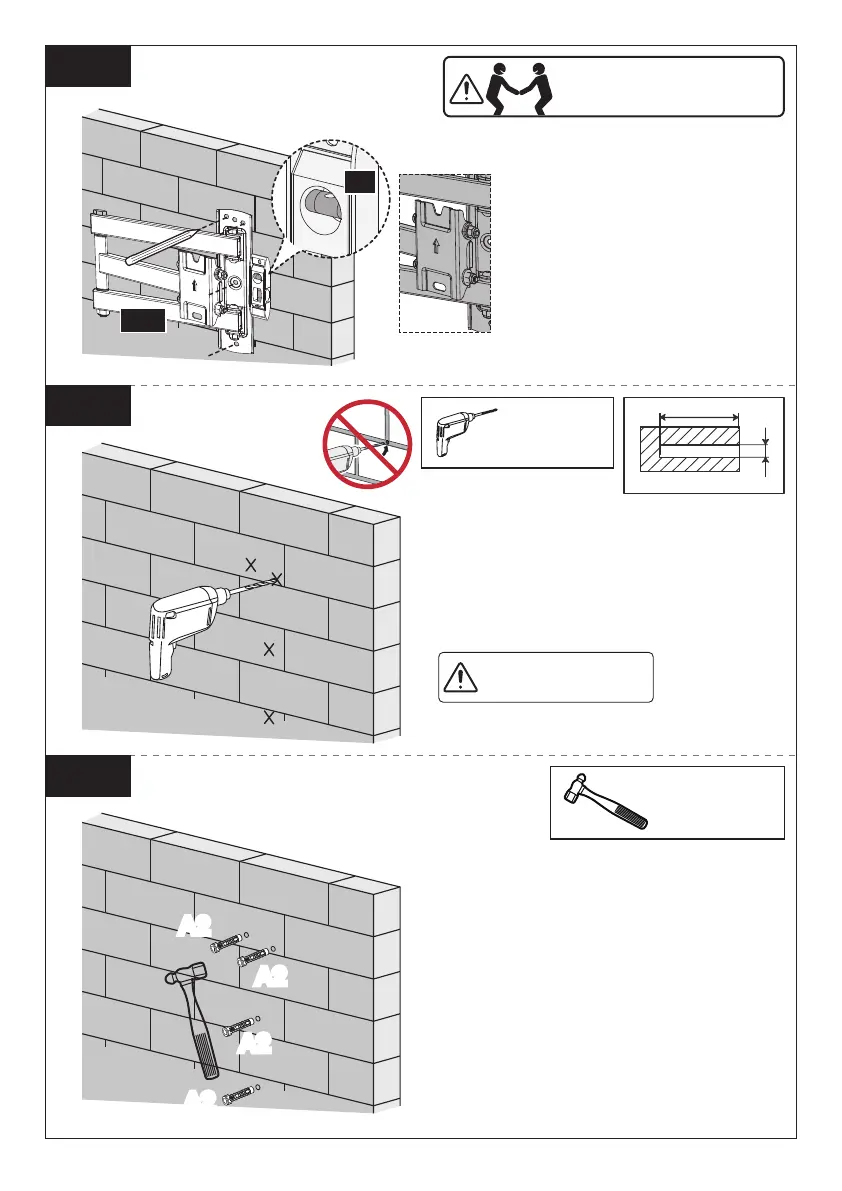

Drill 4 pilot holes using a 3/8″ (10mm)
diameter drill bit. Make sure the depth
is not less than 3″ (75mm). Never drill
into the mortar between bricks.
3B-1
3B-2
3B-3
Use a hammer to tap anchors [A2]
into the wall. Be sure the anchors [A2]
are seated flush with the concrete or
brick surface.
Position arm assembly / wall
plate [01B] at your desired
height. Level the wall plate
and mark the pilot hole
locations.
Hammer
(Not Included)
Drill
(Not lncluded)
HEAVY! You may need
assistance with this step.
NOTE: Be sure to use
the specified drill bit.
A2A2
A2
A2
A2
A2
A2
A2
01B
07
02 03 04
05 06 07 08 09
10 11
12 13 14
15 16
To Next Page
