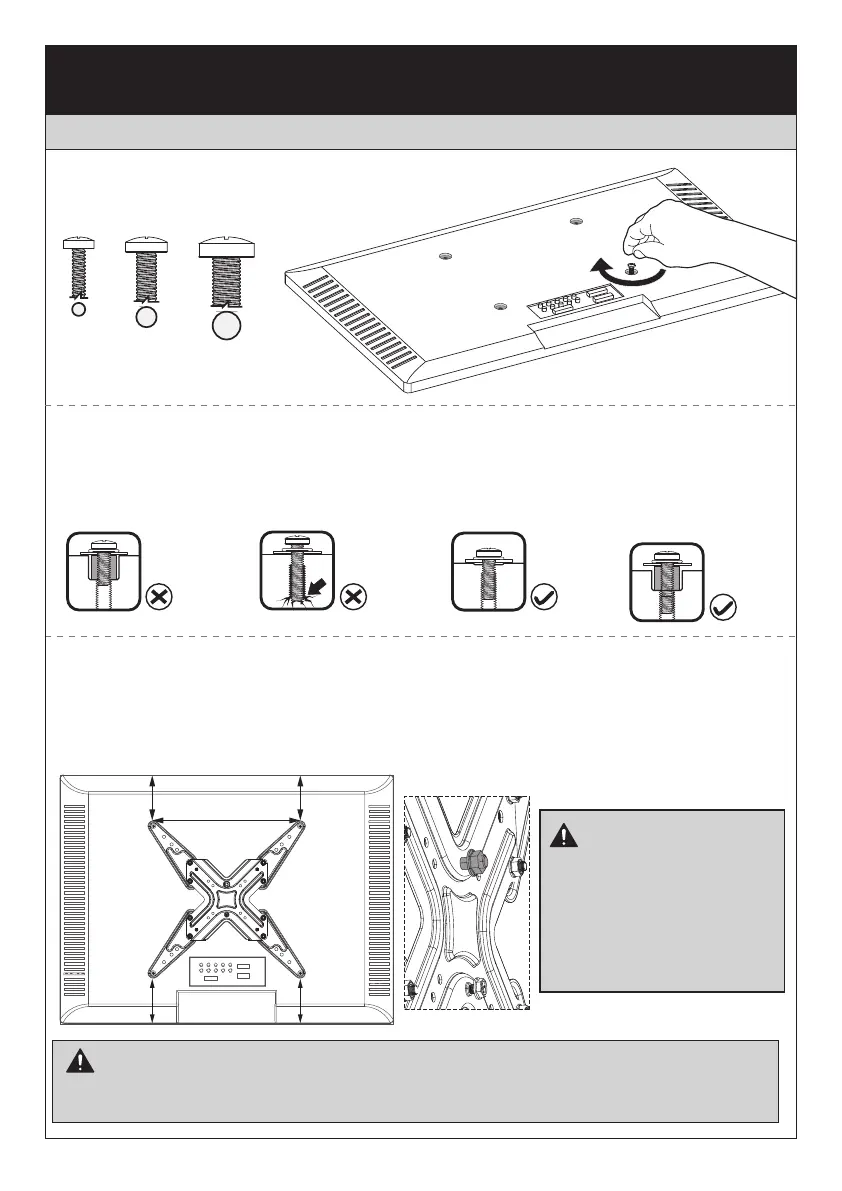

Select TV Bolts
Only one bolt size fits your TV.
Secure the Faceplate or Faceplate with Extender
Brackets to TV
M8M6M4
NOTE: The bolt hole locations on your TV may vary in accordance with the
manufacturer's design of the TV. We are only illustrating possible locations of the
bolt holes.
Bolt length: Verify adequate thread engagement with bolts or bolts/spacers
combination. We recommend thread engagement by at least 5 turns.
-Too short will not hold the TV.
-Too long will damage the TV.
NOTE: When using the spacers, it is important to note that they can be used
in a stacked configuration. If you have any difficulty understanding how to
install the TV bolts or spacers, please email customer service.
Too Short
Correct
Correct
Too Long
Step 2
CAUTION:
Ensure the pre-assembled
nut is pointing to the top
of TV and the faceplate
with extender brackets is
equally centered on the
back of the TV.
02 03 04
05 06
07 08 09
10 11 12 13 14
15 16
