TMX-R1000 / TMX-R1000P ONWERS MANUAL

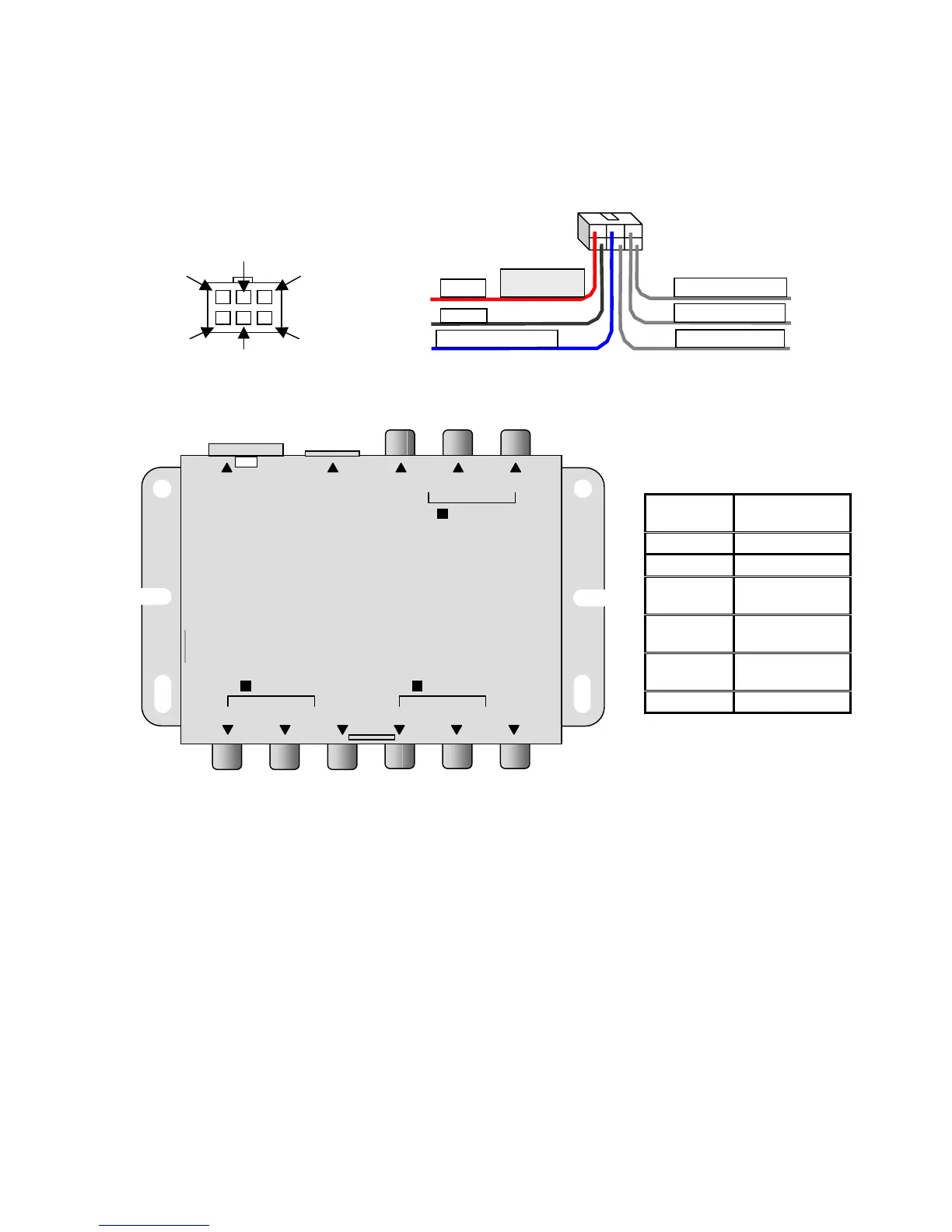

Power Connections
POWER CONT.
a. ACC (Color: Red)
Connect this line to Vehicle’s ACC line.
b. GND (Color: Black)
Connect this line to Vehicle’s Ground.
c. POWER CONT (Color: Blue/White)
Connect this line to ALPINE DVD Player’s ACC Line (Color: Red).
d. REMOTE OUT 1 (Color: White/Brown)
Connect this line to ALPINE DVD Player, TV-Tuner or DVD-HU Remote In.
e. REMOTE OUT 2 (Color: White/Brown)
Connect this line to ALPINE DVD Player, TV-Tuner or DVD-HU Remote In.
f. REMOTE IN (Color: White/Brown)
Connect this line to ALPINE LCD Monitor Remote Out.
SIGNAL
NAME
WIRE COLOR
ACC RED
GND BLACK
POWER
CONT
BLUE/WHITE
REMOTE
OUT1
WHITE/BROWN
REMOTE
OUT2
WHITE/BROWN
REMOTE IN WHITE/BROWN
ACC
GND
REM IN
REM OUT2
REM OUT1
FUSE(3A)
REMOTE OUT2
A
CC
REMOTE OUT1
GND
REMOTE IN
POWER CONT.
POWER SUPPLY
A
UX IN 2
VIDEO R -AUDIO- L
DISPLAY OUT
R -AUDIO- L VIDEO
A
UX OUT
A
UX IN 1
VIDEO R -AUDIO- L
Revision 3 Date 3/16/05
