Alpine CDA-9827 User Manual

36-EN
EQ/DIV
+
;
;
;
!
8
6
5
4
3
1
2
9
7
(
&
%
$
#
"
)
~
,
-
.
Ai-NET
NORM
/
:

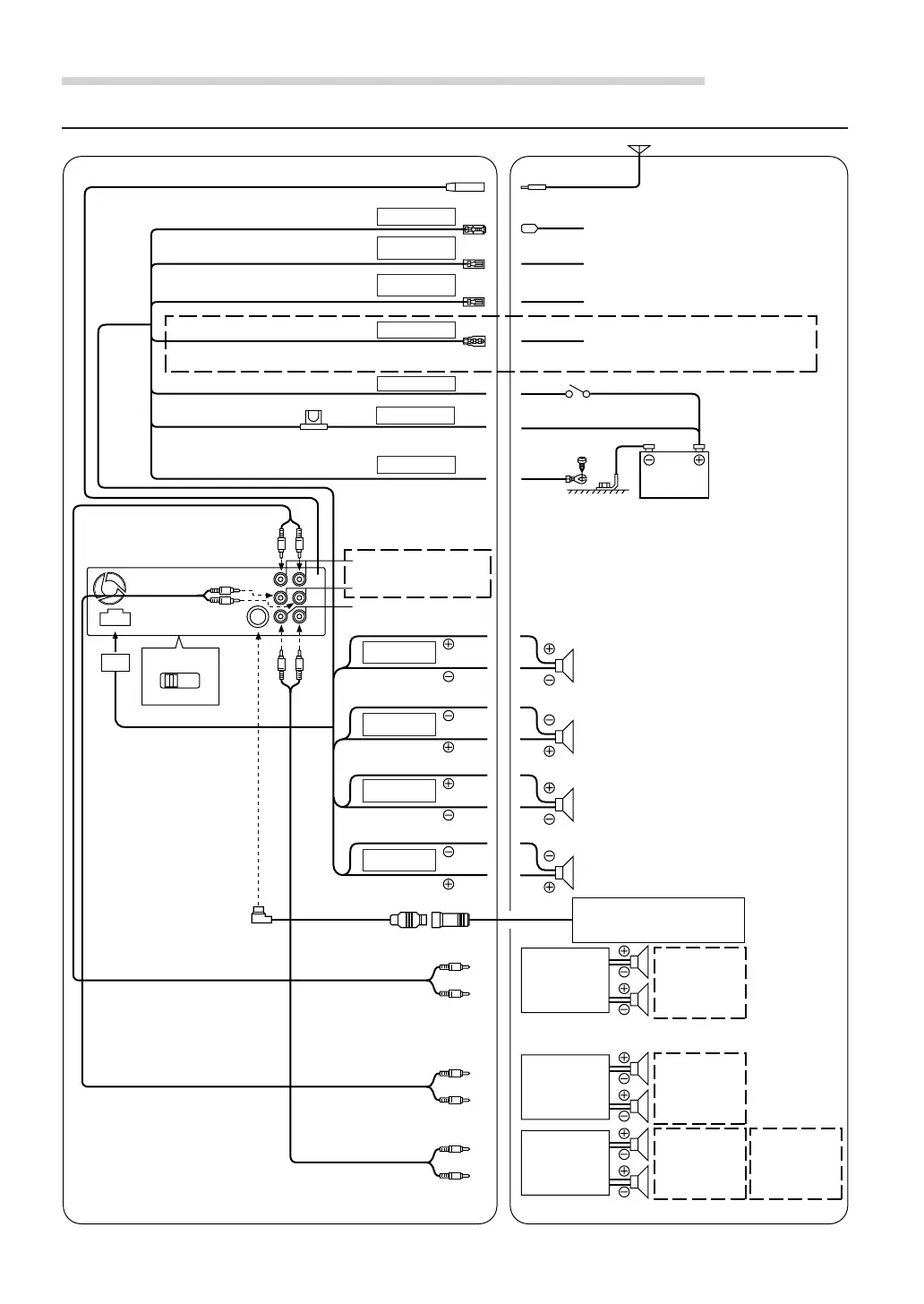

Connections
Subwoofers
(CDA-9827/
CDA-9825 only)
To amplifier or equalizer
Ignition Key
To vehicle phone
To the instrument cluster
illumination lead
Amplifier
Amplifier
Amplifier
Antenna
To power antenna
Battery
Front right
Rear right
Front left
Rear
(CDA-9827/
CDA-9825 only)
Front
(CDA-9827/
CDA-9825 only)
Speakers
Rear left
Blue
Blue/White
Pink/Black
Orange
Red
Yellow
Black
POWER ANT
REMOTE
TURN-ON
AUDIO
INTERRUPT IN
ILLUMINATION
IGNITION
BATTERY
GND
SPEAKER
RIGHT FRONT
SPEAKER
RIGHT REAR
SPEAKER
LEFT REAR
SPEAKER
LEFT FRONT
Gray
Gray/Black
Violet/Black
Violet
Green
Green/Black
White/Black
White
(CDA-9827 only)
Installation and Connections
CD Changer
(Sold Separately)
Rear or
Subwoofers∗
(CDA-9826
only)
(CDA-9827/
CDA-9825 only)
