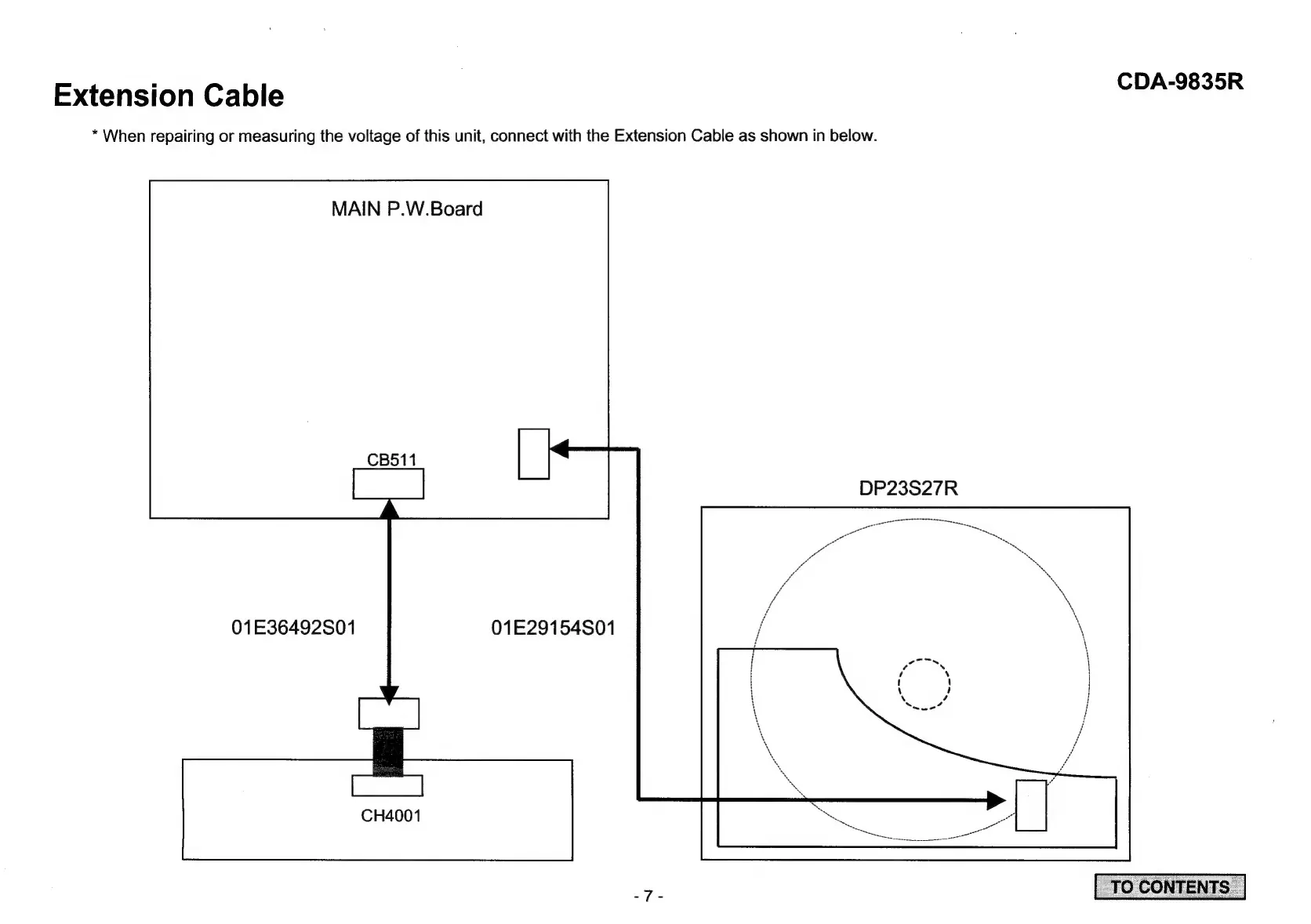

DA-
Extension
Cable
CDA-9835R
*
When
repairing
or
measuring
the
voltage
of
this
unit,
connect
with
the
Extension
Cable
as
shown
in
below.
MAIN
P.W.Board
DP23S27R
01E36492S01
01E29154S01
_TO
CONTENTS
