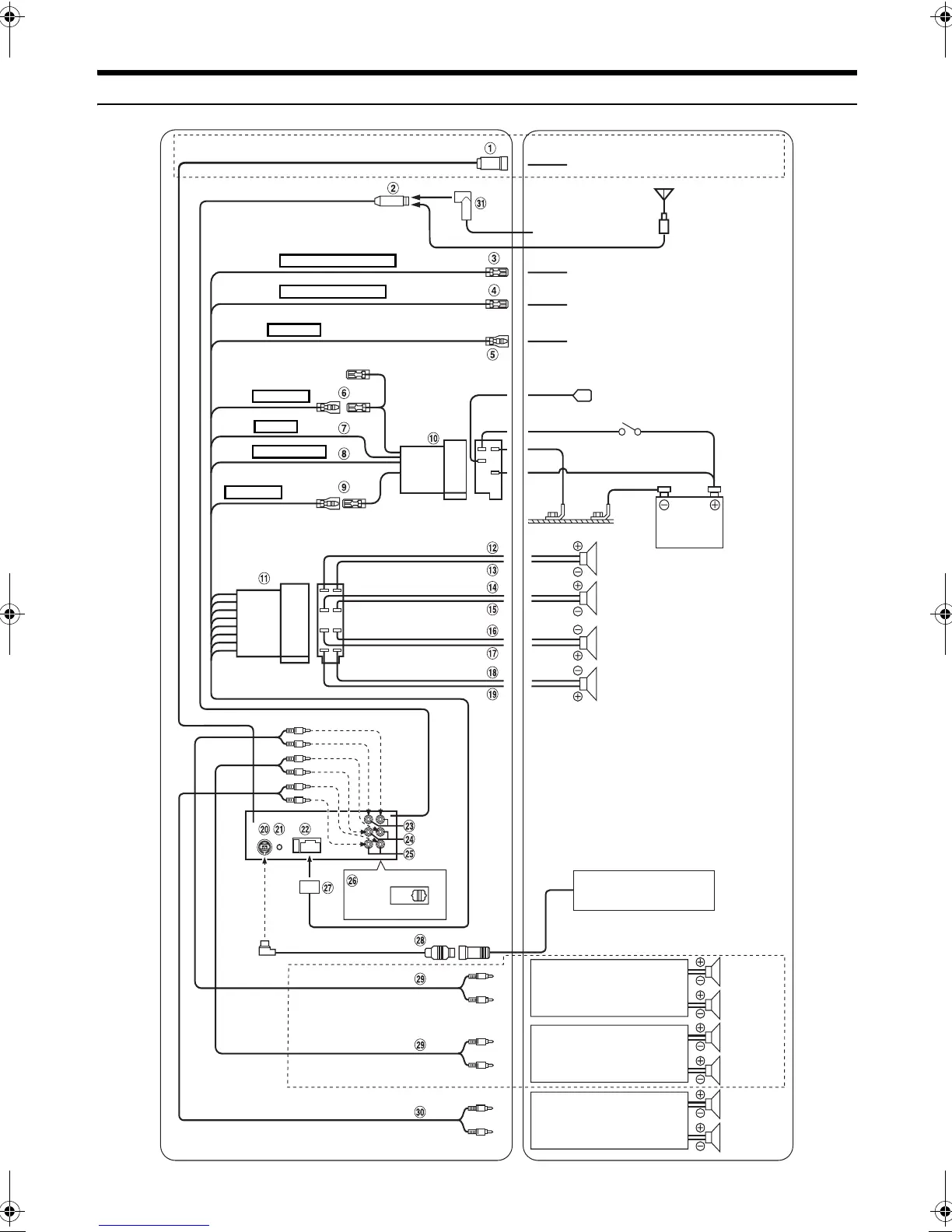

Connections
Ai-NET
∗1
NORMEQ/DIV
Antenna
(Pink/Black) AUDIO INTERRUPT IN
(Blue/White) REMOTE TURN-ON
(Orange) DIMMER
(Red) IGNITION
(Black) GND
(Blue) POWER ANT
BATTERY
(Green)
(Green/Black)
(Gray/Black)
(White/Black)
(Gray)
(Violet/Black)
(Violet)
JASO Antenna Plug
ISO Antenna Plug
To vehicle phone
To amplifier or equalizer
To the instrument cluster
illumination lead
To power antenna
Ignition Key
Battery
Speakers
Rear Left
Front Left
Front Right
Rear Right
CD Changer
(Sold Separately)
Speakers
Amplifier
Amplifier
Amplifier
Front Left
Front Right
Rear Left
Rear Right
Subwoofers
(CDA-9852RB/
CDA-9852RR
is Front or
Subwoofers)
(White)
(Yellow)
(CDA-9854R only)
(wd
,wf CDA-9854R only)
To vehicle Display Interface
(CDA-9854R only)
*
1
The label is attached or the bottom of the unit.
