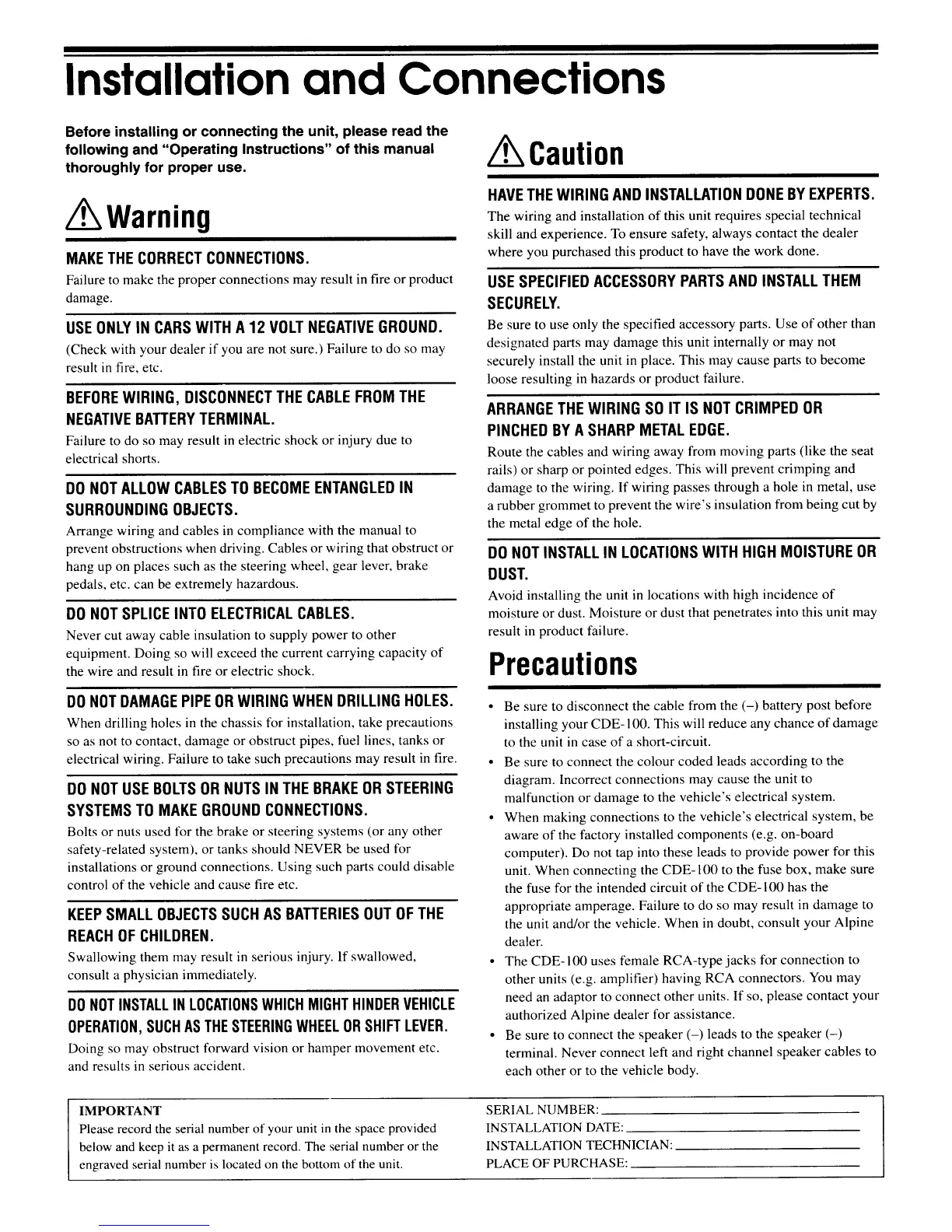

Installation
and
Connections
Before installing or connecting the unit, please read the
following and "Operating Instructions" of this manual
thoroughly for proper use.
LtWarning
MAKE
THE
CORRECT
CONNECTIONS.
Failure to make the proper connections may result
in
fire
or
product
damage.
USE
ONLY
IN
CARS
WITH
A
12
VOLT
NEGATIVE
GROUND.
(Check with your dealer if you are not sure.) Failure to do so may
result
in
fire, etc.
BEFORE
WIRING.
DISCONNECT
THE
CABLE
FROM
THE
NEGATIVE
BATTERY
TERMINAl.
Failure to do so may result
in
electric shock
or
injury due to
electrical shorts.
DO
NOT
ALLOW
CABLES
TO
BECOME
ENTANGLED
IN
SURROUNDING
OBJECTS.
Arrange wiring and cables
in
compliance with the manual to
prevent obstructions when driving. Cables or wiring that obstruct or
hang up on places such as the steering wheel, gear lever, brake
pedals, etc. can be extremely hazardous.
DO
NOT
SPLICE
INTO
ELECTRICAL
CABLES.
Never cut away cable insulation to supply power to other
equipment. Doing so will exceed the current carrying capacity
of
the wire and result in fire or electric shock.
DO
NOT
DAMAGE
PIPE
OR
WIRING
WHEN
DRILLING
HOLES.
When drilling holes
in
the chassis for installation, take precautions
so
as
not to contact, damage or obstruct pipes, fuel lines, tanks or
electrical wiring. Failure to take such precautions may result
in
fire.
DO
NOT
USE
BOLTS
OR
NUTS
IN
THE
BRAKE
OR
STEERING
SYSTEMS
TO
MAKE
GROUND
CONNECTIONS.
Bolts or nuts used for the brake
or
steering systems (or any other
safety-related system), or tanks should NEVER
be used for
installations or ground connections. Using such parts could disable
control
of
the vehicle and cause fire etc.
KEEP
SMALL
OBJECTS
SUCH
AS
BATTERIES
OUT
OF
THE
REACH
OF
CHILDREN.
Swallowing them may result
in
serious injury. If swallowed,
consult a physician immediately.
DO
NOT
INSTALL
IN
LOCATIONS
WHICH
MIGHT
HINDER
VEHICLE
OPERATION,
SUCH
AS
THE
STEERING
WHEEL
OR
SHIFT
LEVER.
Doing so may obstruct forward vision or hamper movement etc.
and results
in
serious accident.
IMPORTANT
Please record
the
serial number of your unit
in
the
space provided
below and keep
it
as
a permanent record. The serial number or the
engraved serial number
is
located
on
the
bottom of
the
unit.
LtCaution
HAVE
THE
WIRING
AND
INSTALLATION
DONE
BY
EXPERTS.
The wiring and installation
of
this unit requires special technical
skill and experience. To ensure safety, always contact the dealer
where you purchased this product to have the work done.
USE
SPECIFIED
ACCESSORY
PARTS
AND
INSTAll
THEM
SECURELY.
Be sure to use only the specified accessory parts. Use
of
other
than
designated parts may damage this unit internally or may not
securely install the unit
in
place. This may cause parts to become
loose resulting
in
hazards or product failure.
ARRANGE
THE
WIRING
SO
IT
IS
NOT
CRIMPED
OR
PINCHED
BY
A
SHARP
METAL
EDGE.
Route the cables and wiring away from moving parts (like the seat
rails) or sharp
or
pointed edges. This will prevent crimping and
damage to the wiring.
If
wiring passes through a hole
in
metal. use
a rubber grommet to prevent the wire's insulation from being cut by
the metal edge
of
the hole.
DO
NOT
INSTALL
IN
LOCATIONS
WITH
HIGH
MOISTURE
OR
DUST.
Avoid installing the unit
in
locations with high incidence
of
moisture or dust. Moisture or dust that penetrates into this unit may
result
in
product failure.
Precautions
• Be sure to disconnect the cable from the
(-)
battery post before
installing your CDE-I00. This will reduce any chance
of
damage
to the unit
in
case
of
a short-circuit.
• Be sure to connect the colour coded leads according
to the
diagram. Incorrect connections may cause the unit to
malfunction or damage to the vehicle's electrical system.
• When making connections to the vehicle's electrical system, be
aware
of
the factory installed components (e.g. on-board
computer). Do not tap into these leads to provide power for this
unit. When connecting the CDE-I
00
to the fuse box, make sure
the fuse for the intended circuit
of
the CDE-I
00
has the
appropriate amperage. Failure to do so may result
in
damage to
the unit and/or the vehicle. When
in
doubt, consult your Alpine
dealer.
• The CDE-I00 uses female RCA-type jacks for connection to
other units (e.g. amplifier) having RCA connectors.
You
may
need an adaptor to connect other units.
If
so, please contact your
authorized Alpine dealer for assistance.
• Be sure to connect the speaker
(-)
leads to the speaker
(-)
terminal. Never connect left and right channel speaker cables
to
each other or to the vehicle body.
SERIAL NUMBER: _
INSTALLATION DATE: _
INSTALLATION TECHNICIAN: _
PLACE OF PURCHASE: _
