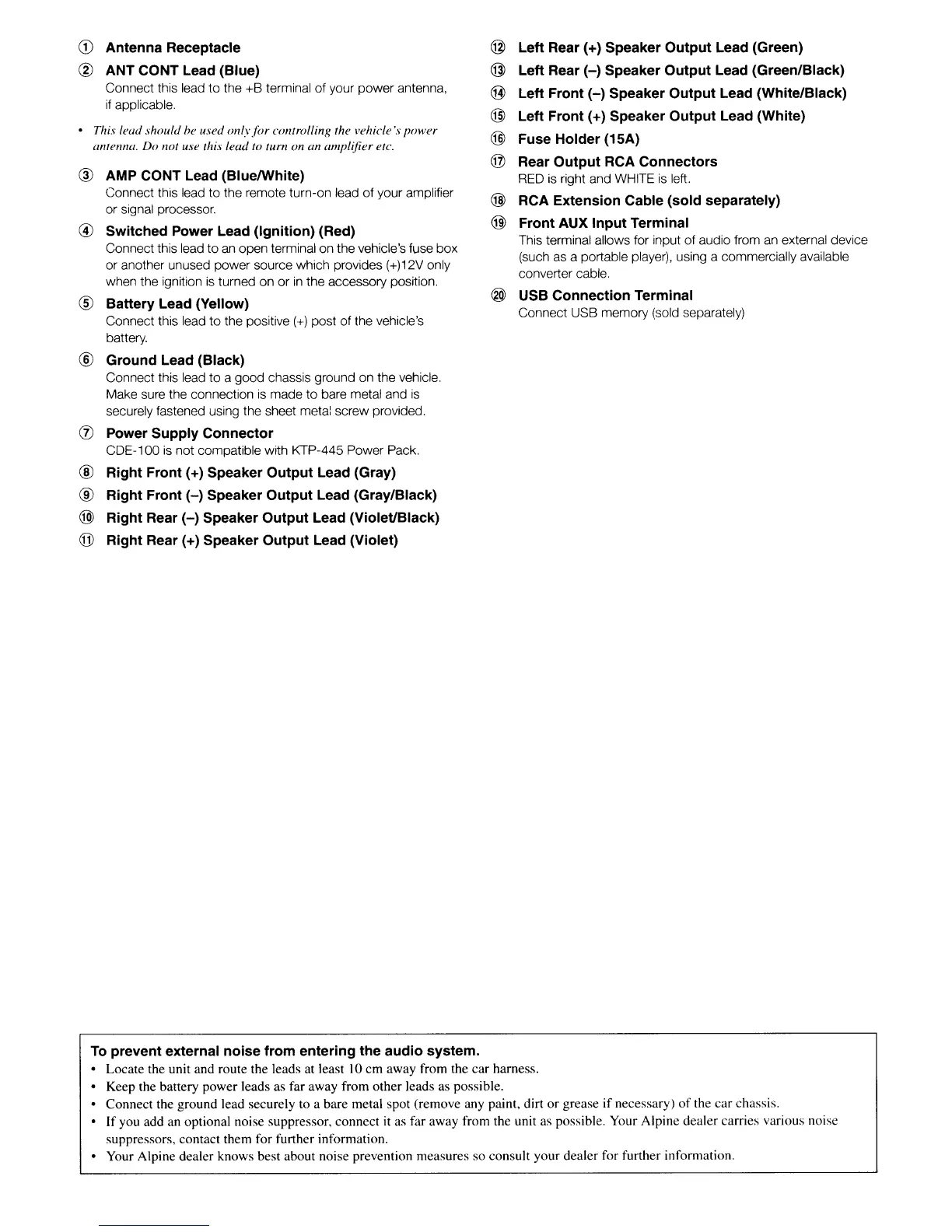

Antenna Receptacle
® ANT CONT Lead (Blue)
Connect this lead to the +B terminal
of
your power antenna,
if applicable.
• This lead
should
he
used
only/or
control/inl? the vehicle'.r
power
alllellna. Do
nOI
use Ihis lead
10
lum
on an amplifier
elC.
@ AMP CONT Lead (BluelWhite)
Connect this lead to the remote turn-on lead
of
your amplifier
or signal processor.
@ Switched Power Lead (Ignition) (Red)
Connect this lead to
an
open terminal on the vehicle's fuse box
or another unused power source which provides (+)12V only
when the ignition
is
turned on
or
in
the accessory position.
® Battery Lead (Yellow)
Connect this lead to the positive
(+)
post of the vehicle's
battery.
® Ground Lead (Black)
Connect this lead to a good chassis ground on the vehicle.
Make sure the connection
is
made
to
bare metal and
is
securely fastened using the sheet metal screw provided.
(j) Power Supply Connector
CDE-100
is
not compatible with KTP-445 Power Pack.
@ Right Front (+) Speaker Output Lead (Gray)
® Right Front H Speaker Output Lead (Gray/Black)
@>
Right Rear H Speaker Output Lead (Violet/Black)
@ Right Rear (+) Speaker Output Lead (Violet)
@ Left Rear (+) Speaker Output Lead (Green)
@ Left Rear
(-)
Speaker Output Lead (Green/Black)
@ Left Front H Speaker Output Lead (White/Black)
@ Left Front (+) Speaker Output Lead (White)
@ Fuse Holder (15A)
@ Rear Output RCA Connectors
RED
is right and WHITE
is
left.
@ RCA Extension Cable (sold separately)
@ Front AUX Input Terminal
This terminal allows for input
of
audio from
an
external device
(such as a portable player), using a commercially available
converter cable.
@)
USB Connection Terminal
Connect USB memory (sold separately)
To
prevent external noise from entering the audio system.
• Locate the unit and route the leads at least
10
cm away from the car harness.
• Keep the battery power leads as far away from other leads as possible.
• Connect the ground lead securely
to
a bare metal spot (remove any paint, dirt
or
grease if necessary)
of
the car chassis.
•
If
you add
an
optional noise suppressor, connect
it
as far away from the unit as possible. Your Alpine dealer carries various noise
suppressors, contact them for further information.
• Your Alpine dealer knows best about noise prevention measures so consult your dealer for further information.
