Alpine CDE-134BT - Wiring and Connection Procedures

41-EN

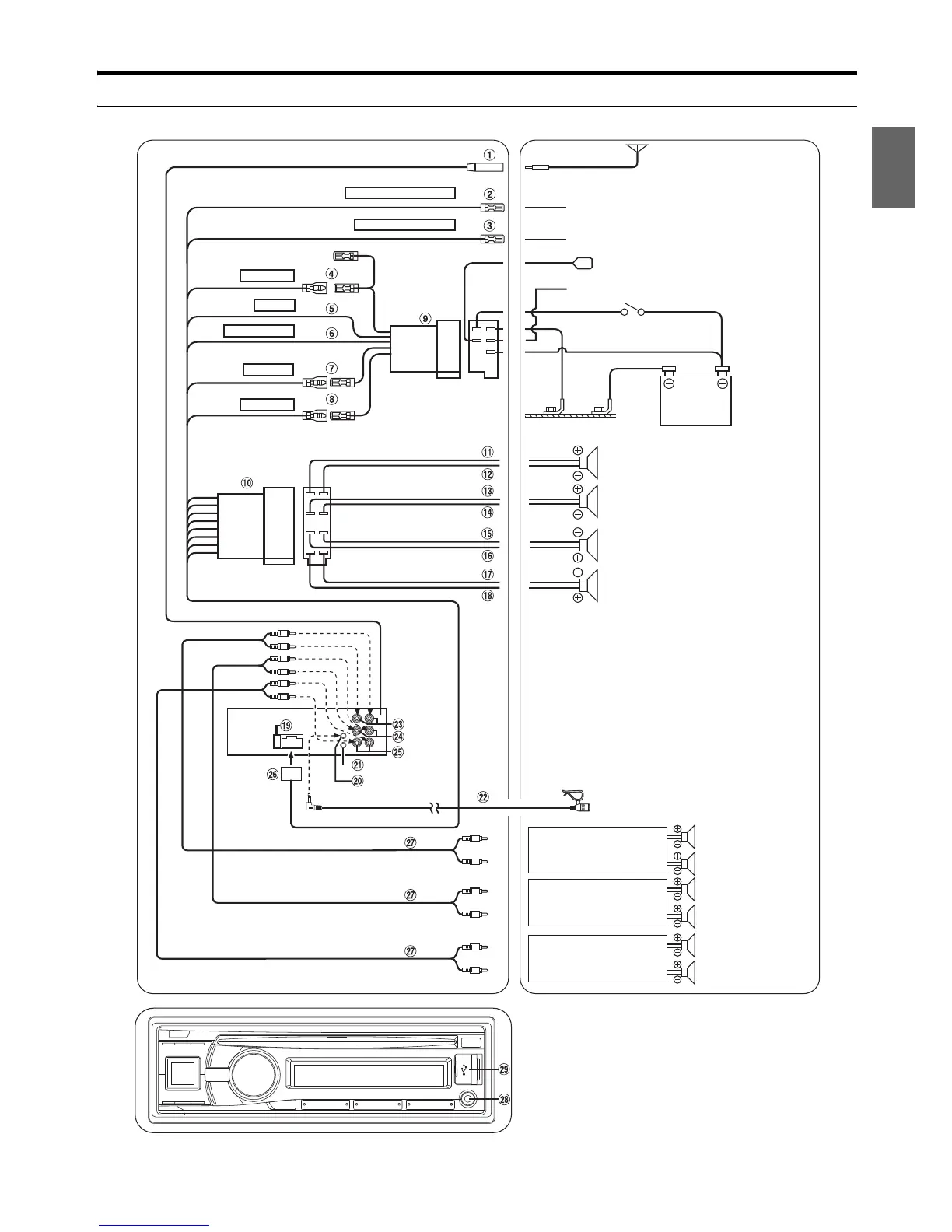

Connections
AUDIO INTERRUPT IN
REMOTE TURN-ON
IGNITION
GND
POWER ANT
DIMMER
BATTERY
Antenna
Microphone
(Pink/Black)
Not used
(Blue/White)
To amplier
To the instrument cluster illumination lead
(Red)
To power antenna
(Black)
Ignition Key
(Blue)
(Orange)
(Yellow)
Battery
Speakers
(Green)
Rear Left
(Green/Black)
(White)
Front Left
(White/Black)
(Grey/Black)
Front Right
(Grey)
(Violet/Black)
Rear Right
(Violet)
Speakers
Rear Left
Amplier
Rear Right
Front Left
Amplier
Front Right
Amplier
Subwoofers
