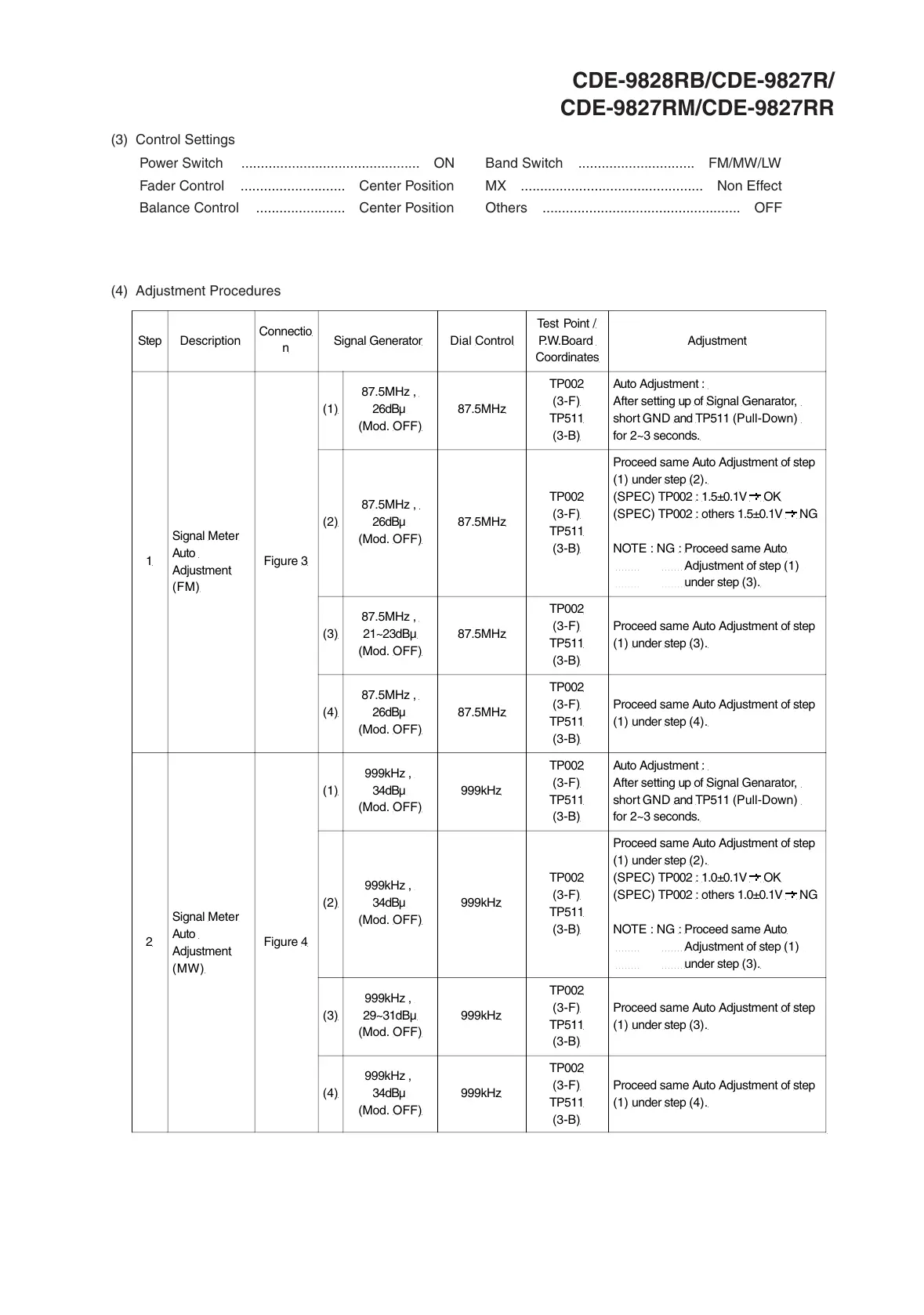

(3) Control Settings
Power Switch .............................................. ON Band Switch .............................. FM/MW/LW
Fader Control ........................... Center Position MX ............................................... Non Effect
Balance Control ....................... Center Position Others ................................................... OFF
(4) Adjustment Procedures
Step
Description
Connectio
n
Signal Generator
Dial Control
Test Point /
P.W.Board
Coordinates
Adjustment
1
Signal Meter
Auto
Adjustment
(FM)
Figure 3
(1)
87.5MHz ,
26dBµ
(Mod. OFF)
87.5MHz
TP002
(3-F)
TP511
(3-B)
Auto Adjustment :
After setting up of Signal Genarator,
short GND and TP511 (Pull-Down)
for 2~3 seconds.
(2)
87.5MHz ,
26dBµ
(Mod. OFF)
87.5MHz
TP002
(3-F)
TP511
(3-B)
Proceed same Auto Adjustment of step
(1) under step (2).
(SPEC) TP002 : 1.5±0.1V OK
(SPEC) TP002 : others 1.5±0.1V NG
NOTE : NG : Proceed same Auto
Adjustment of step (1)
under step (3).
(3)
87.5MHz ,
21~23dBµ
(Mod. OFF)
87.5MHz
TP002
(3-F)
TP511
(3-B)
Proceed same Auto Adjustment of step
(1) under step (3).
(4)
87.5MHz ,
26dBµ
(Mod. OFF)
87.5MHz
TP002
(3-F)
TP511
(3-B)
Proceed same Auto Adjustment of step
(1) under step (4).
2
Signal Meter
Auto
Adjustment
(MW)
Figure 4
(1)
999kHz ,
34dBµ
(Mod. OFF)
999kHz
TP002
(3-F)
TP511
(3-B)
Auto Adjustment :
After setting up of Signal Genarator,
short GND and TP511 (Pull-Down)
for 2~3 seconds.
(2)
999kHz ,
34dBµ
(Mod. OFF)
999kHz
TP002
(3-F)
TP511
(3-B)
Proceed same Auto Adjustment of step
(1) under step (2).
(SPEC) TP002 : 1.0±0.1V OK
(SPEC) TP002 : others 1.0±0.1V NG
NOTE : NG : Proceed same Auto
Adjustment of step (1)
under step (3).
(3)
999kHz ,
29~31dBµ
(Mod. OFF)
999kHz
TP002
(3-F)
TP511
(3-B)
Proceed same Auto Adjustment of step
(1) under step (3).
(4)
999kHz ,
34dBµ
(Mod. OFF)
999kHz
TP002
(3-F)
TP511
(3-B)
Proceed same Auto Adjustment of step
(1) under step (4).
CDE-9828RB/CDE-9827R/
CDE-9827RM/CDE-9827RR
